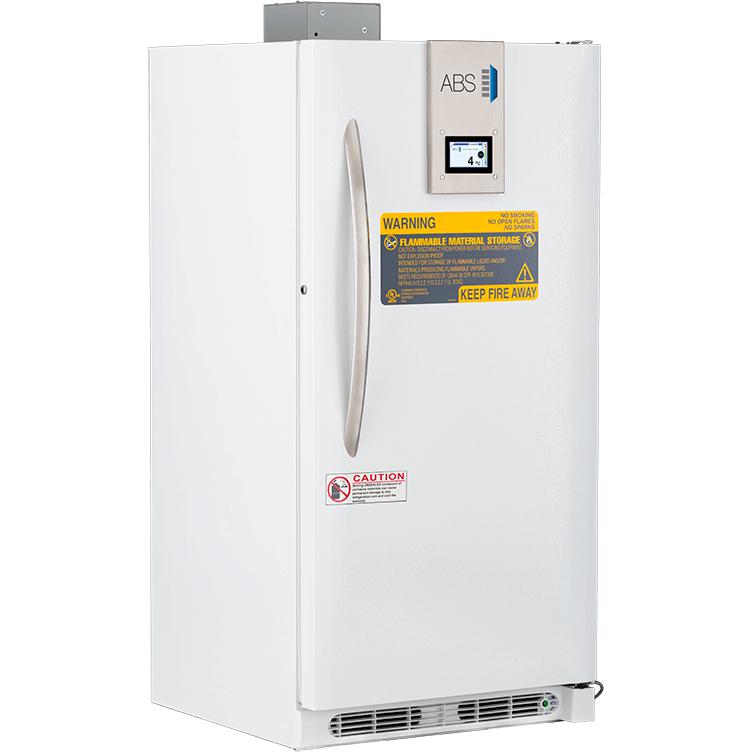

ABS TempLog Premier Flammable Storage Refrigerators

ABS TempLog Premier Flammable Storage Refrigerators meet NFPA and OSHA guidelines 45 and 70 for the refrigerated storage of flammable (volatile) materials in general laboratory work areas. These units feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies.

The touchscreen temperature display and alarm module offers the latest in advanced temperature control and data logging. Industry-leading product security with a monitoring and alarm system that is 100% independent of the temperature controller. There are no electrical components located in the interior of the unit and the compressor’s electrical components have been sealed in a vapor-proof enclosure for additional safety.

Warnings

• These units are not designed for use in environments where volatile/ explosive conditions could potentially exist.
• All products are designed to operate in ambient room temperatures not to exceed 75°F/50% RH (relative humidity). Failure to maintain these conditions may result in operational and/or performance issues.

Features

• Microprocessor temperature controller
• Refrigerator adjustable operating temperature range: 1°C to 10°C
• Touchscreen Digital Temperature Display and Alarm Module with battery back-up to support temperature monitoring and alarms
• Password-protected control panel
• Sample simulated digital temperature display; .1° Resolution, adjustable temperature display in Celsius or Fahrenheit
• Active temperature scale bar display
• Resettable 1-point min/max history
• Digital 24-hour temperature chart
• Temperature data logging
• USB port for data transfer and software updates
• Real-time operational display clock
• 4-20mA output
• Electronic troubleshooting guide
• Electronic QR Code to access Owner’s Manual & technical support contact information
• Adjustable alarm volume
• Audible and visual high/low temperature alarms
• Sensor error alarm
• Power failure alarm
• Door ajar alarm
• CFC-free refrigerant, foam insulation and packaging
• Three year parts and labor warranty
• Refrigerator defrost: Cycle
• UL/C-UL listed
• Units meet NFPA guidelines 45 and 70
• Low battery alarm
• Operation indicator
• Alarm validation (audible, visual, and remote alarm)
• Alarm mute with ring back
• Remote alarm contacts
• Keyed door lock
• Magnetic door gasket for positive seal
• Heavy duty stainless steel door handle
• Leveling legs
• One probe access port (3/8")
• White textured cabinet and door
• High density urethane foam cabinet and door insulation
