Adapters, Airfree, 15mm O-Ring Joints, Schlenk
$35
and up

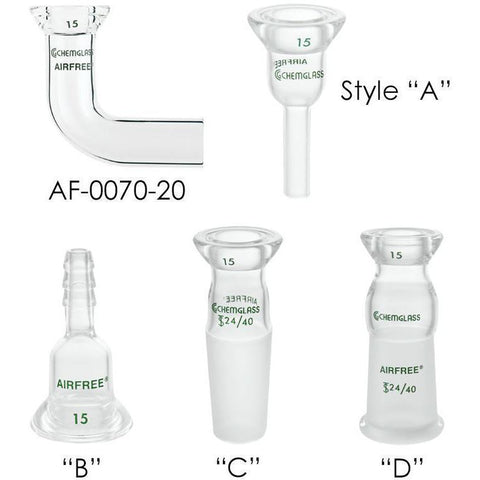

| SKU | Description | Style | Connection | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|
| AF-0070-01 | Adapter, 15mm O-ring Joint, Airfree, Schlenk | "A" | to 3/8" OD Straight Glass | 1 Each | $35 | |
| AF-0070-02 | Adapter, 15mm O-ring Joint, Airfree, Schlenk | "A" | to 1/4" OD Straight Glass | 1 Each | $35 | |
| AF-0070-03 | Adapter, 15mm O-ring Joint, Airfree, Schlenk | "A" | to 3/4" OD Straight Glass | 1 Each | $35 | |
| AF-0070-04 | Adapter, 15mm O-ring Joint, Airfree, Schlenk | "A" | to 1" OD Straight Glass | 1 Each |
|
|
| AF-0070-05 | Adapter, 15mm O-ring Joint, Airfree, Schlenk | "B" | to 10mm Serrated Hose | 1 Each | $35 | |
| AF-0070-06 | Adapter, 15mm O-ring Joint, Airfree, Schlenk | "B" | to 11mm Serrated Hose | 1 Each | $38 | |
| AF-0070-07 | Adapter, 15mm O-ring Joint, Airfree, Schlenk | "B" | to 16mm Serrated Hose | 1 Each | $40 | |
| AF-0070-08 | Adapter, 15mm O-ring Joint, Airfree, Schlenk | "C" | to 14/20 Inner Joint | 1 Each | $48 | |
| AF-0070-09 | Adapter, 15mm O-ring Joint, Airfree, Schlenk | "C" | to 24/40 Inner Joint | 1 Each |
|
|
| AF-0070-10 | Adapter, 15mm O-ring Joint, Airfree, Schlenk | "D" | to 14/20 Outer Joint | 1 Each |
|
|
| AF-0070-11 | Adapter, 15mm O-ring Joint, Airfree, Schlenk | "D" | to 24/40 Outer Joint | 1 Each |
|
|
| AF-0070-20 | Adapter, 15mm O-ring Joint, Airfree, Schlenk | --- | to 3/4" tubing, bent 90° | 1 Each |
|
Description

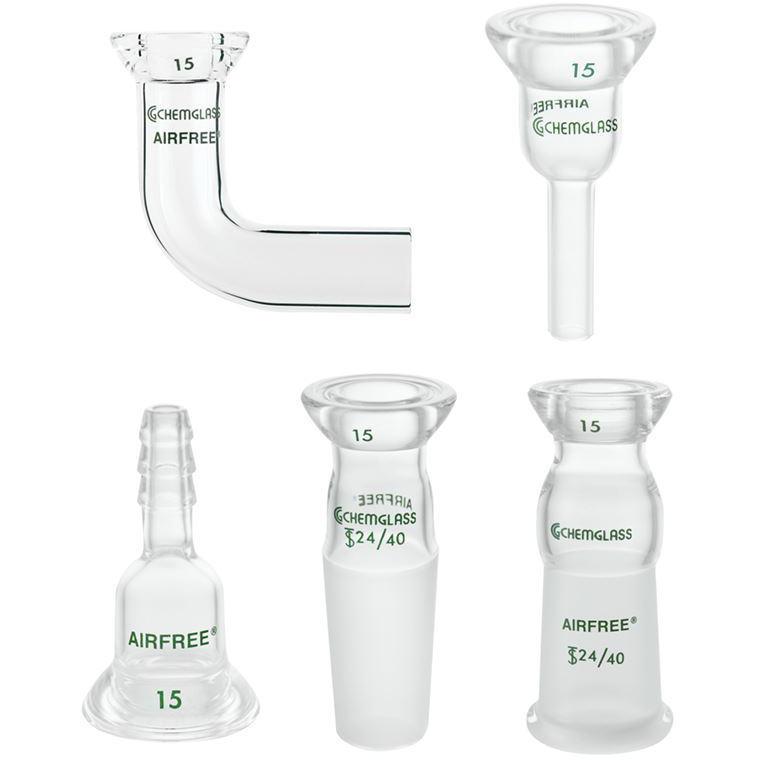

Adapters for use with AF-0060 thru AF-0062 vacuum manifolds that permit the manifold to be utilized with a multitude of standard glassware or tubing products. The AF-0070 adapters are to be used with either a Cajon® fitting on the main ports or at the ends of the manifold with heavy wall rubber vacuum tubing. Serrated hose connection adapters list the OD of the hose connection at the middle ring. Each adapter is supplied complete with one #116 Viton o-ring. Adapters are to be attached to the manifold via a CG-150-05 S.S. pinch clamp.
