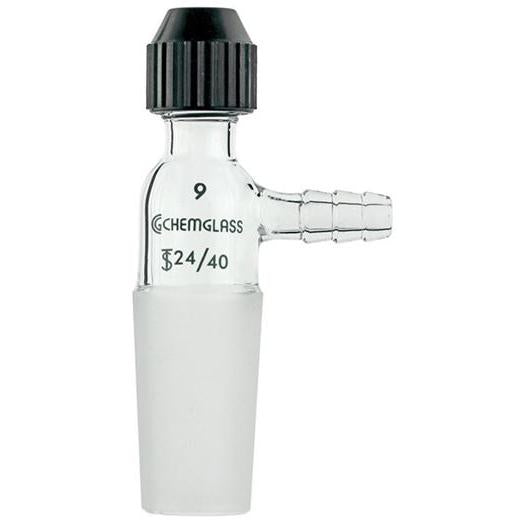

Adapters, Universal, Inlet, with Hose Connections
$61
$53
and up
| SKU | Description | Inner Joint | Threading | Fits | Hose Connection OD | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
| CG-1045-01 | Universal Adapter, Inlet, with Hose Connections | 14/20 | #9 Chem-Thread | O.D./7-9mm, O-Ring/110 | 10 mm | 1 Each |
|
|
| CG-1045-04 | Universal Adapter, Inlet, with Hose Connections | 24/40 | #9 Chem-Thread | O.D./7-9mm, O-Ring/110 | 10 mm | 1 Each |
|
|
| CG-1045-05 | Universal Adapter, Inlet, with Hose Connections | 24/40 | #12 Chem-Thread | O.D./9-12mm, O-Ring/204 | 10 mm | 1 Each |
|
|
| CG-1045-06 | Universal Adapter, Inlet, with Hose Connections | 24/40 | #15 Chem-Thread | O.D./12-15mm, O-Ring/206 | 10 mm | 1 Each |
|
Description
Adapter has the listed size of Chem-Thread at the top for a vacuum tight seal of a variety of tubing diameters. Will accept glass, metal or heavy wall plastic tubes having diameters between 7 to 18mm O.D. such as thermometer wells, gas dispersion tubes, plain stem funnels, etc. Serrated hose connection has an O.D. of 10mm at the largest serration. Adapters are supplied complete with a Celcon compression cap and Viton o-ring.
