Ai -40°C Cold Trap 4.6L Stainless Steel Trap, UL/CSA Certified

  • Free Shipping

from $4,990.00 $4,596.00

SKU DESCRIPTION TEMPERATURE RANGE ELECTRICAL QUANTITY PRICE ADD TO CART
T40X-UL.110 Cold Trap with 4.6L Stainless Steel Trap Ambient to -40 °C 110V, 60Hz 1-PH, 730W, UL/CSA Certified 1 Each
$4,990
$4,596
T40X-UL.220 Cold Trap with 4.6L Stainless Steel Trap Ambient to -40 °C 220V, 60Hz 1-PH, 730W, UL/CSA Certified 1 Each
$4,990
$4,596

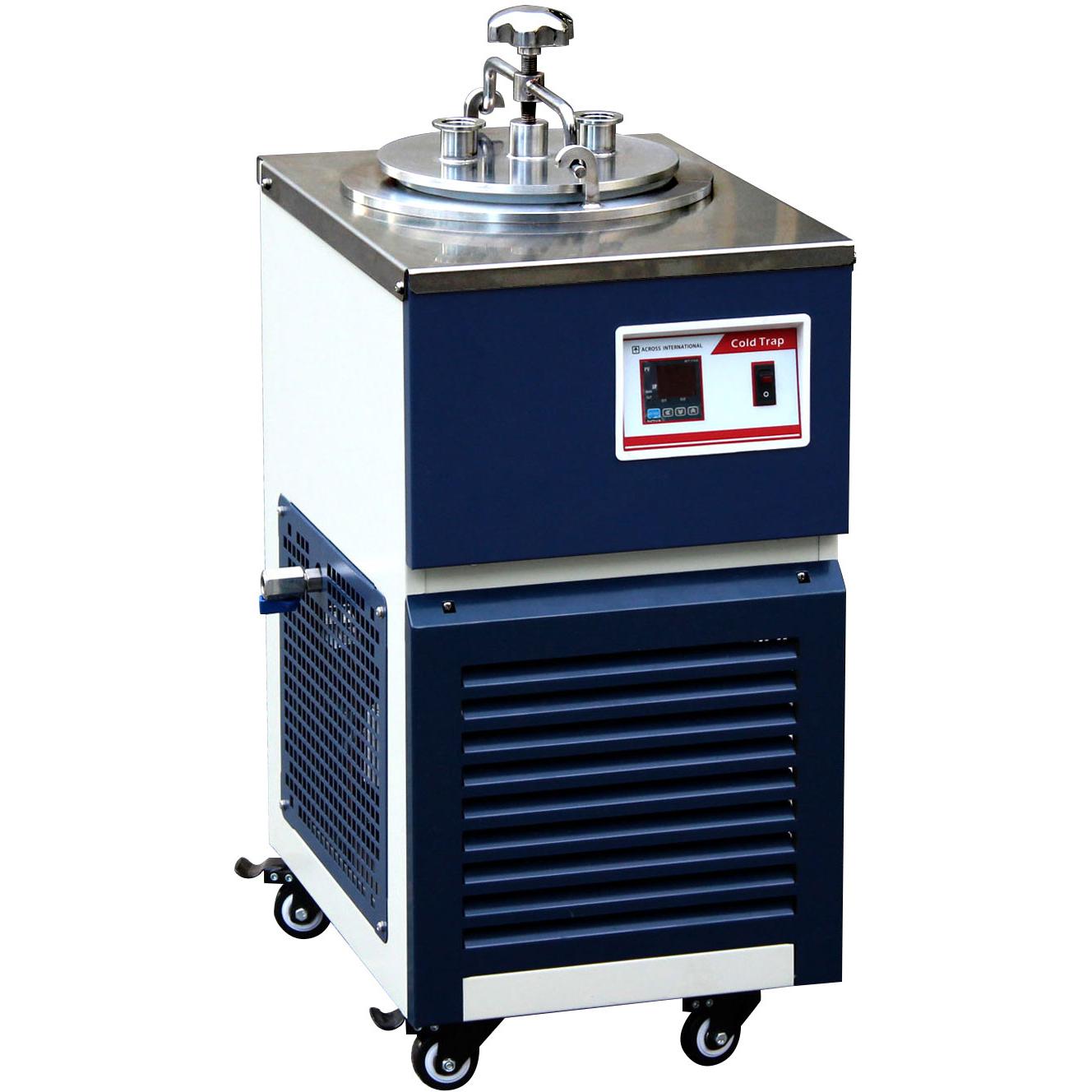

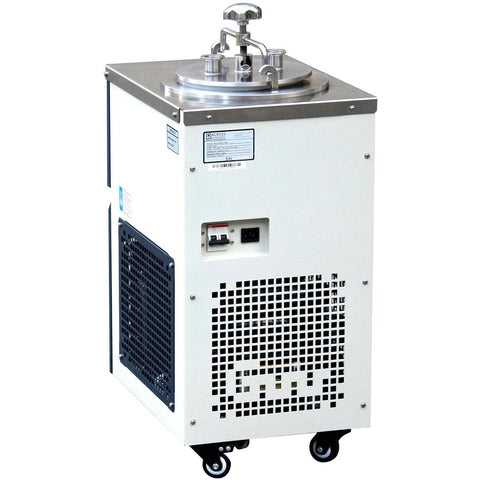

The Ai 3rd Gen -40°C/F T40 cold traps all come UL/CSA certified, standard. They have a small footprint, but at the same time, offering you the same cooling power. New features include a large type 316L SST 4.6 liter trap, type 316L corrosion-resistant trapping layers and vacuum connections, food grade VITON sealing gasket, upward KF25 vacuum connections provide you safer and easier vacuum tubing connection and removal. No chilling fluid required, just plug and play.

Grade 316, also called "The Food Grade Stainless" or "Marine Grade Stainless", is the standard molybdenum-bearing grade, second in importance to 304 amongst the austenitic stainless steels. The molybdenum gives 316 better overall corrosion resistant properties than Grade 304, particularly higher resistance to pitting and crevice corrosion in chloride environments.

Grade 316L, the low carbon version of 316 and is immune from sensitisation (grain boundary carbide precipitation). Thus it is extensively used in heavy gauge welded components (over about 6mm). The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures. Compared to chromium-nickel austenitic stainless steels, 316L stainless steel offers higher creep, stress to rupture and tensile strength at elevated temperatures. 316L are used to avoid corrosion problems caused by welding. Stainless steel valves and cylinders manufactured in 316L grade stainless steel have proved to offer exceptional resistance in acidic and hard water areas.

316L Grade Stainless Steel Advantages:

  • Extremely stains, corrosion, oxidation and pitting resistant
  • Considerably more resistant to humidity, chlorine, sulfuric acid, chlorides, bromides, iodides and fatty acids
  • Excellent formability
  • Easier to clean
  • Rupture and tensile strength at high temperatures
  • Excellent toughness and pressure performance at cryogenic temperatures
  • 316L stainless steels (containing molybdenum) are required in the manufacture of certain pharmaceutical, medical, surgical or chemical equipment in order to avoid excessive metallic contamination
  • Longer equipment life expectancy

Ai UL/CSA certified T40-UL -40°C/°F cold trap features:

  • No chilling fluid needed, just plug and play
  • UL 471:2010 and CSA C22.2 certified
  • Corrosion-resistant type 316L grade stainless steel for trap and all vacuum connections
  • Large 4.6 liter trap capacity
  • Food grade VITON sealing gasket
  • No dry ice or liquid nitrogen needed
  • Drain port with open/close value allows easy liquid removal
  • Small footprint, built-in swivel casters for mobility

Specifications

Model T40x-UL
Electrical requirements 110V or 220V, 60Hz 1-PH, 730 watts
Compressor Make Embraco
Compressor Refrigerant R404A (280g)
Cooling Capacity Cooling capacity at -40°C: 50W
Trap Reservoir Volume 1.2 gallon (4.6 liters)
Trap Reservoir Dimensions 6in Diameter; 10in Depth
Trap Reservoir Material Corrosion-resistant type 316L stainless steel
Trap Material Corrosion-resistant type 316L stainless steel
Trap Diameter 5.75in
Trap Depth 8in

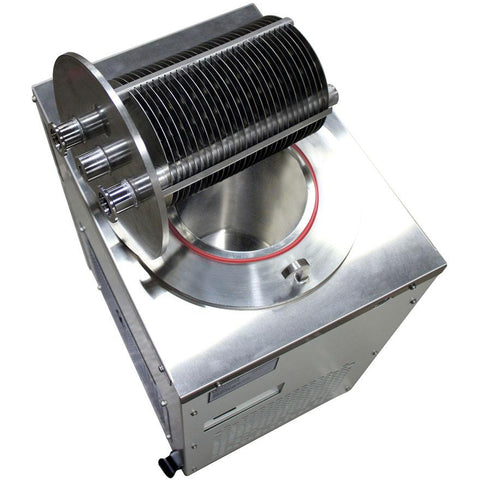

Trap Layers 30
Temperature -40°C
Temperature Dispaly digital
Temperature Sensor PT100
Interior Finish corrosion-resistant type 316L stainless steel
Exterior Finish powder coated steel
Vacuum Connection KF25/NW25 x 2
Unit Weight 110 lbs
Unit Dimensions 13 x 18 x 30" (WxDxH), fully assembled
Compliance UL 61010-1: 2012 Ed.3+R:29Apr2016
CSA C22.2#61010-1: 2012 Ed.3
Warranty 1 Year

Kit Includes

Part Description Quantity
Ai T40x-UL -40°C/°F cold trap 1 Each
Radiator cleaning brush 1 Each
KF25 quick clamp and centering ring 2 Sets
User Manual 1 Each
