FREE SHIPPING

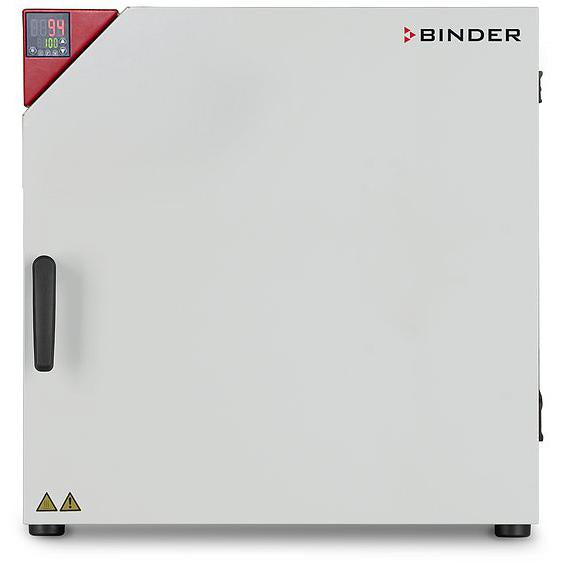

BINDER BD-S Solid.Line, Standard-Incubators with gravity convection
$1,639
and up
| Image | SKU | Description | Capacity | Temperature Range | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
|
9090-0017 | Model BD-S 56 Incubator with gravity convection | 2.2 cu ft | ambient +5 °C to 70 °C | 120 V, 60 Hz, 12.5 A, UL Certified | 1 Each | $1,639 | |
|
9090-0023 | Model BD-S 115 Incubator with gravity convection | 4.2 cu ft | ambient +5 °C to 70 °C | 120 V, 60 Hz, 6.3 A, UL Certified | 1 Each | $2,222 |
Description
The products in the Solid.Line impress with their tried-and-tested BINDER quality and reliability. They are suited to incubation. The attributes of the Solid.Line are geared towards the application in question and therefore used in research and quality assurance.
Features:
- Temperature range: ambient temperature +5 °C to 70 °C
- APT.line™ preheating chamber technology
- Gravity convection
- Adjustable exhaust air flap
- Controller with timer function
- Inner door made of tempered safety glass
- 1 chrome-plated rack, incl. shelf supports
- Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
Documentation
| Product Data Sheets |
|---|
| B | BD | BD-S | BF Series Incubator Brochure |
| BD-S | ED-S | FD-S Series Operating Manual |
Specifications
| SKU | 9090-0017 | 9090-0023 |
|---|---|---|
| Model | BDS056UL-120V | BDS115UL-120V |
| Capacity | 2.2 cu ft | 4.2 cu ft |
| Temperature Range | ambient +5 °C to 70 °C | ambient +5 °C to 70 °C |
| Temperature Stability | ±0.1 K at 37 °C | ±0.2 K at 37 °C |
| Temperature Uniformity | ±0.7 K at 37 °C | ±0.5 K at 37 °C |
| Doors | 1 | 1 |
| Recovery Time | 15 mins after 30 second door open at 37 °C | 15 mins after 30 second door open at 37 °C |
| Interior Dimensions | 13.79" D x 17.34" H x 15.76" W | 15.37" D x 21.67" H x 21.67" W |
| Exterior Dimensions | 22.73" D x 24.63" H x 24.19" W | 24.27" D x 28.96" H x 30.1" W |
| Number of Shelves | 1 standard (3 max.) | 1 standard (5 max.) |
| Maximum Load | 66 lbs | 165 lbs |
| Electrical | 120 V, 60 Hz, 12.5 A, UL Certified | 120 V, 60 Hz, 6.3 A, UL Certified |
| Weight | 75 lbs | 104 lbs |
