BioClave™ Research Sterilizers
Image SKU Description Chamber Volume Max Pressure Electrical Quantity Price Add to Cart
products/b4000_18_new_side_view_2021_hr_em_600x600_a2fad738-a1d1-43db-8917-d8722580f340.jpg
B4000-18 BioClave 18 Autoclave 18 L 29 PSI / 2 Bar 115V, 50-60 Hz 1 Each
$6,973.82
$5,927.75
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/b4000_8_new_side_view_2021_hr_em_600x600__1_0fe3c80f-841a-42e7-83b8-12ee9494e91d.jpg
B4000-M BioClave Mini Autoclave 8 L 29 PSI / 2 Bar 115V, 50-60Hz 1 Each
$5,040.61
$4,284.52
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/b4000_28_closed_website_2020.jpg
B4000-28-120 BioClave 28 Autoclave 28 L 34.8 PSI / 2.4 Bar 115V, 50-60Hz 1 Each
$12,842.86
$10,916.43
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

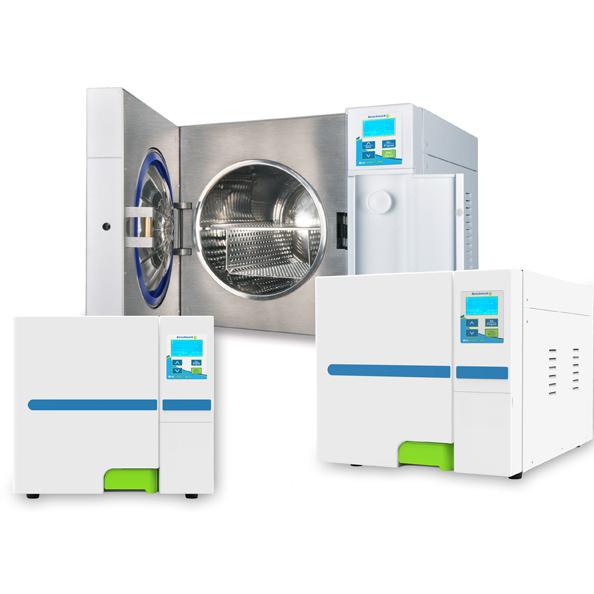

Despite the space-saving exterior dimensions of the Bioclaves, the stainless steel chambers are surprisingly large, accommodating a variety of liquids, media, instruments, glassware, plasticware, and other common research laboratory items.

Available in 8L, 18L, and 28L chamber volumes, these benchtop models include a mechanical and electrical safety interlock that prevents the door from being opened until the pressure has reached zero PSI.

With a large digital LCD display and fully automatic operation, all segments of the cycle (fill, sterilize, exhaust, and dry) commence and run to completion by simply pressing the start button. An optional thermal mini-printer is also available for providing a record of sterilization parameters and a USB drive can be used to record settings and transfer them to a PC.

The 8-liter BioClave Mini is preprogrammed to meet basic sterilization needs. Temperature can be selected at either 121°C or 134°C, and the sterilization time is fully adjustable. The economical BioClave Mini is the ideal choice wherever benchtop sterilization is required and space is limited.

BioClave 18L and 28L Models offer preset cycle options (standard programs), for use with liquids, wrapped research instruments, or unwrapped instruments/plasticware. An additional option "Dry Only" is also available for additional drying time to be added to the end of a cycle. For special applications, requiring variations in cycle parameters, all settings are fully adjustable.

The Bioclave 28L features an increased chamber size with a diameter of 32cm. With this larger internal chamber, the BioClave 28 is our only model capable of sterilizing 1 and 2 liters flasks (and bottles). Despite the increased chamber size, the unit is still relatively compact, suitable for benchtop use.

Specifications

Model BioClave Mini BioClave 18 BioClave 28
Chamber Vol. 8 L 18 L 28 L
Max. Pressure 29 PSI / 2 Bar 29 PSI / 2 Bar 34.8 PSI / 2.4 Bar

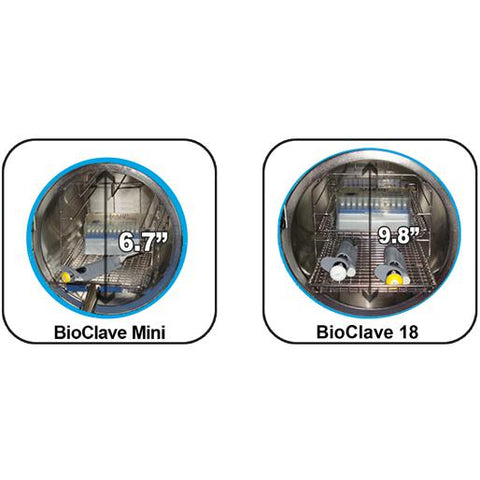

Chamber Dimensions 6.7 x 12.5 in. 9.8 x 13.77 in. 12.6 x 16.4 in.
Dimensions (w x d x h) 20 x 13.5 x 12.9 in. 22 x 17.5 x 15.7 in. 25 x 25 x 22 in.
Weight 74 lbs 89 lbs 209 lbs
Warranty 1 year
