Condensers, High Efficiency
$1,129.30
$825
and up
| SKU | Description | Joint Size | Overall Length | Jacket Length | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|
| CG-1215-C-01 | Condensers, High Efficiency | 24/40 | 400 mm | 400 mm | 1 Each |
|
|
| CG-1215-C-02 | Condensers, High Efficiency | 45/50 | 600 mm | 600 mm | 1 Each |
|
|
| CG-1215-C-10 | Condensers, High Efficiency | 45/50 | 465 mm | 465 mm | 1 Each |
|
Description

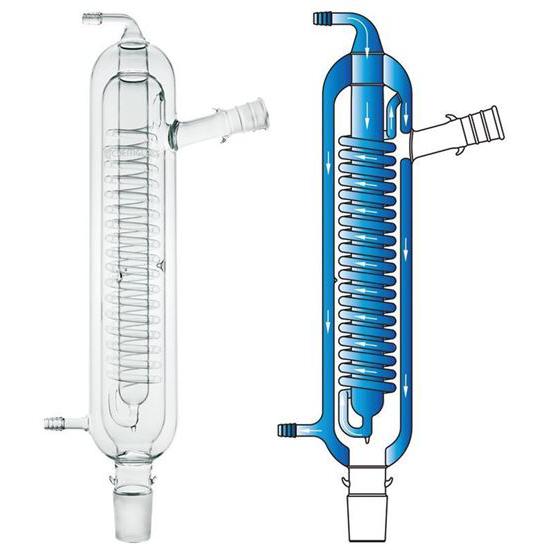

This unique design combines some of the best features for refluxing in a single condenser. Coolant, introduced into the upper hose connection, fills a large cold finger that is wrapped with coils.
After the coolant travels through the coils, it enters the water jacket to maximize cooling surface along the vapor path. Angled take off joint is a standard taper 24/40, and the angled take off joint for the 45/50 size is a standard taper 29/42.
Hose connections for the 24/40 size condenser are 10mm at the largest serration. Hose connections for the 45/50 size are 15mm at the largest serration.
