|SKU||Description||Joint Size||Thermometer Joint||Column Length||Dimensions||Quantity||Price||Add to Cart|
|CG-1246-10||Jacketed Vigreux Distilling Head||14/20||10/18||100 mm||200 x 180 mm||1 Each||
|CG-1246-12||Jacketed Vigreux Distilling Head||24/40||10/30||200 mm||325 x 350 mm||1 Each||
|CG-1246-13||Jacketed Vigreux Distilling Head||24/40||10/30||300 mm||425 x 350 mm||1 Each||

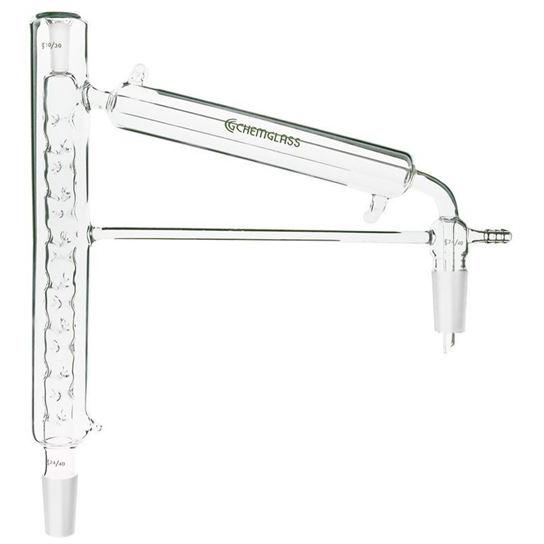

Vacuum jacketed Vigreux distillation head having a sealed on condenser, braced for strength. The top outer joint is for a 1 immersion 10/18 or 10/30 thermometer. Vacuum adapter has an inner joint and a sealed in drip tip. Condenser length is 100mm on the 14/20 size and 200mm on the 24/40 and 29/42 sizes.
