Distilling Heads, Short Path
$239
$185
and up
| Image | SKU | Description | Lower Inner Joint | Thermometer Joint | Height | Width | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
|
CG-1239-01 | Short Path Distilling Head | 14/20 | 7/12 | 110 mm | 110 mm | 1 Each |
|
|
|
CG-1239-02 | Short Path Distilling Head | 14/20 | 10/18 | 115 mm | 110 mm | 1 Each |
|
|
|
CG-1239-03 | Short Path Distilling Head | 24/40 | 10/30 | 160 mm | 195 mm | 1 Each |
|
|
|
CG-1239-04 | Short Path Distilling Head | 24/40 | 14/20 | 150 mm | 195 mm | 1 Each |
|
|
|
CG-1239-10 | Short Path Distilling Head, Vigreux Indents | 14/20 | 7/12 | 110 mm | 110 mm | 1 Each |
|
|
|
CG-1239-11 | Short Path Distilling Head, Vigreux Indents | 14/20 | 10/18 | 110 mm | 110 mm | 1 Each |
|
|
|
CG-1239-12 | Short Path Distilling Head, Vigreux Indents | 24/40 | 10/30 | 160 mm | 195 mm | 1 Each |
|
|
|
CG-1239-13 | Short Path Distilling Head, Vigreux Indents | 24/40 | 14/20 | 150 mm | 195 mm | 1 Each |
|
Description

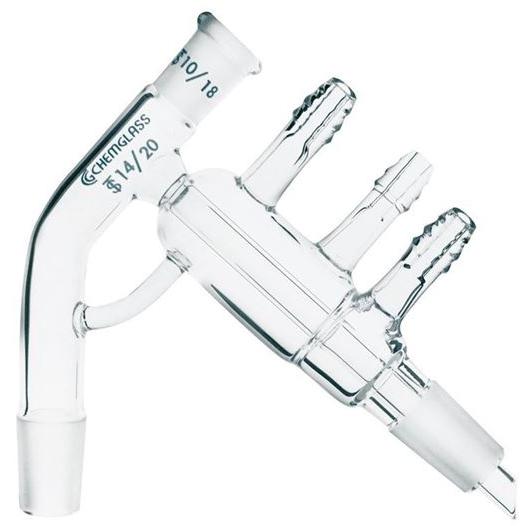

Designed for use with small quantities where hold up between the flask and receiver must be kept to a minimum. The thermometer bulb and stem serve as column packing. Upper hose connections are for cooling lines while the lower connection is for vacuum. Available with Vigreux indentations to improve efficiency.
Note: The 14/20 size accepts a 1 immersion 7/12 or 10/18 thermometer, while the 24/40 and 29/42 sizes accepts a 2 immersion, 10/30 thermometer.
