Distilling Heads, Short Paths, Jacketed
$492.05
$368
and up
| Image | SKU | Description | Lower Inner Joint | Thermometer Joint | Height | Width | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
|

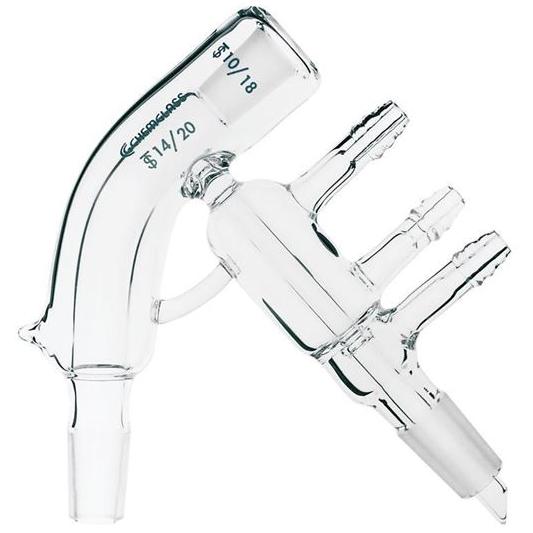

CG-1240-04 | Short Path Distilling Head, Jacketed | 14/20 | 7/12 | 100 mm | 105 mm | 1 Each |
|
|
|
CG-1240-05 | Short Path Distilling Head, Jacketed | 14/20 | 10/18 | 105 mm | 105 mm | 1 Each |
|
|
|
CG-1240-06 | Short Path Distilling Head, Jacketed | 24/40 | 10/30 | 150 mm | 200 mm | 1 Each |
|
|
|
CG-1240-07 | Short Path Distilling Head, Jacketed | 24/40 | 14/20 | 150 mm | 200 mm | 1 Each |
|
|
|
CG-1240-10 | Short Path Distilling Head, Jacketed, Vigreux Indents | 14/20 | 7/12 | 105 mm | 105 mm | 1 Each |
|
|
|
CG-1240-11 | Short Path Distilling Head, Jacketed, Vigreux Indents | 14/20 | 10/18 | 105 mm | 105 mm | 1 Each |
|
|
|
CG-1240-12 | Short Path Distilling Head, Jacketed, Vigreux Indents | 24/40 | 10/30 | 150 mm | 200 mm | 1 Each |
|
|
|
CG-1240-13 | Short Path Distilling Head, Jacketed, Vigreux Indents | 24/40 | 14/20 | 150 mm | 200 mm | 1 Each |
|
Description
Vacuum-jacketed to improve efficiency. Available with Vigreux indentations in uptake tube to further increase the performance of the head.
Note: The 14/20 size accepts a 1 immersion 7/12 or 10/18 thermometer, while the 24/40 and 29/42 sizes accept a 2 immersion, 10/30 thermometer.
