Distilling Receiver, Dean-Stark, Modified
$560.70
$408
| SKU | Description | Joint Size | Capacity | Stopcock | Height x Width | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
| CG-1266-10 | Dean-Stark Distilling Receiver, Modified | 24/40 | 50 mL | 4 mm PTFE | 355 x 240 mm | 1 Each |
|
Description

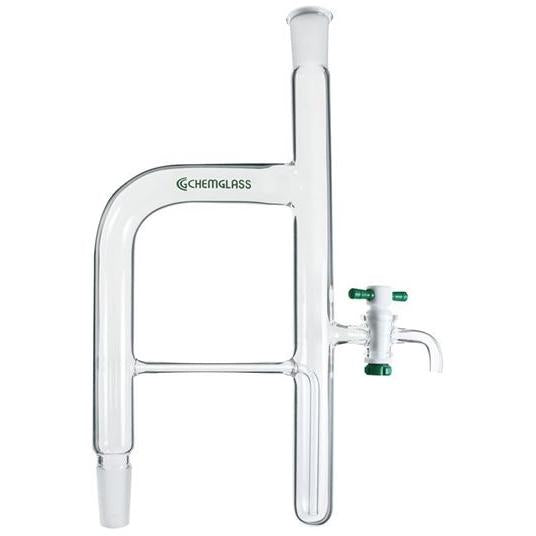

This innovative and compact Dean-Stark receiver is designed for azeotropic distillations using solvents that are heavier than water. The solvent vapor travels through tube A to a condenser inserted in the top standard taper outer joint. Vapors are condensed and collected in the reservoir section.
The layers separate and the heavier than water solvent overflows through tube C back into the distillation flask. The upper water layer is drained out intermittently using the 4mm PTFE stopcock D. Capacity of the lower reservoir is approx. 50mL.
