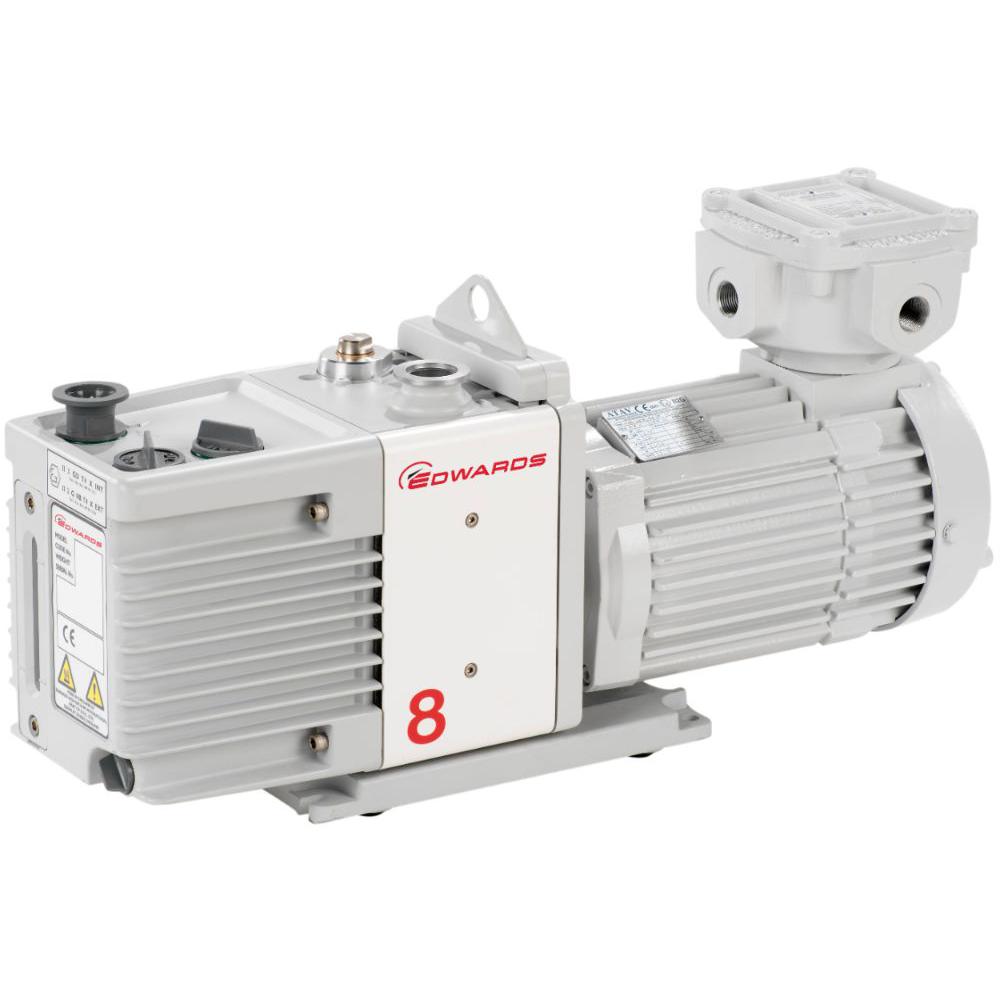

Edwards RV8 6.9 CFM Dual-Stage Vacuum Pump
SKU Description Pumping Speed Electrical Quantity Price Add to Cart
RV8 Edwards RV8 Dual-Stage Rotary Vane Vacuum Pump with Bellow & Fitting 6.9 CFM at 60Hz 110V 50/60Hz 1-PH 5A or 220V 50/60Hz 1-PH 2.1A 1 Each $4,637
  • 1
  • 2
  • 3
  • 4
  • 5


Edwards RV pumps have become the industry standard for scientific primary pumping applications. RV pumps are uniquely capable of delivering high or low throughput with high ultimate vacuum. This, combined with ultra-low noise levels, makes them ideal for a wide range of applications including GCMS and other small bench top type applications.

All pumps are approved to UL and CSA standards by an external test house. Edwards has a global network, providing world-wide support for product applications and service.

Supplied with: 1 litre of Ultragrade 19 oil, inlet filter and O-ring. Free KF25 flexible stainless steel bellow (3.3 ft), clamps and centering rings set included for immediately use (mist filter NOT included). Fomblin® must be purchased separately for PFPE RV pumps.Technical support and one year warranty covered by Edwards.


All our RV pumps are significantly quieter – noise levels of 48 dBA 50Hz are typically half the noise of a conventional pump and have been achieved by extensive work on the drive train and motor.

The pumps have the unique ability to deliver excellent ultimate vacuum in both high vacuum and high throughput modes with or without gas ballast. This gives the user an unrivaled opportunity to select the optimum pumping performance without compromising the application.

In its high vacuum mode, the RV pump is ideal for analytical instruments, electron microscopes, physics research, backing turbo pumps, TV tube pumping and leak detection applications. Configure the same pump in the high throughput mode, and it becomes suitable for mass spectrometer inlet systems, distillation, laboratory furnaces, backing vapor pumps, solvent concentration, freeze drying and other drying applications.

The simple to use mode selector and accessible, three-position gas ballast control allow the pump to be reconfigured at any time, even when the pump is running.

Features and Benefits

  • 48 dB(A) and intrusive frequencies minimized.
  • Dual mode. Suitable for high throughput and high vacuum applications.
  • Easy-to-use gas ballast.
  • Fast acting inlet valve for system protection.
  • High torque, dual voltage/dual frequency motor, electronic start relay.
  • Efficient high pressure lubrication.
  • Oil-tight with printed gaskets, effective shaft seals.
  • Clamped-in sight glass.
  • Oil box well contains filling spills.
  • Hi-tech polymer blades, large diameter, easy-clean oil passages.
  • Consistent, built-in quality, cast bar construction.
  • One year warranty, as well as technical support from Edwards


  • Analytical instruments
  • Centrifuges, ultra-high speed
  • Coating
  • Degassing/curing - oil, epoxy resin
  • Distillation/extraction/filtration
  • Freeze drying
  • Furnaces
  • Gas bottle filling/emptying
  • Gel drying
  • Glove boxes, ovens
  • Laboratory bench top vacuum
  • Leak detectors, Helium
  • Load locks and transfer chambers
  • Refrigeration manufacture
  • Research and development
  • Rotary, centrifugal evaporators
  • Scanning electron microscopes - SEM
  • SEM/FIB (ion beam repair)
  • Solvent recovery
  • Surface science instruments
  • Turbomolecuar backing pumps
Model RV8
Vacuum pump type Dual stage rotary vane
Power 110V 50/60Hz 1-PH 5A or 220V 50/60Hz 1-PH 2.1A (switchable)
Power connection US standard 3-prong plug (NEMA 5-15P)
Motor power at 50Hz 450 watts
Motor power at 60Hz 550 watts
Peak pumping speed 6.9 CFM at 60Hz
Ultimate vacuum without gas ballast 1.5 micron/millitorr
Ultimate vacuum with gas ballast 60 micron/millitorr
Unit dimensions (WxDxH) 18.5 x 6.2 x 8.9"
Shipping dimensions (WxDxH) 31 x 11.5 x 19"
Max water vapor inlet pressure 28.5 torr (38 mbar)
Max allowed pressure at outlet 0.2 bar gauge/2.8 psig
Operating temperature range 54°F to 104°F (12°C to 40°C)
Oil capacity Minimum 0.48 quart (0.45 L), maximum 0.8 quart (0.75 L)
Oil type Ultragrade 19
Nominal rotation speed at 50/60Hz 1500/1800 rpm
Noise level 48 dB(A)
Inlet connection NW25/KF25
Outlet connection NW25/KF25
Unit weight 57 Lbs
Shipping weight 70 Lbs
Certification CE, UL, CSA
