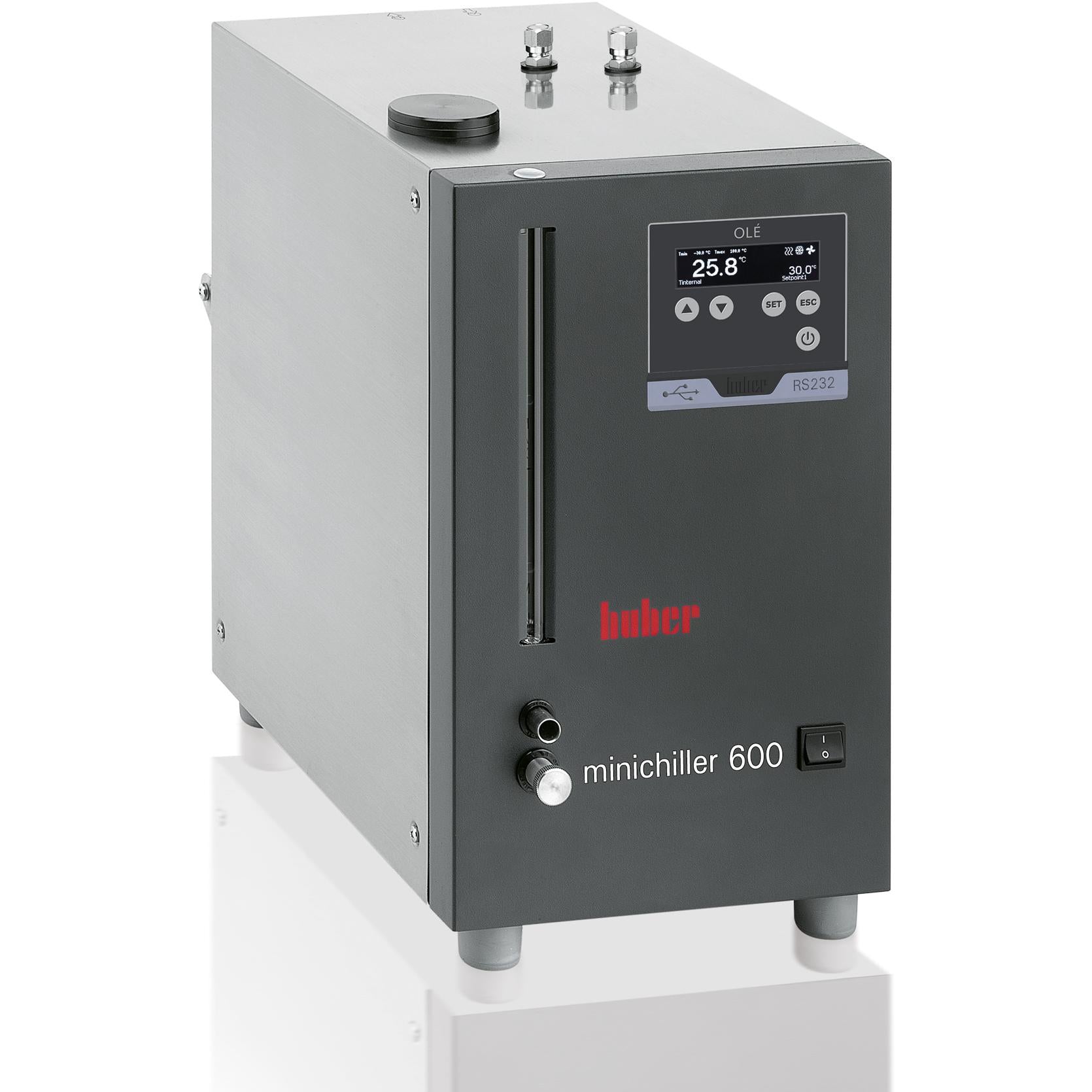

Huber Minichiller 600 OLÉ Chillers
SKU Description Filling Volume Temperature Range Temperature Stability Electrical Quantity Price Add to Cart
3066.0001.98 Minichiller 600 OLÉ Chiller 2.8 L -20 to 40 °C ±0.5 °C 110-120V 1~ 60Hz 1 Each
  • 1
  • 2
  • 3
  • 4
  • 5
3066.0001.98.UL Minichiller 600 OLÉ Chiller 2.8 L -20 to 40 °C ±0.5 °C 110-120V 1~ 60Hz, UL/CSA Certified 1 Each
  • 1
  • 2
  • 3
  • 4
  • 5


The compact Minichillers are an economic and environmentally friendly cooling solution for many laboratory applications. A calculation of water and waste water costs shows that a Minichiller can save up to 48,000 liters of water in a working week and due to its low procurement price, return on investment is achieved within a very short time. The units have small footprints, only requiring 225 x 360 mm on the laboratory bench and are therefore suitable for cooling reactor blocks, vacuum pumps, rotary evaporators or heat exchangers. Minichillers allow stable application conditions due to constant values for temperature, pressure and through-flow quantities. They are also perfect for continuous operation at ambient temperatures up to 40°C. Despite the economic purchase price the coolers are well equipped and have a large temperature indicator, fill level indicator, as well as status LEDs for the pump, cooling and heating. A 1 kW heater is optionally available with which the temperature range can be extended to +100°C. Minichillers are available as both air and water cooled models and use natural refrigerants.

The new OLÉ controller combines state-of-the-art technology with simple operation. OLÉ models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

  • Environmentally-friendly, economic cooling solution
  • High efficiency
  • Precise temperature control
  • Robust stainless construction
  • Reliable continuously operation with warning functions
  • Easy to fill and empty
  • Illuminated filling level indicator
  • Bright, large OLED display
  • USB and RS232 interfaces


Model 3066.0001.98
Minichiller 600 OLÉ, 115V
General Information & Temperature Controller
Temperature Range -20 to 40 °C
Temperature Stability ±0.5 °C
Temperature Display OLED Display
Display Resolution 0.1 °C
Alarm Message Optical, Acoustical
Controller OLÉ
Safety Class I / NFL
Protection Class IP20
Dimensions (W x D x H) 280 x 490 x 424 mm
11.02 x 19.29 x 16.69 inches
Weight 36 kg; 79.38 pounds
Heating / Cooling Capacity
Cooling Capacity 0.6kW @ 15°C; 0.5kW @ 0°C; 0.35kW @ -10°C; 0.15kW @ -20°C
Cooling Machine Air-Cooled
Refrigerant R290 (A3, H220) (0.085 kg)
Circulation Pump
Pressure Pump Max. 24 lpm ; 0.7 bar / 6.34 gpm ; 10.15 psi
Suction Pump Max. 18 lpm ; 0.4 bar / 4.76 gpm ; 5.8 psi
Pump Connection M16x1 AG male
Digital Interface USB, RS232
Operating Data
Permissible Ambient Temp. 5 to 40 °C
Noise Level 56 dB(A)
Filling Volume Min. 2.8 Liters / 0.74 gal
Volume of Expansion 2.2 Liters / 0.58 gal
Power Supply 110-120V 1~ 60Hz
Current Max. 8.5 A


Product Data Sheets
Minichiller 600 OLÉ 110-120V Product Data Sheet
OLÉ Minichiller Operating Manual
