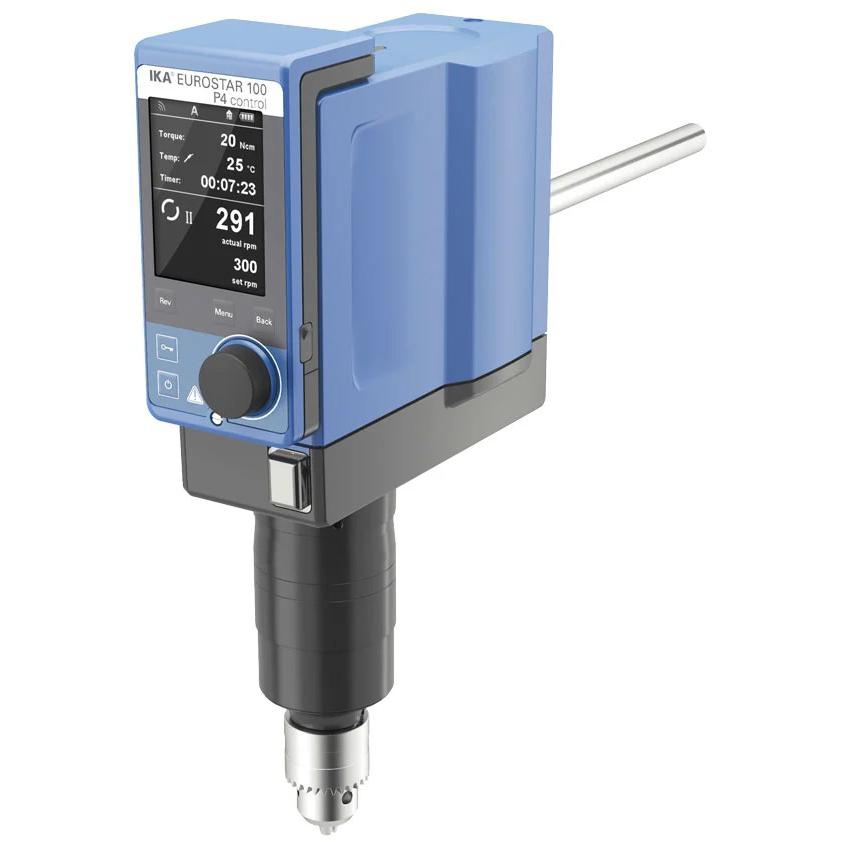

EUROSTAR 100 P4 control
The extremely powerful laboratory stirrer EUROSTAR 100 P4 control with a removable wireless controller and a digital TFT display is especially suitable for highly viscous applications and provides a torque of up to 320 Ncm. It automatically adjusts the speed through microprocessor-controlled technology within the speed range of 10 - 300 rpm. The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters. Furthermore, an integrated torque trend display is provided for the measurement of viscosity changes and its electronic safety circuit ensures automatic cut-off in anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.
Features
- Reverse function
- Multilingual TFT display
- Programmable functions
- Integrated temperature measurement
- Interval operation
- Timer function
- Adjustable safety circuit
- Locked function
- Infinitely adjustable speed
- Push-through agitator shafts
- Overload protection
- Short-term overload operation
- Quiet operation
- Error code display
- H 67.60 temperature sensor and WH 11 WiCo holder included in delivery
Scope of delivery (included)
- EUROSTAR 100 P4 control
- H 67.60 Temperature sensor, stainless steel
- WH11
- OS 1.0 WiCo power supply unit
- USB Cable - USB A to Micro-B, 2 m
- USB cable micro A – micro B 2.0
- Screwdriver
- Protective cover for WiCo contact
- Chuck key
Technical Data
| Stirring quantity max. per stirring position (H2O) |
100 L |
| Motor rating input |
174 W |
| Motor rating output |
142 W |
| Motor principle |
Brushless DC |
| Speed display |
TFT |
| Speed range |
10 – 300 rpm |
| Reversible direction of rotation |
Yes |
| Intermittent operation |
Yes |
| Viscosity max. |
100,000 mPas |
| Output max. at stirring shaft |
100 W |
| Permissible ON time |
100 % |
| Torque max. at stirring shaft |
320 Ncm |
| Speed adjustment |
Stepless |
| Setting accuracy speed |
±1 rpm |
| Deviation of speed measurement n < 300 rpm |
±3 rpm |
| Stirring element fastening |
Chuck |
| Connection for external temperature sensor |
PT1000 |
| Temperature display |
Yes |
| Chuck range diameter |
0.5 – 10 mm |
| Fastening on stand |
Extension arm |
| Extension arm diameter |
16 mm |
| Extension arm length |
220 mm |
| Torque display |
Yes |
| Nominal torque |
3.20 Nm |
| Torque measurement |
Trend |
| Deviation of torque measurement I |
±30 Ncm |
| Timer |
Yes |
| Timer display |
TFT |
| Time setting range |
1 – 6000 min |
| Temperature measuring range |
-10 – +350 °C |
| Temperature measurement resolution |
0.1 K |
| Accuracy of temperature measurement |
±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K |
| Limit deviation temperature sensor |
≤ ± (0.15 + 0.002 x ITI) K |
| Housing material |
Alu-cast coating / thermoplastic polymer |
| Communication distance (depend on building) max. |
150 m |
| Dimensions (W x H x D) |
86 x 352 x 230 mm |
| Weight |
5.2 kg |
| Permissible ambient temperature |
5 – 40 °C |
| Permissible relative humidity |
80 % |
| Protection class according to DIN EN 60529 |
IP 40 |
| RS 232 interface |
Yes |
| USB interface |
Micro-USB |
| Voltage |
115 V |
| Frequency |
50/60 Hz |
| Power input |
150 W |
