IKA EUROSTAR 60 Digital Overhead Stirrer, 60 Ncm, Up to 40 L
$2,735
$2,598
and up
| SKU | Description | Volume Maximum | Speed | Viscosity Maximum | Electrical | Includes | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
| 0004446001 | IKA EUROSTAR 60 Digital Overhead Stirrers | 40 L | 0/30 - 2000 rpm | 50000 mPas | 115 V, 50/60 Hz | EUROSTAR 60 digital (stirrer body only) | 1 Each |
|
|
| 0009025301 | IKA EUROSTAR 60 Digital Overhead Stirrer Package | 40 L | 0/30 - 2000 rpm | 50000 mPas | 230 V, 50/60 Hz | EUROSTAR 60 digital, R 2723 Telescopic stand, R 271 Boss head clamp, R 1345 Propeller stirrer 4-bladed | 1 Kit |
|
Description

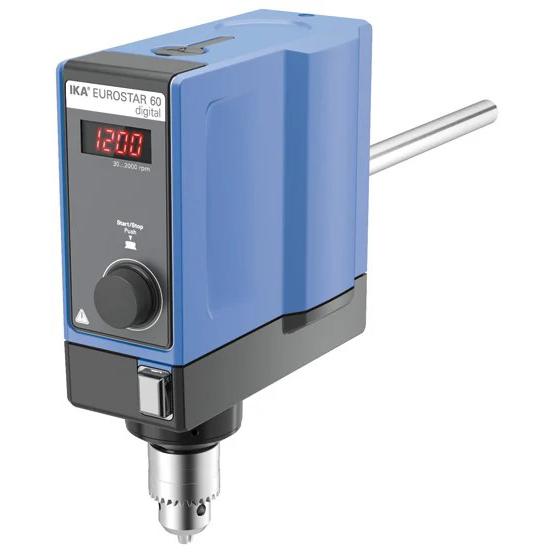

EUROSTAR 60 digital
Universally used strong laboratory stirrer for quantities up to 40 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30 - 2000 rpm. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.
Features
- Digital speed display
- Infinitely adjustable speed
- Push-through agitator shafts
- Overload protection
- Short-term overload operation
- Slim casing
- Quiet operation
- Error code display
Scope of delivery (SKU 0004446001 included)
- EUROSTAR 60 digital
- chuck key
Scope of delivery (SKU 0009025301 included)
- EUROSTAR 60 digital
- R 2723 Telescopic stand
- R 271 Boss head clamp
- R 1345 Propeller stirrer, 4-bladed
Technical Data
| Stirring quantity max. per stirring position (H2O) | 40 L | |
|---|---|---|
| Motor rating input | 176 W | |
| Motor rating output | 126 W | |
| Motor principle | Brushless DC | |
| Speed display | 7 segment LED | |
| Speed range | 0/30 - 2000 rpm | |
| Viscosity max. | 50000 mPas | |
| Output max. at stirring shaft | 126 W | |
| Permissible ON time | 100% | |
| Torque max. at stirring shaft | 60 Ncm | |
| Speed adjustment | stepless | |
| Setting accuracy speed | ±1 rpm | |
| Deviation of speed measurement n > 300rpm | ±1 % | |
| Deviation of speed measurement n < 300rpm | ±3 rpm | |
| Stirring element fastening | chuck | |
| Chuck range diameter | 0.5 - 10 mm | |
| Hollow shaft, inner diameter | 11 mm | |
| Hollow shaft (push-through - when stopped) | yes | |
| Fastening on stand | extension arm | |
| Extension arm diameter | 16 mm | |
| Extension arm length | 220 mm | |
| Speed control | electronic | |
| Nominal torque | 0.6 Nm | |
| Housing material | alu-cast coating / thermoplastic polymer | |
| Dimensions (W x H x D) | 86 x 248 x 208 mm | |
| Weight | 3.9 kg | |
| Permissible ambient temperature | 5 - 40 °C | |
| Permissible relative humidity | 80 % | |
| Protection class according to DIN EN 60529 | IP 42 | |
| Voltage | 115 V | |
| Frequency | 50/60 Hz | |
| Power input | 176 W |
Documentation
| Manual EUROSTAR digital 20/40/60 control |
