FREE SHIPPING

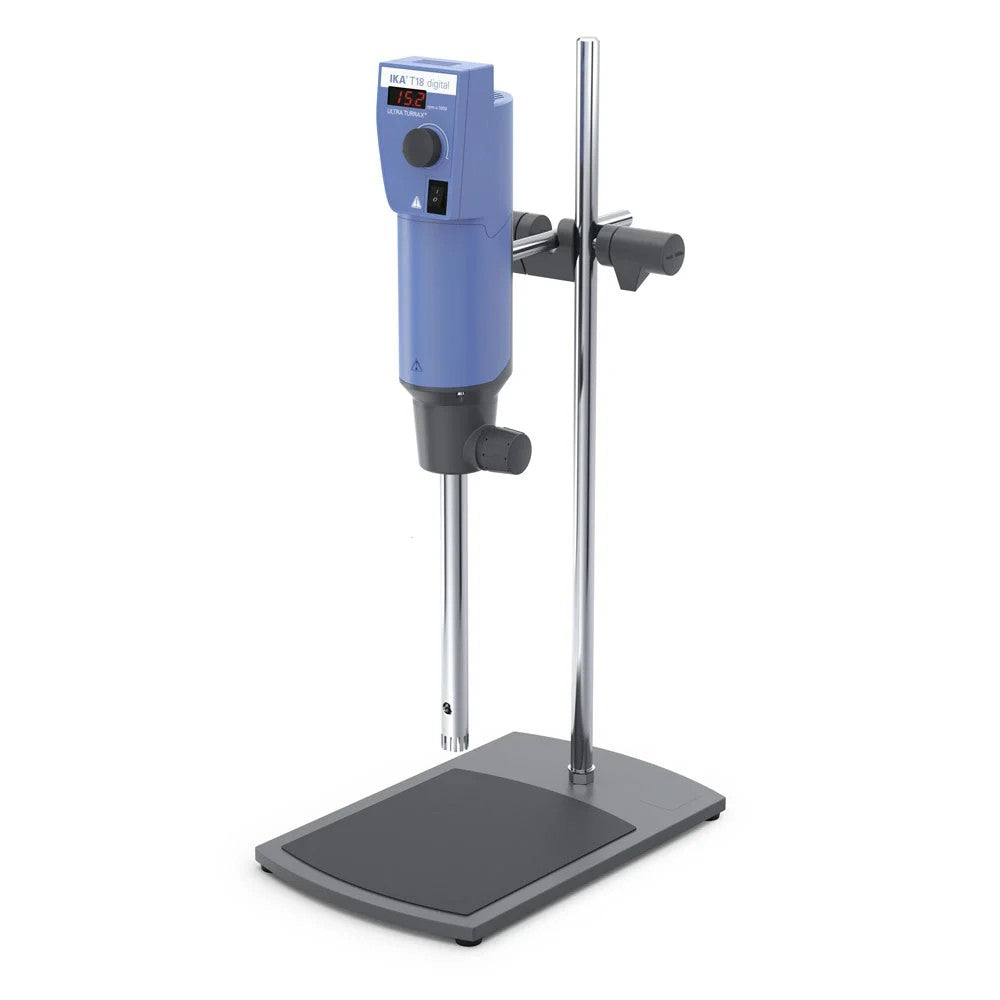

IKA T 18 digital ULTRA-TURRAX® Dispersers
$1,940
$1,843
and up
| Image | SKU | Description | Speed Range | Volume Range | Electrical | Includes | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
|
0003720001 | IKA T 18 digital ULTRA-TURRAX® Disperser | 3000 to 25000 rpm | 1 to 1500 mL | 100-120V, 50/60Hz | T 18 digital disperser body ONLY (dispersing tool NOT included) | 1 Each |
|
|
|
0010015389 | IKA T 18 digital ULTRA-TURRAX® Disperser, Complete Kit | 3000 to 25000 rpm | 1 to 1500 mL | 100-120V, 50/60 Hz | T 18 digital disperser + S 18 N - 19 G Dispersing tool + R 1826 Plate stand + R 182 Boss head clamp | 1 Kit |
|
Description
T 18 digital ULTRA-TURRAX®
Competitively priced dispersing instrument for volumes from 1 – 1500 ml (H2O) with digital speed display. It offers a wide speed range from 3000 – 25,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantees a wide range of applications.
- Digital speed display
- Electronic speed control
- Electronic overload protection
- Stainless steel dispersing elements can be cleaned quickly and easily
- Plastic disposable dispersing elements are available in two sizes
- Error code display
- Quiet operation
Technical Data
| Motor rating input | 500 W |
|---|---|
| Motor rating output | 300 W |
| Volume range (H2O) | 0.001 - 1.5 l |
| Viscosity max. | 5000 mPas |
| Speed range | 3000 - 25000 rpm |
| Speed deviation | 1 % |
| Speed adjustment | stepless |
| Speed display | LED |
| Noise without element | 75 dB(A) |
| Extension arm diameter | 13 mm |
| Extension arm length | 160 mm |
| Process type | batch |
| Permissible ON time | 100 % |
| Dimensions (W x H x D) | 87 x 271 x 106 mm |
| Weight | 2.5 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80% (up to 31°C), decreasing linearly to max. 50 (@40°C) |
| Protection class according to DIN EN 60529 | IP 20 |
| Voltage | 100 - 120 V |
| Frequency | 50/60 Hz |
| Power input | 500 W |
Documentation
| Datasheet T 18 digital ULTRA-TURRAX® |
| Manual T 18 digital ULTRA-TURRAX® |
