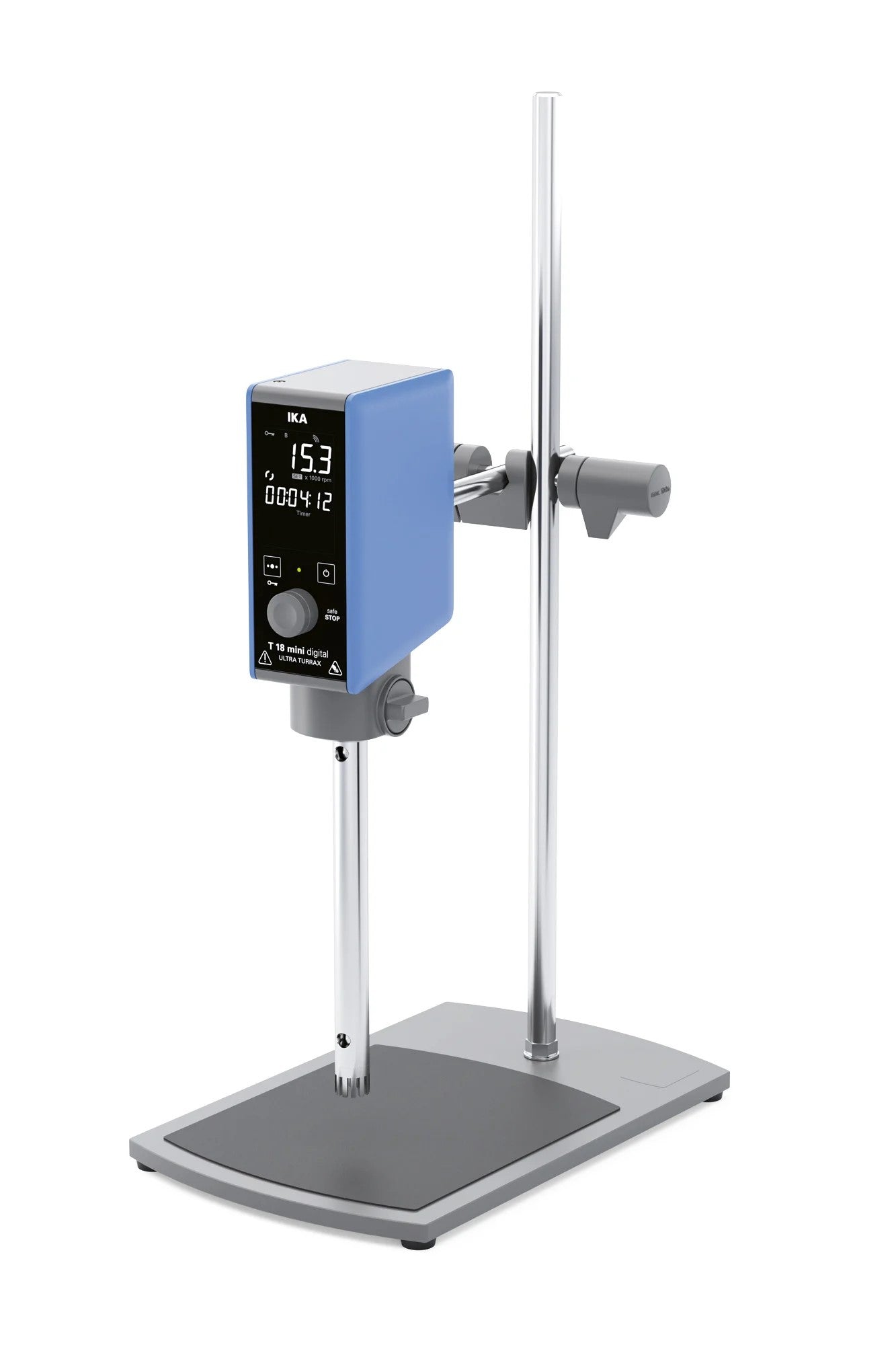

T 18 mini digital Solution Disperser
T 18 mini digital is an economical high-performance dispersing instrument with a wide speed range of 3000 - 25,000 rpm for working volumes of up to 1.5 liters (H20). It enables the user to work at high circumferential speeds even with small rotor diameters. The compact design of this disperser allows for operation in the tightest of spaces. A large TFT display ensures easy readability from a greater distance, even from outside a fume hood. This setup is best suited for simple applications homogenizing samples with low viscosity.
The T 18 mini digital Solution provides a complete starter solution to start your homogenisation journey, complete with a dispersing tool, shaft and stand for basic homogenisation requirements with a compact size and smart features.
Features
- Digital speed display and adjustment
- Brushless motor for improved motor lifetime, quieter operation and more hygienic applications
- Timer function for unattended operation
- Dispersing elements: stainless steel option with a high chemical resistance or plastic options that come in two sizes
- Quick insert for easy change of dispersing elements for convenient cleaning and maintenance
- USB interface for remote control and parameter documentation with the IKA labworldsoft® software
Scope of delivery (SKU 0020128581)
- T 18 mini digital ULTRA-TURRAX® Disperser
This is the disperser body only. The dispersing tool is not included in the scope of delivery.
Scope of delivery (SKU 0010015138)
- T 18 mini digital ULTRA-TURRAX®
- S 18 N - 19 G Dispersing tool
- R 1826 Plate stand
- R 182 Boss head clamp
Technical Data
| Motor rating input |
210 W |
| Motor rating output |
160 W |
| Volume range (H2O) |
0.001 - 1.5 l |
| Viscosity max. |
2000 mPas |
| Speed range |
3000 - 25000 rpm |
| Speed deviation |
3 % |
| Speed adjustment |
stepless |
| Speed display |
LED |
| Noise without element |
75 dB(A) |
| Motor principle |
Brushless DC |
| Extension arm diameter |
13 mm |
| Extension arm length |
160 mm |
| Process type |
batch |
| Timer |
yes |
| Timer display |
LED |
| Permissible ON time |
100 % |
| Dimensions (W x H x D) |
66 x 186 x 100 mm |
| Weight |
1.8 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative humidity |
80 % |
| Protection class according to DIN EN 60529 |
IP 30 |
| USB interface |
USB-C |
| Voltage |
100 - 240 V |
| Frequency |
50/60 Hz |
| Power input |
210 W |
| Power input max. |
250 W |
| Power input standby |
3 W |
| DC Voltage |
48 V= |
| Current consumption |
4500 mA |
