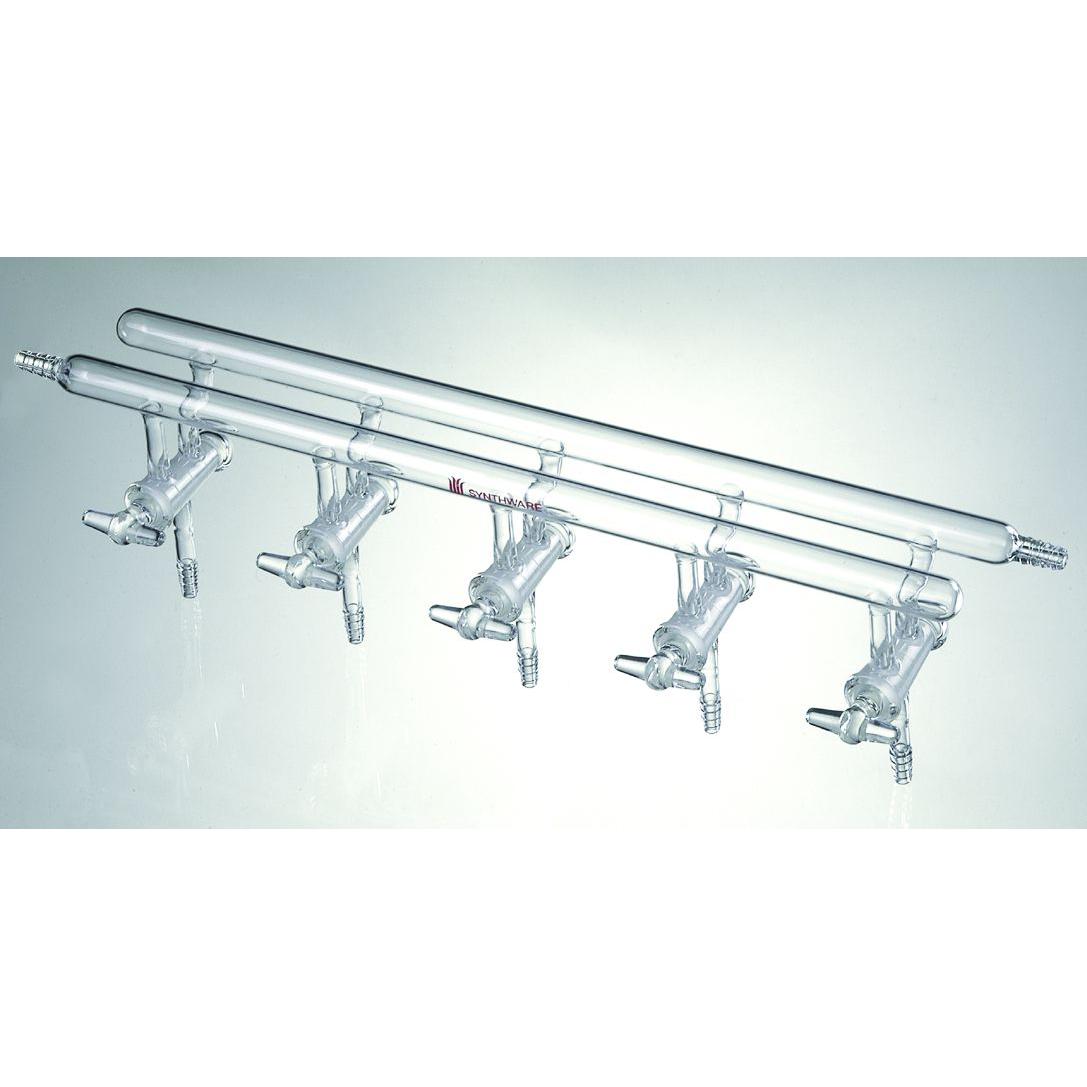

Manifold, Vacuum/Inert Gas, All Glass
$602.99
$512
and up
| Image | SKU | Description | Overall Width | Number of Ports | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|
|
M181003 | Manifold, Front-Left and Rear-Right 10mm Hose Connections, 4mm Stopcocks | 300 mm | 3 | 1 Each |
|
|
|
M181004 | Manifold, Front-Left and Rear-Right 10mm Hose Connections, 4mm Stopcocks | 375 mm | 4 | 1 Each |
|
|
|
M181005 | Manifold, Front-Left and Rear-Right 10mm Hose Connections, 4mm Stopcocks | 450 mm | 5 | 1 Each |
|
|
|
M401004 | Manifold, Front-Right and Rear-Left 10mm Hose Connections, 4mm Stopcocks | 375 mm | 4 | 1 Each |
|
|
|
M401005 | Manifold, Front-Right and Rear-Left 10mm Hose Connections, 4mm Stopcocks | 450 mm | 5 | 1 Each |
|
Description
With 4mm double oblique, high vacuum hollow glass stopcocks precision ground with corresponding numbers on barrel and plug. Lower vacuum chambers on stopcock are evacuated with a separate hole in the plug in order to hold the plug in the stopcock barrels. Beams are 22mm O.D. with 10mm hose connections. Distance between stopcocks is 75mm center to center.
