Scilogex D160 Homogenizers
Image SKU Description Speed Range Volume Range Electrical Includes Quantity Price Add to Cart
products/d160_package_8501010185010201_cf9068fe-9d68-47b3-a16f-84697bb41645.jpg
850101019999 D160 Homogenizer Package 8,000 to 30,000 rpm 0.1 to 50 mL 110V, 60Hz Drive Motor; DS-160/5 5mm dia. generator, flat head-open slot, 50mm immersion; H-370 stand 1 Kit
$1,185.80
$889
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/d160_package_8501010185010201_8503ea9d-2cad-4d62-b31a-1ec5e4ec27b8.jpg
850102019999 D160 Homogenizer Package 8,000 to 30,000 rpm 1 to 250 mL 110V, 60Hz Drive Motor; DS-160/10 10mm dia. generator, flat head-open slot, 115mm immersion; H-370 stand 1 Kit
$1,425.60
$1,069
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/d160_motor_only_85020301.jpg
850103019999 D160 Homogenizer 8,000 to 30,000 rpm 0.1 to 250 ml 110V, 60Hz Drive Motor Only 1 Each
$261.80
$196
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

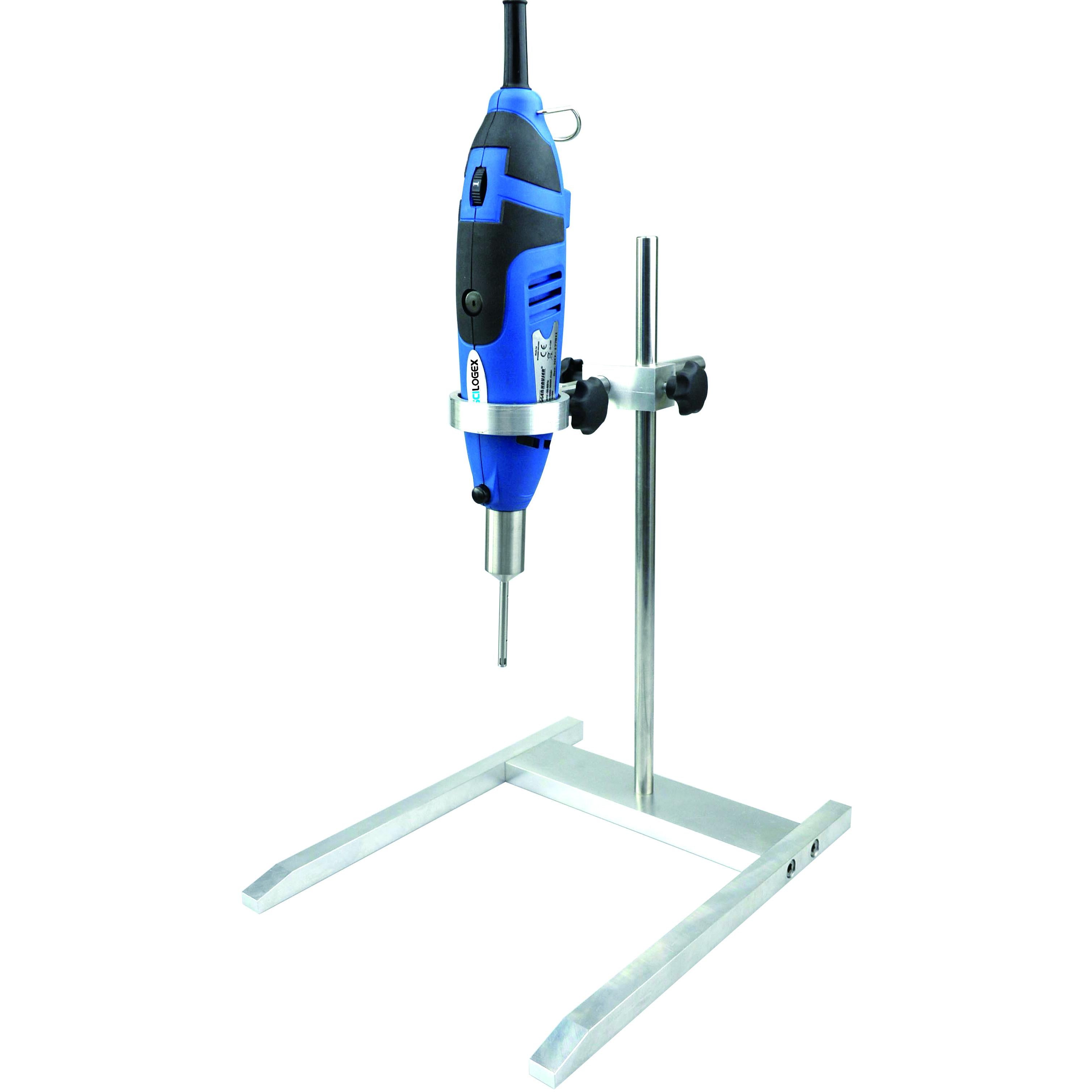

The Scilogex D160 Homogenizer can rapidly homogenize, disperse, and emulsify samples from 0.1-250ml solids or liquid media depending on the generating probe. During operation, the suspended material is drawn into the core of the homogenizer by a rotor turning at up to 30,000rpm. The material is repeatedly cycled through narrow slits in the probe where it is rapidly sheared and disintegrated by high shear. Complete homogenization of tissues (muscle, liver, breast tissue, etc.) is usually achieved in a few seconds. Little, if any, heat is produced during the process.

D160 Homogenizer Features:

  • Ideal for mixing, emulsification, shredding, or chopping
  • Practical answer for small samples
  • Saw Tooth generators for tissue homogenization available
  • Easy to hold and light weight for one hand operation
  • Generators are made of 316L Stainless Steel with PTFE bushings
  • Autoclavable stainless steel shafts. Inert to aggressive solutions
  • All shafts are interchangeable shafts and are easily removed for cleanup
  • High speed motor. Speed control from 8,000 to 30,000 rpm
  • Suitable for solvents & abrasive substances
  • 1 YEAR WARRANTY

Specifications

Model D160
Speed range 8,000-30,000rpm
Sample volume range 0.1 - 250ml
Speed control 6 position control dial
Motor type Universal motor, 130 Watt
pH range 2-13
Fineness Suspensions & Emulsion 10-15 & 1-10um
Noise emission 54 dB(A) at 30,000 rpm
Dimensions 2.5L x 2.5W x 8H inches (drive only)
Weight 18lbs (with stand)
1.5lbs (drive only)
Voltage 110Volts, 60Hz
