Shel Lab® SCO Water Jacketed CO2 Incubators
Image SKU Description Capacity Temperature Range Electrical Quantity Price Add to Cart
files/sco2w_water_jacketed_co2_incubator_rdf_b0ac6349-42bf-4287-a8be-2083bbef3dcd.jpg

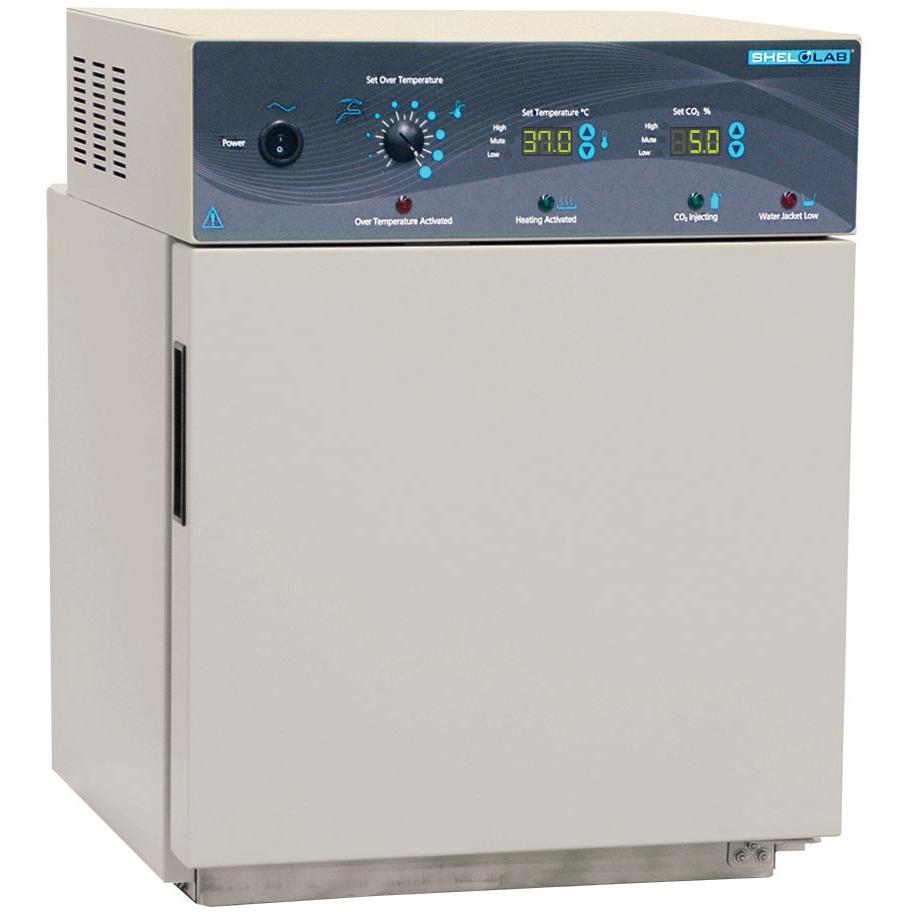

SCO2W SCO2W Water Jacketed CO2 Incubator 1.5 cu ft Ambient +5 °C to 60 °C 110-120 VAC, 50/60 Hz, 5.0 A 1 Each $6,496
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
files/sco5w_water_jacketed_co2_incubator_a0484c9e-02e3-4b3d-9b86-160992d031af.jpg

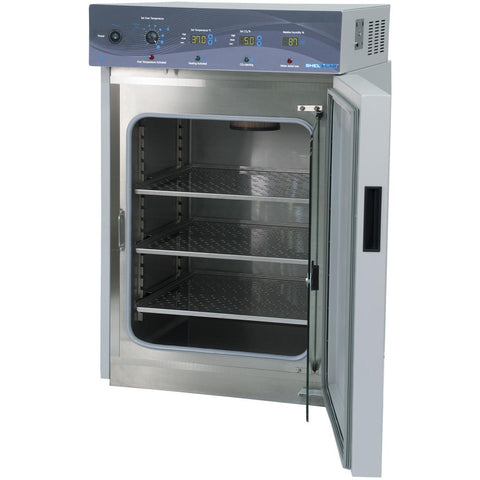

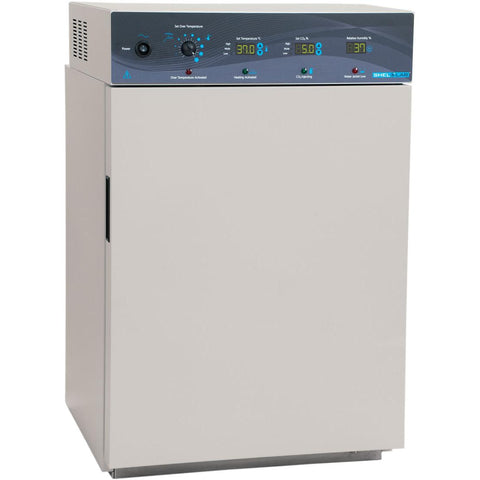

SCO5W SCO5W Water Jacketed CO2 Incubator 5.1 cu ft Ambient +5 °C to 60 °C 110-120 VAC, 50/60 Hz, 5.0 A 1 Each $9,642
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
files/sco6we_economy_water_jacketed_co2_incubator_1a17f5c7-7c72-4327-b7f9-43c81b18d23a.jpg

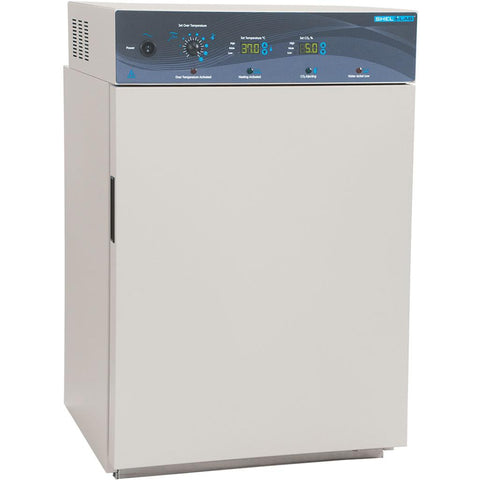

SCO6WE SCO6WE Water Jacketed CO2 Incubator 5.9 cu ft Ambient +5 °C to 60 °C 110-120 VAC, 50/60 Hz, 5.0 A 1 Each $8,101
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

SCO water jacketed CO2 incubators provide the uniform temperatures and highly stable CO2 environments necessary to prevent shocks to cell samples. Extensive use of copper in the CO2 sample port, humidity reservoir, heated CO2 feed line, and housing of the patented HEPA filtration system adds reassurance that foreign microbes will not affect test results. Cleanup is a breeze with the all stainless steel chamber, coved corners, and autoclavable door gasket. Optional copper shelves are available for even more contamination control.

Features

  • Infrared (IR) CO2_Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability
  • Unique water jacket design provides excellent temperature uniformity of +/-0.2°C at 37°C
  • Humidity levels maintained through evaporation of up to 95%
  • Data logging capabilities
  • Designed to minimize contamination
  • Patented copper-caged HEPA filter
  • Heated door to ensure superior temperature uniformity and also reduce the potential for condensation to form on the inner glass door
  • Durable stainless steel chamber with coved corners for easy cleaning
  • Exclusive heated copper CO2 inlet not only promotes temperature uniformity but also prevents moisture from being introduced into the chamber
  • Copper shelving option
  • Autoclavable shelving system
  • Industry best warranty – 5 years parts and labor in the USA, 7 years on the IR sensor

Specifications

Model SCO2W SCO5W SCO6WE
Exterior Dimensions (W × D × H) 21" × 22.5" × 27" 26" × 25.5" × 40.3" 26" × 26.3" × 40.3"
Interior Dimensions (W × D × H) 15.7" × 15.7" × 10.2" 19.3" × 19.8 × 23" 20.3" × 19.8" × 25.3"
Volume 1.5 cu. ft. (42 L) 5.1 cu. ft. (144 L) 5.9 cu. ft. (166 L)
Shelf Dimensions 13.9" × 14" 19.1" × 19.1" 19.1" × 19.1"
Unit Weight 136 lbs 254 lbs 260 lbs
Interior Metal 300 Stainless Steel 300 Stainless Steel 300 Stainless Steel
Exterior Metal Painted Cold Roll Steel Painted Cold Roll Steel Painted Cold Roll Steel
Operating Temperature Range Amb +5°C to 60°C Amb +5°C to 60°C Amb +5°C to 60°C
Temperature Uniformity - Midrange 0.2 °C 0.2 °C 0.2 °C
Temperature Stability - Midrange 0.1 °C 0.1 °C 0.1 °C
Controller Type Digital Digital (including Humidity Display) Digital
Display Resolution 0.1 °C 0.1 °C 0.1 °C
Power Voltage, Frequency 110-120 VAC, 50/60 Hz, 5.0 Amps 110-120 VAC, 50/60 Hz, 5.0 Amps 110-120 VAC, 50/60 Hz, 5.0 Amps
Safety Certifications UL 61010-1, EN 61010-1, CSA 61010-1, CE UL 61010-1, EN 61010-1, CSA 61010-1, CE UL 61010-1, EN 61010-1, CSA 61010-1, CE

Documentation

Product Data Sheets
SCO Water Jacketed CO2 Incubator Brochure
SCO2W Water Jacketed CO2 Incubator Operation Manual
SCO5W Water Jacketed CO2 Incubator Operation Manual
SCO6WE Water Jacketed CO2 Incubator Operation Manual
