Shel Lab® SRIP Refrigerated Peltier (B.O.D.) Incubators
| Image | SKU | Description | Capacity | Temperature Range | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
|

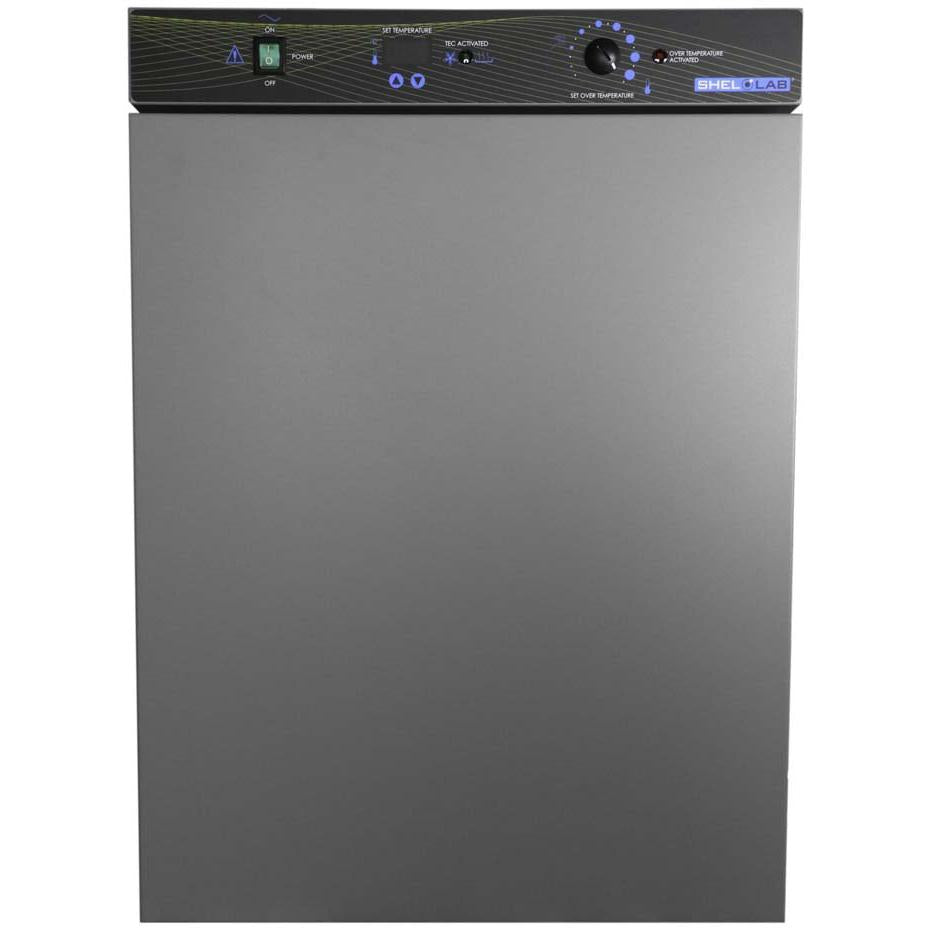

SRI3P | SRI3P B.O.D. Thermoelectric Cooled Incubator | 3.5 cu ft | 15 to 40 °C (at 25°C Ambient) | 100-120 VAC, 50/60 Hz, 4.0 A | 1 Each | $4,234 | |
|

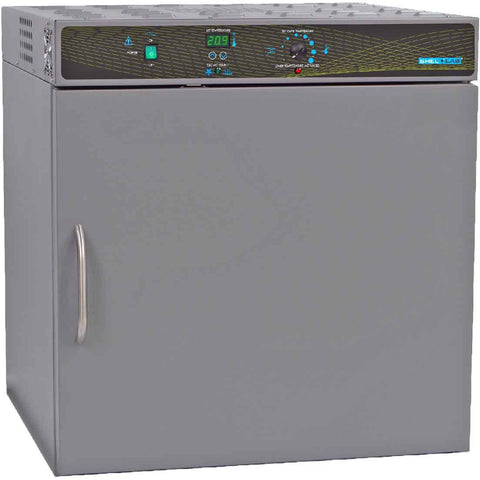

SRI6P | SRI6P B.O.D. Thermoelectric Cooled Incubator | 6.5 cu ft | 15 to 40 °C (at 25°C Ambient) | 100-120 VAC, 50/60 Hz, 4.0 A | 1 Each | $5,502 | |
|

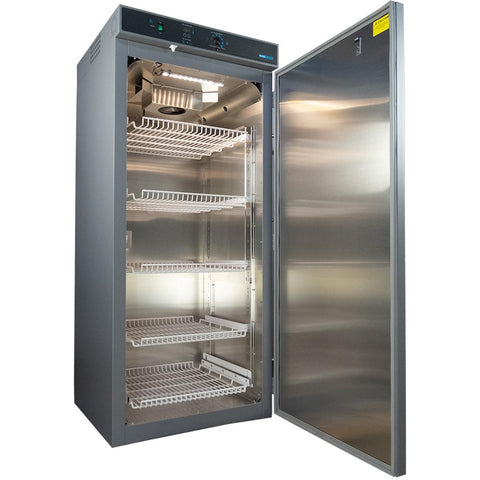

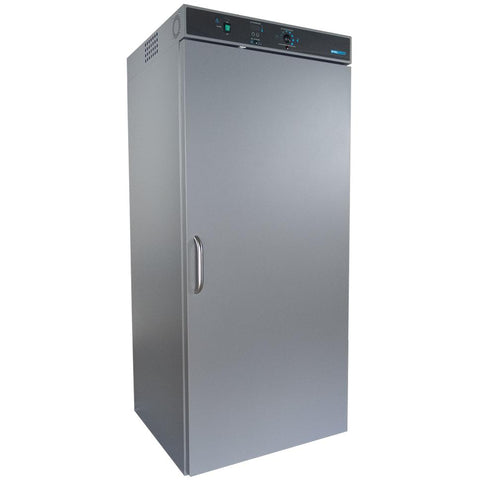

SRI20P | SRI20P B.O.D. Thermoelectric Cooled Incubator | 19.3 cu ft | 15 to 40 °C (at 25°C Ambient) | 100-120 VAC, 50/60 Hz, 5.5 A | 1 Each | $7,699 |
Description
Model SRIP B.O.D. Thermoelectric Cooled Incubators. Using innovative thermoelectric cooling technology, the SRIP Series eliminates the need for a refrigeration compressor. This means that these units use 71% less power than alternative models and reduce room air conditioning loads by 75%. They also include 35-pound capacity shelves, which eliminates sagging.
SRIP incubators meet APHA specifications for Biochemical Oxygen Demand (BOD) and include a mechanical convection system to ensure even air distribution, a digital temperature set controller, over-temperature limit control, and a digital temperature display. A one-amp interior outlet allows the use of shakers, stirrers, roller bottles, or other apparatus. Units are supplied with adjustable leveling feet. SHEL LAB Low-Temperature Incubators are ideal for testing sewage, wastewater, and other low and room temperature applications.
Features
- P.I.D. Temperature Control
- LED Display of Setpoint and Chamber Temperature
- Interior Electrical Outlet
- Door Ajar Alarm
- Fan Assisted/Forced-Air Circulation
- Aluminum Interior
- 24 Month Limited Warranty
Specifications
| Model | SRI3P | SRI6P | SRI20P |
|---|---|---|---|
| Exterior Dimensions (W × D × H) | 24.1" × 21.3" × 33.8" | 30" × 31.5" × 33.5" | 30" × 31.5" × 69.5" |
| Interior Dimensions (W × D × H) | 18.9" × 16.9" × 26.4" | 25.5" × 24" × 18.5" | 25.5" × 24" × 54.5" |
| Volume | 3.5 cu. ft. (99 L) | 6.5 cu. ft. (185.5 L) | 19.3 cu. ft. (546.6 L) |
| Shelf Dimensions | 18.5" × 16.1" | 21.2" × 21.7" | 21.2" × 21.7" |
| Unit Weight | 105 lbs | 125 lbs | 246 lbs |
| Interior | Aluminum | Aluminum | Aluminum |
| Exterior | Painted Cold Roll Steel | Painted Cold Roll Steel | Painted Cold Roll Steel |
| Operating Temperature Range | 15 to 40 °C at 25 °C Ambient | 15 to 40 °C at 25 °C Ambient | 15 to 40 °C at 25 °C Ambient |
| Temperature Uniformity - Midrange | 0.5 °C | 0.5 °C | 0.5 °C |
| Temperature Stability - Midrange | 0.1 °C | 0.1 °C | 0.1 °C |
| Controller Type | Digital | Digital | Digital |
| Display Resolution | 0.1 °C | 0.1 °C | 0.1 °C |
| Power Voltage, Frequency | 100-120 VAC, 50/60 Hz, 4.0 Amps | 100-120 VAC, 50/60 Hz, 4.0 Amps | 100-120 VAC, 50/60 Hz, 5.5 Amps |
| Safety Certifications | UL 61010-1, EN 61010-1, CSA 61010-1, CE | UL 61010-1, EN 61010-1, CSA 61010-1, CE | UL 61010-1, EN 61010-1, CSA 61010-1, CE |
Documentation
| Product Data Sheets |
|---|
| SRIP Peltier BOD Incubator Brochure |
| SRIP Peltier BOD Incubator Operation Manual |
