Soxhlet Apparatus with Heating Mantle
SKU Description Max Temperature Stand Dimensions Quantity Price Add to Cart
HMSOX-250 Soxhlet Extraction Apparatus with Heating Mantle 400° C 20H x 8W in 1 Set
$901
$883
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

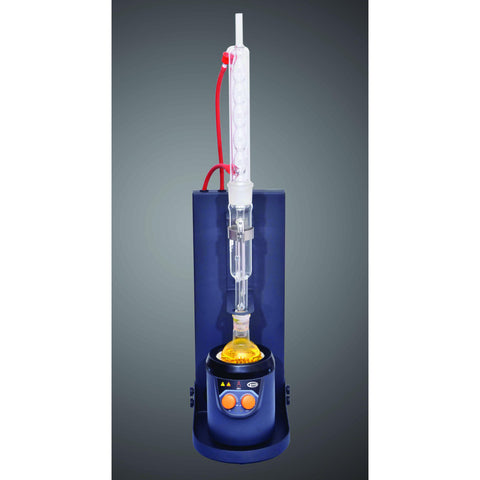

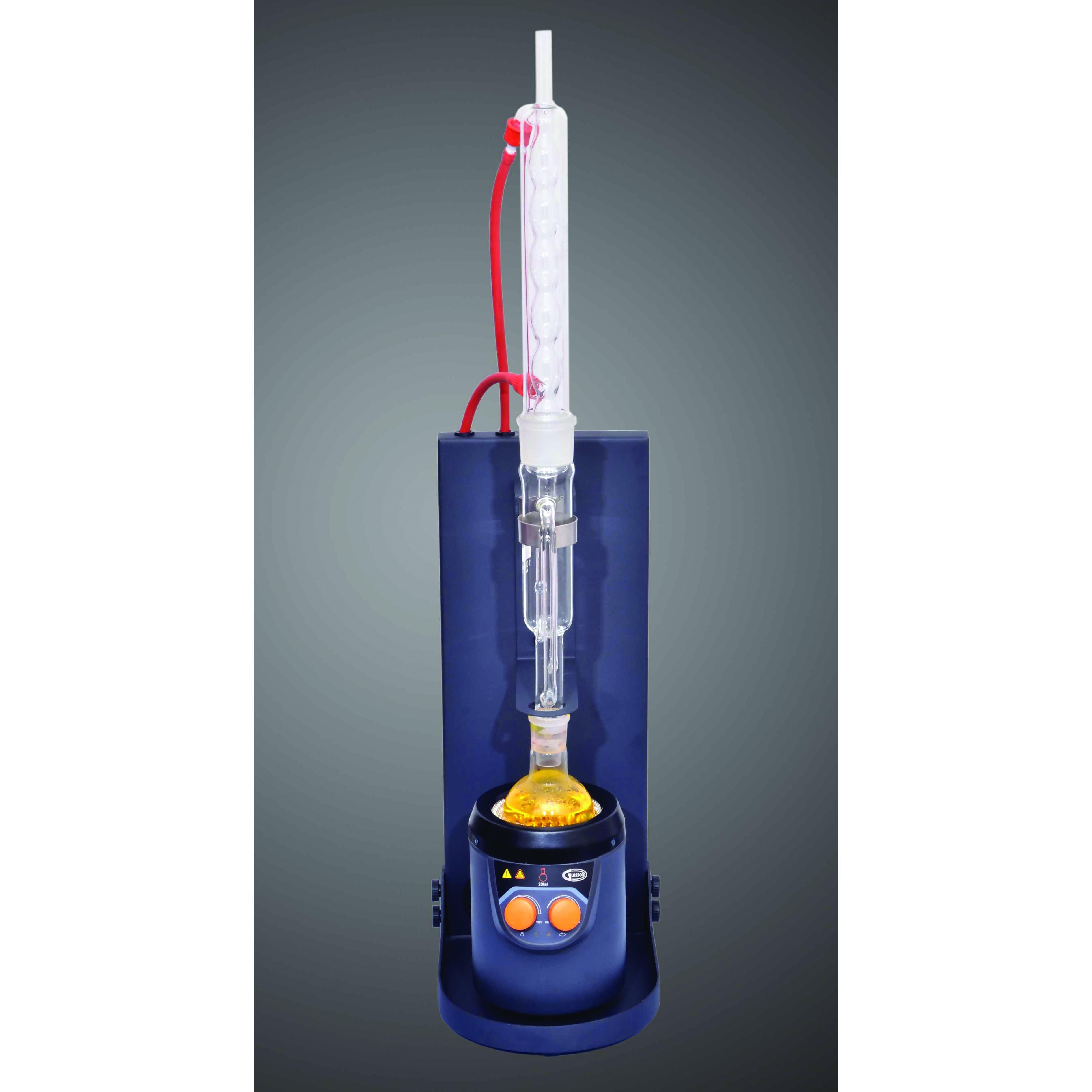

This unique set includes matched components to provide a convenient Soxhlet extraction workstation. The setup includes a heating mantle with stirrer, 250ml borosilicate glass boiling flask, 100ml borosilicate glass Soxhlet extractor, 300mm borosilicate glass Allihin condenser with glass connectors, sturdy powder-coated metal support stand with aluminum clamp and stability bracket, and two 48" lengths of rubber tubing with screw connectors.

The heating mantle with stirrer features a polyurethane coated aluminum exterior and a high quality knitted mantle with glass fiber underlay for uniform distribution of heat. Maximum operating temperature is 400°C. Mantle can be used in a wide range of ambient temperatures, from about 45°F to 100°F, and relative humidity up to 80%. The unit is not waterproof, and is rated as IP code 10 equipment. Stirring function operates at speeds of 50 to 750 RPM. Heating and stirring functions are independently controlled by two separate knobs.

Stand measures 20"H x 8"W with a base platform 10.5"D with a 1" lip.
