Stainless Steel (Grade 304) Grinding Jars
Stainless Steel (Grade 304) Grinding Jars

Stainless Steel (Grade 304) Grinding Jars

Questions? Quotes? Let's chat!
$199
$189 and up
SKU Description Capacity Inner Diameter Outer Diameter Depth Height Compatible Ball Mill Quantity Price Add to Cart
SS.50 Stainless Steel (Grade 304) Grinding Jar With Lid 100 mL 42 mm 64 mm 39 mm 57 mm PQN04 1 Each
$199
$189
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
SS.100 Stainless Steel (Grade 304) Grinding Jar With Lid 100 mL 52 mm 64 mm 52 mm 66 mm PQN04 1 Each
$279
$256
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
SS.500 Stainless Steel (Grade 304) Grinding Jar With Lid 500 mL 90 mm 105 mm 88 mm 103 mm PQN2, PQN4 1 Each
$489
$450
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
SS.1L Stainless Steel (Grade 304) Grinding Jar With Lid 1 L 119 mm 135 mm 100 mm 116 mm PQN4 1 Each
$899
$828
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

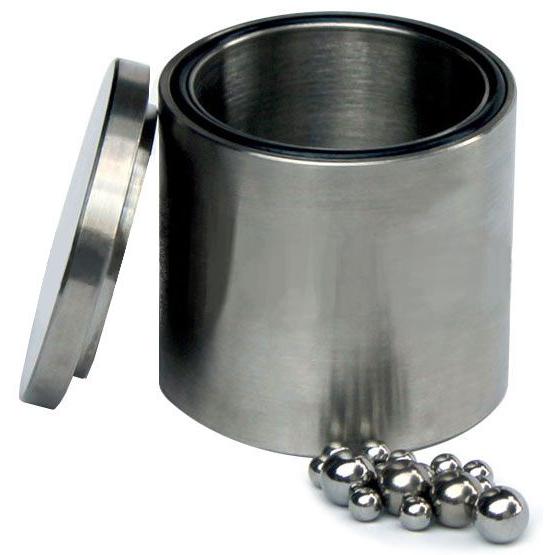

Polished stainless steel (grade 304) grinding jars for planetary ball mills. Each jar set includes grinding jar, lid, silicon sealing gasket and a mixed sizes of stainless steel grinding balls.

Grade 304 is the most widely used austenite steel, also known as 18/8 for its composition of 18% chromium and 8% nickel. 304 may be referred to as A2 stainless (not to be confused with A2 grade steel, also named Tool steel, a steel).

Specifications

Jar size 50 mL 100 mL 500 mL 1 L
Outer diameter (OD) 64 mm 64 mm 105 mm 135 mm
Inner diameter (ID) 42 mm 52 mm 90 mm 119 mm
Total height 57 mm 66 mm 103 mm 116 mm
Depth 39 mm 52 mm 88 mm 100 mm
Total weight 1.8 lbs 2 lbs 6 lbs 13 lbs

Ball Configurations

Jar Size 50 mL 100 mL 500 mL 1000 mL
ball qty 6 mm 50 100 500 1000
ball qty 10 mm 8 16 100 200
ball qty 20 mm 0 0 2 3
