ABS Premier Built-in Undercounter Freezers
| Image | SKU | Description | Capacity | Temperature Range | Defrost Type | Type | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|
|
ABT-HC-UCBI-0420 | ABS Premier Built-In Undercounter Freezer | 4.2 cu ft | -15 to -25 °C | Manual | Standard | 115V, 60Hz, 1.5A 1/8HP, UL/C-UL Listed | 1 Each |
|
|
|
ABT-HC-UCBI-0420-LH | ABS Premier Built-In Undercounter Freezer | 4.2 cu ft | -15 to -25 °C | Manual | Left-hinged | 115V, 60Hz, 1.5A, 1/8HP, UL/C-UL Listed | 1 Each |
|
|
|
ABT-HC-UCBI-0420-ADA | ABS Premier Built-In Undercounter Freezer | 4.2 cu ft | -15 to -25 °C | Manual | ADA compliant | 115V, 60Hz, 1.5A, 1/8 HP, UL/C-UL Listed | 1 Each |
|
|
|
ABT-HC-UCBI-0420-ADA-LH | ABS Premier Built-In Undercounter Freezer | 4.2 cu ft | -15 to -25 °C | Manual | ADA compliant, left-hinged | 115V, 60Hz, 1.5A, 1/8HP, UL/C-UL Listed | 1 Each |
|
|
|
ABT-HC-UCBI-0420SS | ABS Premier Built-In Undercounter Freezer | 4.2 cu ft | -15 to -25 °C | Manual | Stainless steel | 115V, 60Hz, 1.5A, 1/8HP, UL/C-UL Listed | 1 Each |
|
|
|
ABT-HC-UCBI-0420SS-LH | ABS Premier Built-In Undercounter Freezer | 4.2 cu ft | -15 to -25 °C | Manual | Stainless steel, left-hinged | 115V, 60Hz, 1.5A, 1/8HP, UL/C-UL Listed | 1 Each |
|
|
|
ABT-HC-UCBI-0420A | ABS Premier Built-In Undercounter Freezer | 4.2 cu ft | -15 to -25 °C | Auto | Standard | 115V, 60Hz, 1.8A, 1/8HP, UL/C-UL Listed | 1 Each |
|
|
|
ABT-HC-UCBI-0420A-LH | ABS Premier Built-In Undercounter Freezer | 4.2 cu ft | -15 to -25 °C | Auto | Left-hinged | 115V, 60Hz, 1.8 A, 1/8HP, UL/C-UL Listed | 1 Each |
|
Description

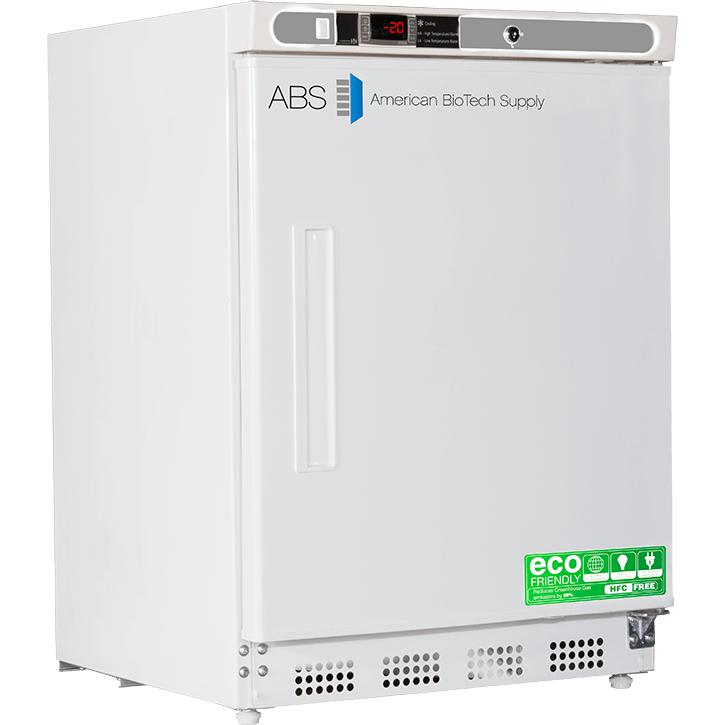

The Premier Built-In Undercounter Freezers feature a microprocessor temperature controller and display, which allows for precise temperature control, verification and recovery versus mechanical style thermostats.The standard temperature display and alarm module offers product security with a monitoring and alarm system. Real-time sample simulated temperatures are constantly displayed and supported by audible/visual high and low temperature alarms. Remote alarm dry contacts and an access port are provided to simplify connections to existing facility monitoring systems.
These models are designed with a "front-breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit, and enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Environmentally friendly, natural hydrocarbon (HC) refrigerants vastly reduce global-warming potential while meeting new EPA/SNAP mandates.
Note that manual defrost freezers require periodic manual defrosting.
Features
- Microprocessor temperature controller
- Digital temperature display with sample simulated probe
- Audible and visual high and low temperature alarms
- Remote alarm contacts (except ABT-HC-UCBI-0420A & ABT-HC-UCBI-0420A-LH)
- Back wall evaporator cover
- Forced draft circulation
- Freezer temperature range: -15°C to -25°C
- Keyed door lock
- Magnetic door gasket for positive seal
- Manual defrost
- Freezer: Auto & Manual defrost available
- NOTE: All products are designed to operate in ambient room temperatures
- not to exceed 75°F/50% RH (relative humidity). Failure to maintain these
- conditions may result in operational and/or performance issues
- Leveling legs
- Probe access port (3/8")
- High density urethane foam cabinet and door insulation
- HFC-free refrigerant, foam insulation and packaging
- Two year parts and labor warranty
- UL/C-UL listed
Specifications
| Part # | Capacity (cu ft) | Temperature Range | Defrost | Doors | Shelves | W (in) | D (in) | H (in) | RL | Volts | Hertz | H.P. | Amps |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ABT-HC-UCBI-0420 | 4.2 | -15°C to -25°C | Manual | 1 Solid | 2 Fixed | 23.75 | 24.5 | 33.375 | R600a | 115 | 60 | 0.125 | 1.5 |
| ABT-HC-UCBI-0420-LH | 4.2 | -15°C to -25°C | Manual | 1 Solid (LH) | 2 Fixed | 23.75 | 24.5 | 33.375 | R600a | 115 | 60 | 0.125 | 1.5 |
| ABT-HC-UCBI-0420-ADA | 4.2 | -15°C to -25°C | Manual | 1 Solid | 2 Fixed | 23.75 | 24.5 | 31.94 | R600a | 115 | 60 | 0.125 | 1.5 |
| ABT-HC-UCBI-0420-ADA-LH | 4.2 | -15°C to -25°C | Manual | 1 Solid (LH) | 2 Fixed | 23.75 | 24.5 | 31.94 | R600a | 115 | 60 | 0.125 | 1.5 |
| ABT-HC-UCBI-0420SS | 4.2 | -15°C to -25°C | Manual | 1 Solid | 2 Fixed | 23.75 | 24.5 | 33.375 | R600a | 115 | 60 | 0.125 | 1.5 |
| ABT-HC-UCBI-0420SS-LH | 4.2 | -15°C to -25°C | Manual | 1 Solid (LH) | 2 Fixed | 23.75 | 24.5 | 33.375 | R600a | 115 | 60 | 0.125 | 1.5 |
| ABT-HC-UCBI-0420A | 4.2 | -15°C to -25°C | Auto | 1 Solid | 3 Adj. | 23.75 | 24.5 | 33.125 | R600a | 115 | 60 | 0.125 | 1.8 |
| ABT-HC-UCBI-0420A-LH | 4.2 | -15°C to -25°C | Auto | 1 Solid (LH) | 3 Adj. | 23.75 | 24.5 | 33.125 | R600a | 115 | 60 | 0.125 | 1.8 |
