ABS Premier Flammable Storage Freezers with Natural Refrigerants
Image SKU Description Capacity Temperature Range Defrost Type Electrical Quantity Price Add to Cart
products/abt_ffp_04_ext_image_9a4e7e2f-2e69-45e9-94cb-4e60cb3d5793.jpg

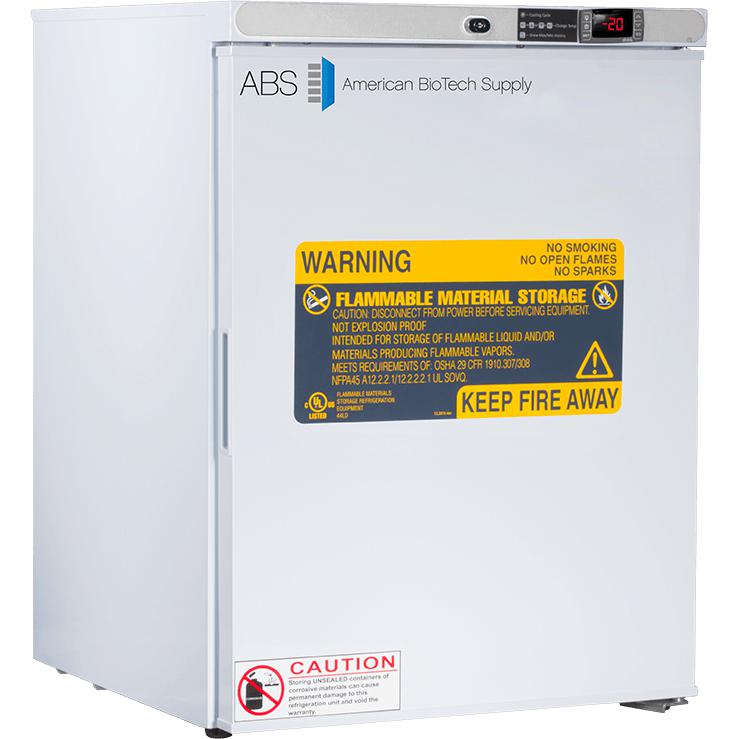

ABT-FFP-04 ABS Flammable Storage Freezer 4 cu ft -15 to -25 °C Manual 115V, 60Hz, 1.2 A, 1/9HP, UL/C-UL Listed 1 Each
$2,596
$2,079
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/abt_hc_ffp_14_ext_image.jpg
ABT-HC-FFP-14 ABS Flammable Storage Freezer 14 cu ft -15 to -25 °C Manual 115V, 60Hz, 1.96A, 1/2HP, UL/C-UL Listed 1 Each
$4,322
$3,355
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/abt_hc_ffp_20_ext_image.jpg
ABT-HC-FFP-20 ABS Flammable Storage Freezer 20 cu ft -15 to -25 °C Manual 115V, 60Hz, 1.96A, 1/2HP, UL/C-UL Listed 1 Each
$5,462
$4,195
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

ABS Premier Flammable Storage Freezers with Natural Refrigerants are purpose-built for scientific and medical applications. This units meet NFPA and OSHA guidelines 45 and 70 for the refrigerated storage of flammable (volatile) materials in general laboratory work areas. The temperature display and alarm module offers product security with a monitoring and alarm system.

Real-time sample simulated temperatures are constantly displayed and supported by audible/ visual high and low temperature alarms. Remote alarm dry contacts and an access port are provided to simplify connections to existing facility monitoring systems. There are no electrical components located in the interior of the unit and the compressor’s electrical components have been sealed in a vapor-proof enclosure for additional safety.

Features

  • Microprocessor Temperature Controller
  • Freezer adjustable operating temperature range: -15°C to -25°C
  • Digital Temperature Display with sample simulated probe
  • Remote alarm contacts
  • Adjustable temperature display in Celsius or Fahrenheit
  • Keyed door lock
  • Audible and visual high/low temperature alarms
  • Magnetic door gasket for positive seal
  • Integrated door handle
  • Leveling legs
  • One probe access port (⅜")
  • White textured cabinet and door
  • Units meet NFPA guidelines 45 and 70
  • High density urethane foam cabinet and door insulation
  • HFC-Free refrigerant, foam insulation and packaging
  • Two year parts and labor warranty
  • Freezer defrost: Manual
  • UL/C-UL listed

Warnings

  • For Manual Defrost Freezers, periodic manual defrosting is required.
  • Units require 4" of clearance on sides and back for adequate ventilation
  • Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
  • All products are designed to operate in ambient room temperatures not to exceed 75°F/50% RH (relative humidity). Failure to maintain these conditions may result in operational and/or performance issues

Specifications

Part # Capacity (cu ft) Temperature Range Defrost Doors Shelves W (in) D (in) H (in) RL Volts Hertz H.P. Amps
ABT-FFP-04 4 -15°C to -25°C Manual 1 Solid 2 Fixed 23.625 24.25 32.2 R600a 115 60 0.125 1.4
ABT-HC-FFP-14 14 -15°C to -25°C Manual 1 Solid 6 Fixed 24.375 24.375 73 R290a 115 60 0.5 1.96
ABT-HC-FFP-20 20 -15°C to -25°C Manual 1 Solid 6 Fixed 28.5 28.5 74.625 R290a 115 60 0.5 1.96
