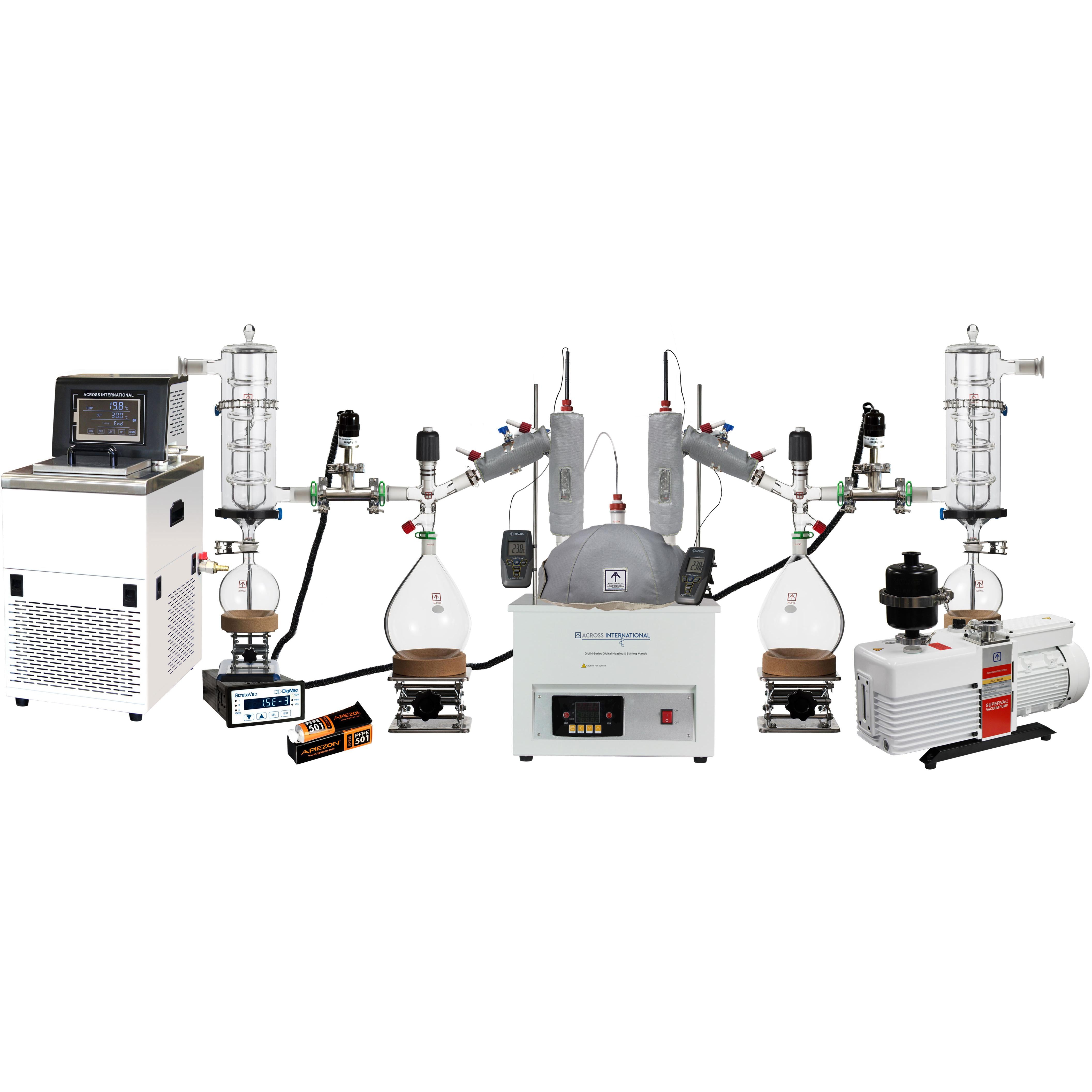

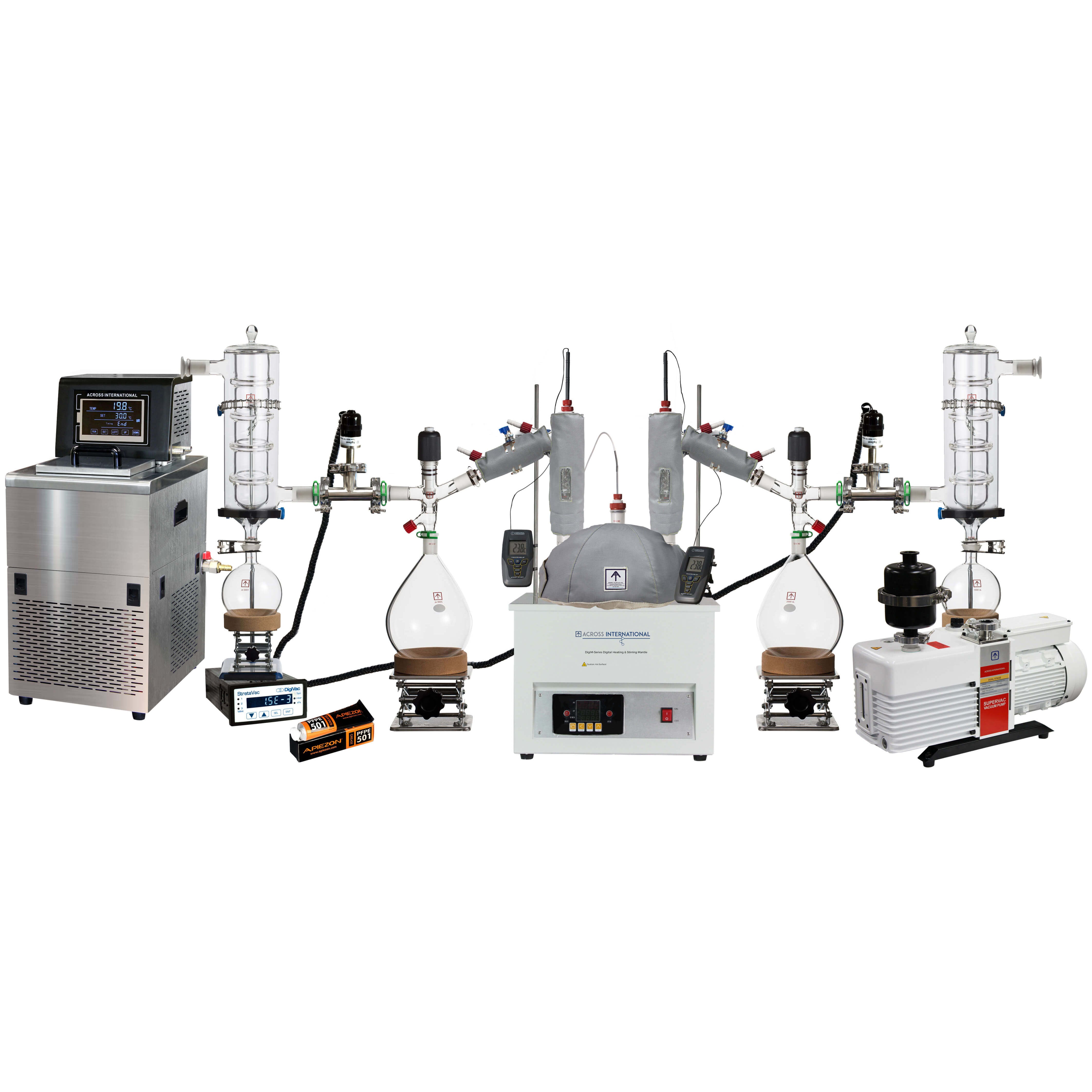

Ai 10L Short Path Distillation Kit, Turn-Key Package - Ai C20 Chiller, Ai SuperVac Pump
SKU Description Quantity Price Add to Cart
CLEAR10S Ai 10L Short Path Distillation Kit, Turn-Key Package - Ai C20 Chiller, Ai SuperVac Pump 1 Kit
$13,000
$11,973
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

The Ai 10 liter short path turn-key system offers you the best glassware and equipment in the market.

Ai Clear10 short path distillation kit features

  • The DigiVac StrataVac gives you deep vacuum and high throughput, it is one of the most accurate and powerful vacuum controllers on the market.
  • 5L distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
  • Ai Heavy wall glassware for durability
  • Vacuum jacketed vapor channel
  • Boiling flask to distillation port: 34/45 joint
  • Thermo port on boiling flask: 24/40 joint
  • Thermo port on distillation head: 14/20 joints
  • Recirculating fluid and vacuum connectors: GL-16 adapter and 3/8" hose barb
  • Glass material: high borosilicate glass 3.3
  • T1 cold traps prevent vapors being evacuated from entering a vacuum pump where they would condense and contaminate it.

Warranty: One year warranty on DigiVac, DigiM mantle, Ai C20 chiller and SuperVac pump.

Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. All glassware is checked prior to shipment.

Package Includes
Description Quantity
DigiVac StrataVac vacuum regulator with dual sensors (100-240V) 1 Each
Ai SuperVac 21 cfm, 0.3 micron, dual-stage, corrosion-resist pump with adjustable gas ballast and exhaust oil mist filter, 110V 1 Each
Ai C20 -20°C to 99°C 7L capacity recirculating chiller, 110V 1 Each
Ai DigiM10 10L digital heating & stirring mantle, 110V 1 Each
Ai T1 1L glass vacuum cold trap for safe vacuum operations 2 Sets
Ai 24/40 & 34/45 joints, heavy wall, vacuum jacketed, 5L distillation head with multiple sets of vigreux, cooling channel, and a 14/20 thermo port 2 Each
Ai heavy wall round bottom 3-neck 10L flask with one vertical 24/40 center neck and two vertical 34/45 side necks 1 Each
PTFE 14/20 and 24/40 joint thermometer inlet adapters with Viton gaskets 3 Each
Ai 14/20 joint, pennyhead glass stopper 2 Each
Ai 24/40 joint, round-top glass feeding funnel 1 Each
Ai 24/40 single cow adapter with PTFE valve and viton gasket 2 Each
Ai 24/40 joint, heavy wall 2000mL pear-shaped receiving flask 2 Each
Ai glass 3/8" hose barb tee adapter 3 Each
Ai glass 24/40 male to male adapter 1 Each
34/45 joint, stainless steel keck clip 2 Each
24/40 joint, stainless steel keck clip 2 Each
24/40 joint, plastic keck clip 8 Each
Cork ring stand for 1L or 2L pear-shaped flasks 2 Each
6 x 6" stainless steel lab jack (min. height 3", max height 9.5") 2 Each
Ai HeadShield fabric insulation sleeve with window for 5L heads (right x 1, left x 1) 2 Each
Ai DrainShield cooling channel fabric insulation sleeve for 5L heads 2 Each
Ai DomeShield 800C rated fabric insulating top for 10L flasks 1 Each
PTFE 24/40 to KF25 flange adapter with viton r-ring 6 Each
KF25 flexible stainless steel vacuum bellow 3.3 feet 4 Each
KF25 quick clamp and centering ring 11 Sets
KF25 3-way tee flange adapter 3 Each
Apiezon PFPE 501 high temp vacuum grease 1 Each
Traceable Kangaroo digital thermometer 2 Each
