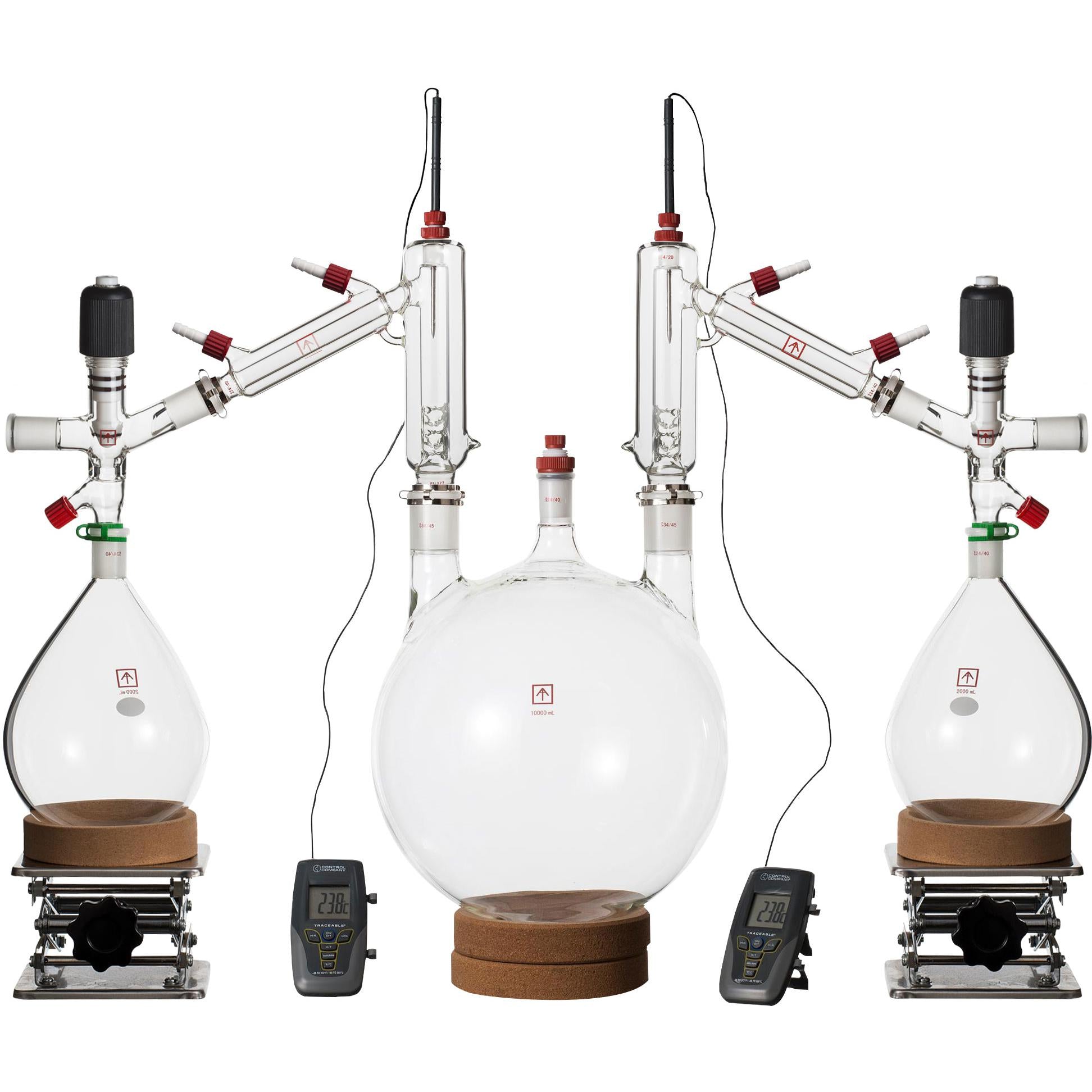

Ai 10L Short Path Distillation Kit, with Valved Adapters
SKU Description Quantity Price Add to Cart
CLEAR10V Ai 10L Short Path Distillation Kit, with Valved Adapters 1 Kit
  • 1
  • 2
  • 3
  • 4
  • 5


Ai Clear10v short path distillation kit with valved adapter features

  • Newly re-designed 5L distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
  • Free PTFE 24/40 and 34/45 joint sealing sleeves increase vacuum level and allow you to achieve better results
  • PTFE 14/20 and 24/40 thermo inlet adapters with FKM gaskets
  • Heavy wall glassware for durability
  • Vacuum jacketed vapor channel
  • Boiling flask to distillation port: 34/45 joint
  • Thermo port on boiling flask: 24/40 joint
  • Thermo port on distillation head: 14/20 joints
  • Recirculating fluid and vacuum connectors: GL-16 adapter and 3/8" hose barb
  • Glass material: high borosilicate glass 3.3

Warranty: Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. All glassware is checked prior to shipment.

Package Includes
Description Quantity
Ai 24/40 & 34/45 joints, heavy wall, vacuum jacketed, 5L distillation head with multiple sets of vigreux, cooling channel, and a 14/20 thermo port 2 Each
Ai heavy wall round bottom 3-neck 10L flask with one vertical 24/40 center neck and two vertical 34/45 side necks 1 Each
PTFE 14/20 and 24/40 joint thermometer inlet adapters with FKM gaskets 3 Each
Ai 14/20 joint, pennyhead glass stopper 2 Each
Ai 24/40 joint, round-top glass feeding funnel 1 Each
Ai valved receiver with two 24/40 joints and one GL16 port 2 Each
Ai 24/40 joint, heavy wall 2000mL pear-shaped receiving flask 2 Each
Ai glass 3/8" hose barb tee adapter 3 Each
34/45 joint, stainless steel keck clip 2 Each
24/40 joint, stainless steel keck clip 2 Each
24/40 joint, plastic keck clip 2 Each
Cork ring stand for 1L or 2L pear-shaped flasks 2 Each
6 x 6" stainless steel lab jack (min. height 3", max height 9.5") 2 Each
Dow Corning high vacuum grease 5.3 oz 1 Each
Traceable Kangaroo digital thermometer 2 Each
PTFE joint seal (24/40 x 4, 34/45 x 2) 6 Each
