Ai DigiM 2L Heating Stirring Mantle, PID Controller

from $690.00 $635.00

SKU DESCRIPTION CAPACITY TEMPERATURE RANGE SPEED RANGE ELECTRICAL QUANTITY PRICE ADD TO CART
DIGIM2.110 Ai DigiM Heating Stirring Mantle, PID Controller 2 L Ambient to 300°C up to 1500 rpm 110V 60Hz 1 Each
$690
$635
DIGIM2.220 Ai DiGIM Heating Stirring Mantle, PID Controller 2 L Ambient to 300°C up to 1500 rpm 220V 50/60Hz 1 Each
$690
$635
DIGIM2-UL.110 Ai DigiM Heating Stirring Mantle, PID Controller, UL/CSA Certified 2 L Ambient to 300°C up to 1500 rpm 110V 60Hz 1 Each
$1,040
$957
DIGIM2-UL.220 Ai DigiM Heating Stirring Mantle, PID Controller, UL/CSA Certified 2 L Ambient to 300°C up to 1500 rpm 220V 50/60Hz 1 Each
$1,040
$957

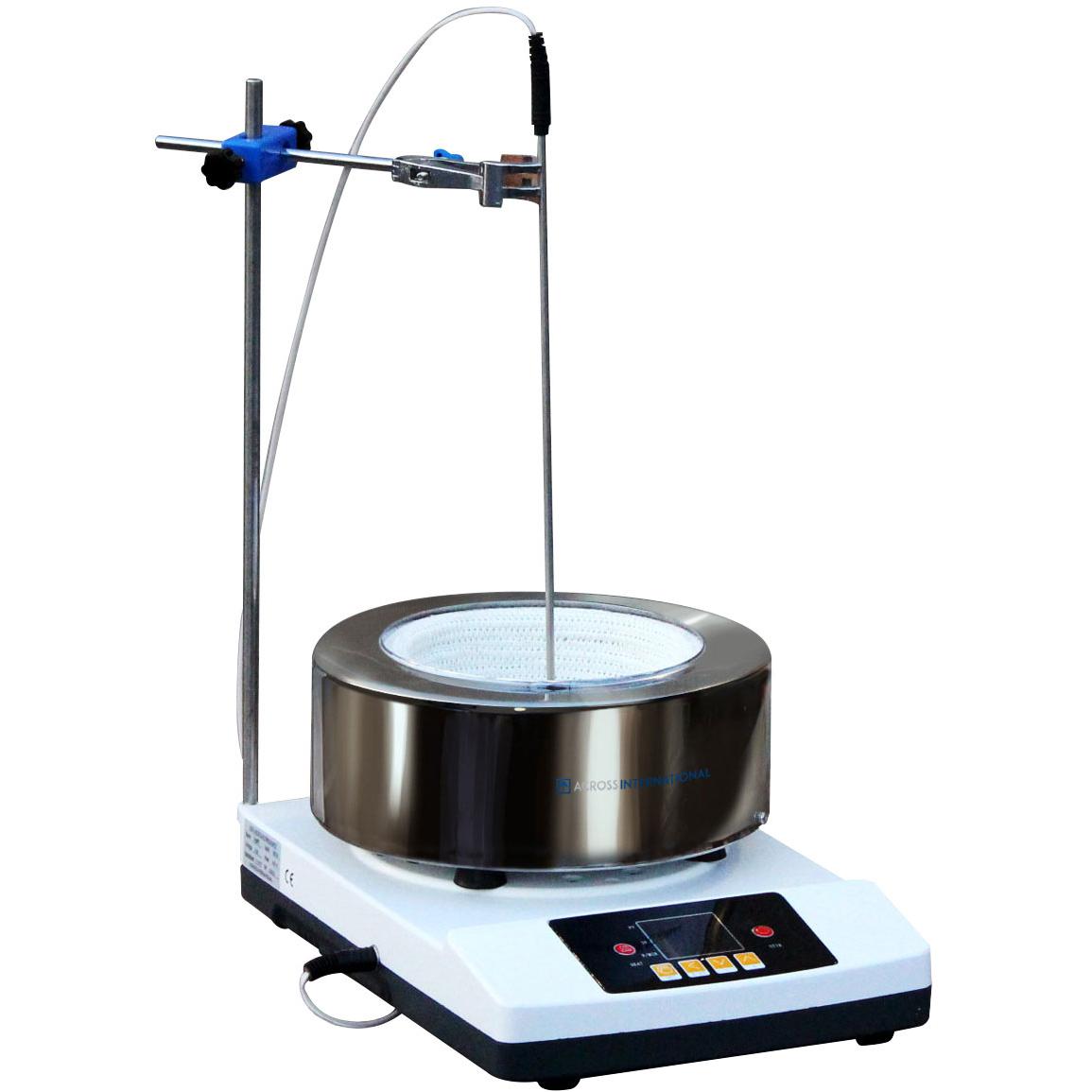

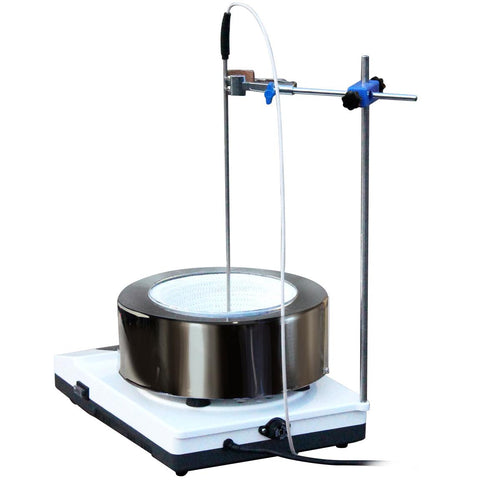

The Ai DigiM heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.

The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.

Package Includes:

  • Ai DigiM 2L heating & stirring mantle (1 each)
  • External temperature probe (1 each)
  • Internal temperature plug (1 each)
  • Boss head clamp (1 each)
  • Stainless steel support rod, 15 inches (1 each)
  • PTFE coated stir bar (1 each)
  • 2L flask cork ring stand (1 each)
  • 4 prong stainless steel clamp, opens to 3 1/2" (1 each)

Specifications

Model DigiM10
Electrical 110V 60Hz 1-Phase, 700 watts, 8A
or
220V 50/60Hz 1-Phase, 700 watts, 4A
Temperture Range Ambient to 300°C
Stirring Maximum speed: 1500 rpm
Motor power: 40 watts
Motor type: brushless DC motor
Controller PID control with digital temperature and rotation speed display
External Thermocouple Type: PT100
Cable length: 40 inches
Stainless steel probe length: 9 inches
Stainless steel probe diameter: 5 mm
Flask holder Maximum flask capacity: 2 liters
Top opening diameter: 6.5 inches
Depth: 4 inches
Dimensions (WxDxH) Unit: 11 x 16 x 8.5 inches,
Shipping: 20 x 14 x 13 inches
Weight Unit: 14 lbs,
Shipping: 25 lbs
Safety Thermocouple failure protection
Certification UL/CSA (optional)
Warranty One Year
