FREE SHIPPING
Analog Stirring Heating Mantles, 400°C
$494
$485
and up
| SKU | Description | Capacity | Max Temperature | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|
| UNAHMTLS-50 | Analog Stirring Heating Mantle | 50 mL | 400 °C | 115 V, 50/60 Hz, 220 W | 1 Each |
|
|
| UNAHMTLS-100 | Analog Stirring Heating Mantle | 100 mL | 400 °C | 115 V, 50/60 Hz, 220 W | 1 Each |
|
|
| UNAHMTLS-250 | Analog Stirring Heating Mantle | 250 mL | 400 °C | 115 V, 50/60 Hz, 220 W | 1 Each |
|
|
| UNAHMTLS-500 | Analog Stirring Heating Mantle | 500 mL | 400 °C | 115 V, 50/60 Hz, 270 W | 1 Each |
|
|
| UNAHMTLS-1000 | Analog Stirring Heating Mantle | 1000 mL | 400 °C | 115 V, 50/60 Hz, 370 W | 1 Each |
|
|
| UNAHMTLS-2000 | Analog Stirring Heating Mantle | 2000 mL | 400 °C | 115 V, 50/60 Hz, 520 W | 1 Each |
|
|
| UNAHMTLS-3000 | Analog Stirring Heating Mantle | 3000 mL | 400 °C | 115 V, 50/60 Hz, 520 W | 1 Each |
|
|
| UNAHMTLS-5000 | Analog Stirring Heating Mantle | 5000 mL | 400 °C | 115 V, 50/60 Hz, 670 W | 1 Each |
|
Description

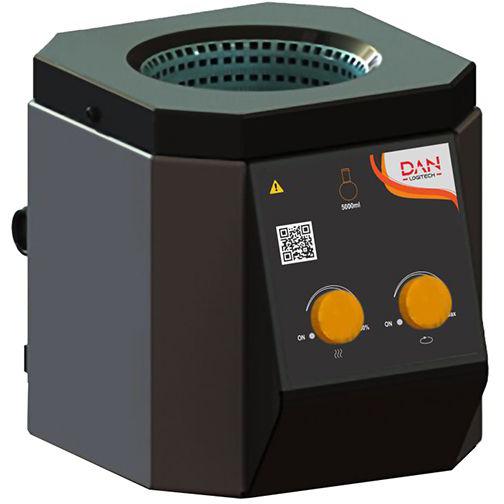

This series of analog heating mantles includes a built-in stirrer function. Separate knobs control the temperature level up to 400°C and stirring speed up to 800 rpm. Case is constructed of durable stainless steel and aluminum materials. Knitted mantle is made from glass fiber yarn and designed to securely hold round bottom flasks with the top half of the flask visible during operation. Available in various sizes to hold flasks from 100 ml to 5000 ml capacity. Includes a spill collect system to drain solution if a flask breaks during use.
Technical Specifications
| Housing Material | Stainless steel and aluminum |
|---|---|
| Mantle Material | Glass fiber yarn |
| Maximum Temperature | 400° C |
| Control Accuracy | 10% |
| Heating Control | Variable |
| Variable Speed Range | 50 to 800 rpm |
| Ambient Temperature Range | 5° to 40° C |
| Maximum Relative Moisture | 80% |
| IP Class | 10 |
