Ai PID Digital Hot Plate Stirrers with Temperature Probe
Image SKU Description Plate Diameter Temperature Range Speed Range Electrical Quantity Price Add to Cart
products/hp5_front.jpg
HP5 Ai PID Digital Hot Plate Stirrer with Temp Probe 5.5 in Ambient to 350 °C 110 to 2000 rpm 110V, 60Hz, 1-Phase, 450W 1 Each
$380
$350
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/hp5_front_6d0dee7b-2d97-4819-bddf-773a9244d71f.jpg
HP5-UL Ai PID Digital Hot Plate Stirrer with Temp Probe 5.5 in Ambient to 350 °C 110 to 2000 rpm 110V, 60Hz, 1-Phase, 450W, UL/CSA Certified 1 Each
$530
$454
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/hp7_front1_5c15452c-4d3b-4a3e-b169-7778fe7d68bb.jpg
HP7 Ai PID Digital Hot Plate Stirrer with Temp Probe 7 in Ambient to 350 °C 110 to 2000 rpm 110V, 60Hz, 1-Phase, 450W 1 Each
$450
$414
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/hp7_front1_f490fc57-f4a7-47ed-b97c-6229825eeac3.jpg
HP7-UL Ai PID Digital Hot Plate Stirrer with Temp Probe 7 in Ambient to 350 °C 110 to 2000 rpm 110V, 60Hz, 1-Phase, 450W, UL/CSA Certified 1 Each
$600
$552
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/hp9_front_99a2f28a-51e7-45ad-8589-1011ef9d6ceb.jpg

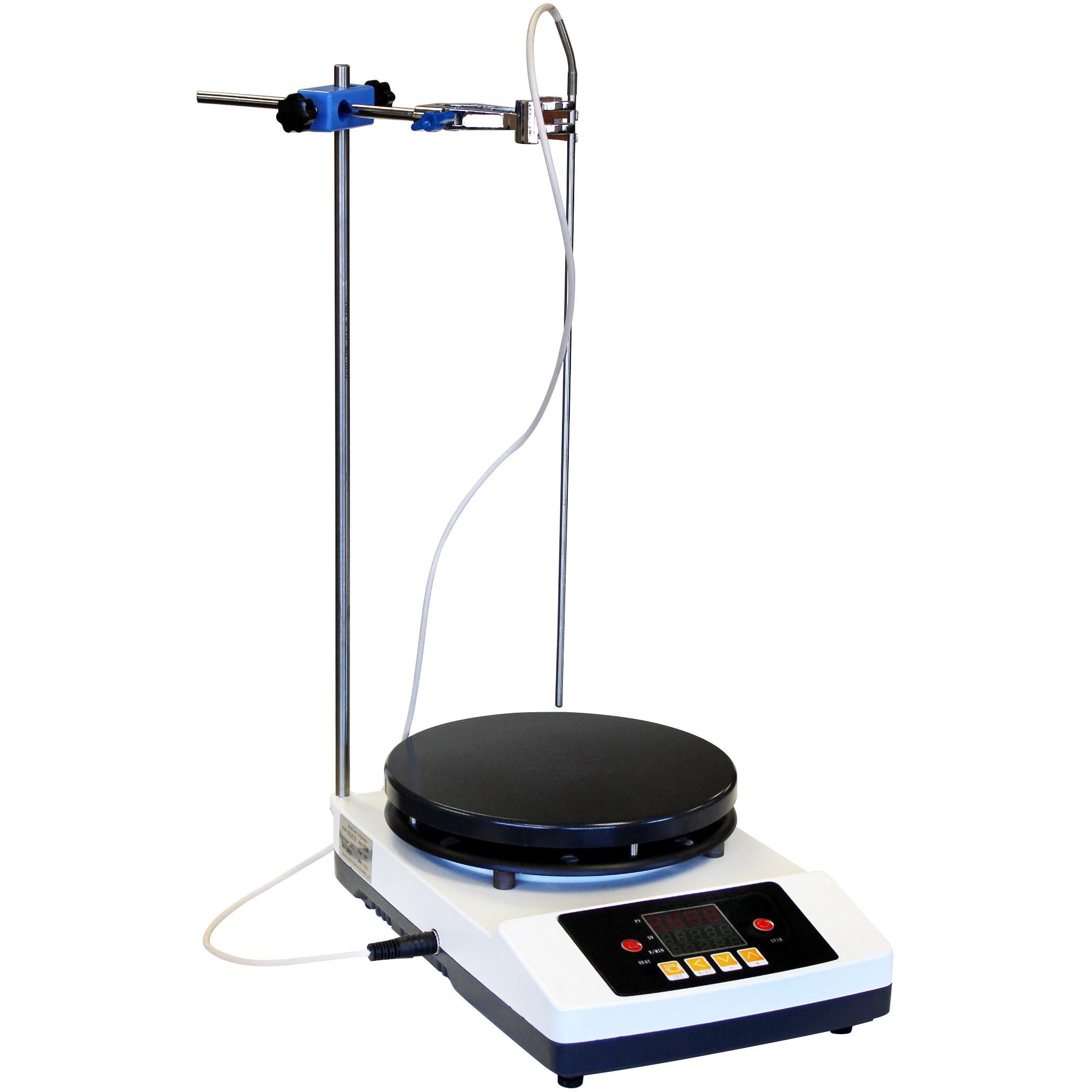

HP9 Ai PID Digital Hot Plate Stirrer with Temp Probe 9 in Ambient to 350 °C 110 to 2000 rpm 110V, 60Hz, 1-Phase, 750W 1 Each
$550
$506
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/hp9_front_c3dc9b8a-b4a8-45d0-9023-fbdd035e43bf.jpg
HP9-UL Ai PID Digital Hot Plate Stirrer with Temp Probe 9 in Ambient to 350 °C 110 to 2000 rpm 110V, 60Hz, 1-Phase, 750W, UL/CSA Certified 1 Each
$700
$644
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/hp11_front.jpg
HP11 Ai PID Digital Hot Plate Stirrer with Temp Probe 11 in Ambient to 350 °C 110 to 2000 rpm 110V, 60Hz 1-Phase, 1000W 1 Each
$650
$598
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/hp11_front_66cd6075-d8d5-43b5-8383-c048515dfce7.jpg
HP11-UL Ai PID Digital Hot Plate Stirrer with Temp Probe 11 in Ambient to 350 °C 110 to 2000 rpm 110V, 60Hz 1-Phase, 1000W, UL/CSA Certified 1 Each
$800
$736
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

A magnetic stirrer or magnetic mixer is a laboratory device that employs a rotating magnetic field to cause a stir bar (also called "flea") immersed in a liquid to spin very quickly, thus stirring it. The rotating field may be created either by a rotating magnet or a set of stationary electromagnets, placed beneath the vessel with the liquid. Since glass does not affect a magnetic field appreciably (it is transparent to magnetism), and most chemical reactions take place in glass vessels (i.e. see beaker (glassware) or laboratory flasks), magnetic stir bars work well in glass vessels. On the other hand, the limited size of the bar means that magnetic stirrers can only be used for relatively small (under 4 liters) experiments. They also have difficulty dealing with viscous liquids or thick suspensions. For larger volumes or more viscous liquids, some sort of mechanical stirring is typically needed.

Magnetic stirrers are often used in chemistry and biology. They are preferred over gear-driven motorized stirrers because they are quieter, more efficient, and have no moving external parts to break or wear out (other than the simple bar magnet itself). Because of its small size, a stirring bar is more easily cleaned and sterilized than other stirring devices. They do not require lubricants which could contaminate the reaction vessel and the product. They can be used inside hermetically closed vessels or systems, without the need for complicated rotary seals. Magnetic stirrers may also include a hot plate or some other means for heating the liquid.

Includes

  • 1 x Ai digital heated magnetic stirrer
  • 1 x External temperature probe
  • 1 x Internal temperature plug
  • 1 x Boss head clamp
  • 1 x Stainless steel support rod (16 inches)
  • 2 x PTFE coated stir bars
  • 1 x 4 prong stainless steel clamp opens to 3 1/2"
  • 1 x User Manual
  • Specfications

    Model HP5 HP7 HP9 HP11
    Temperature Range Ambient to 350°C
    Heating Plate Diameter 5.5 in. 7 in. 9 in. 11 in.
    Heating Plate Material ceramic coated aluminum
    Stirring Speed 110 to 2000 rpm
    Stirring Motor Power 40 watts
    Stirring Motor Type brushless DC motor
    Max. Stirring Volume
    (water as media)
    0.8 gallon 1 gallon 1.5 gallons 2 gallons
    Controller PID control with digital temperature and rotation speed display
    External Thermocouple PT100 (temperature stability +/- 2%)
    External Thermocouple Cable Length 35 in.
    External Thermocouple Dimensions 280mm x 5mm
    Unit Dimensions (WxDxH) 6.5 x 12 x 4.25 in. 7 x 12.5 x 4.5 in. 9 x 14.5 x 4.5 in. 11 x 16 x 4.75 in.
    Shipping Dimensions (WxDxH) 16 x 9.5 x 7.5 in. 10 x 16 x 9 in. 16 x 20 x 9 in. 16 x 22 x 10 in.
    Unit Weight 9 lbs 10 lbs 13 lbs 18 lbs
    Shipping Weight 18 lbs 20 lbs 25 lbs 32 lbs
    Safety Thermocouple failure protection
    Built-in fuse protection
    Certification UL/CSA (optional); CE (standard)
    Warranty One Year
