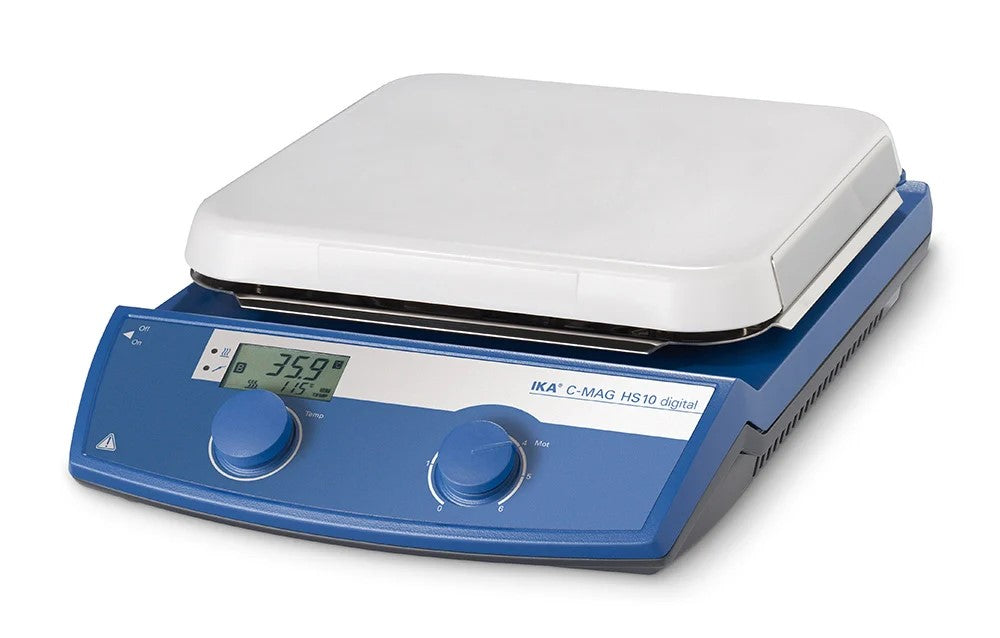

IKA C-MAG HS 10 digital Hot Plate Stirrers
| SKU | Description | Plate Dimensions | Temperature Range | Speed Range | Plate Material | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
| 0004240401 | C-MAG HS 10 digital Hot Plate Stirrer | 260 x 260 mm (10x10 in) | 50 to 500 °C | 100 to 1500 rpm | ceramic | 120 V, 50/60 Hz | 1 Each |
|
Description
C-MAG HS 10 digital
The C-MAG HS 10 digital is a magnetic stirrer with heating, featuring a ceramic heating plate that offers excellent chemical resistance for a wide range of laboratory applications.
Powerful stirring performance
Equipped with a powerful motor, the C-MAG HS 10 digital is capable of stirring quantities of up to 15 liters (H₂O), making it well suited to both small-scale and larger volume applications.
Precise temperature control
The simultaneous digital display of target and actual temperatures via the LCD display allows for clear and continuous monitoring during operation. Direct connection for a PT 1000 temperature sensor — included in the delivery — enables precise temperature control with a control accuracy of ±0.5 K in the medium. When using the PT 1000 temperature sensor, the actual temperature value in the medium is displayed with a resolution of 0.1 K.
Flexible operating modes
The C-MAG HS 10 digital offers three selectable operating modes — standard, safe, and adjustment protection — providing flexibility to suit different laboratory workflows and safety requirements.
Safety features
A fixed safety circuit set at 550 °C provides reliable overtemperature protection. The integrated Hot Top indicator delivers a clear hot surface warning to help prevent burns, alerting users whenever the ceramic plate reaches hazardous temperatures. A digital error code display provides immediate feedback in the event of a fault, and the elevated control panel protects against leaking liquids, ensuring reliable long-term performance in demanding laboratory environments.
Scope of delivery
The C-MAG HS 10 digital comes complete with everything needed for immediate use. The package contains the following items:
- C-MAG HS 10 digital
- PT 1000.60 Temperature sensor, stainless steel
- IKAFLON® 20 Magnetic stirring bar
- IKAFLON® 30 Magnetic stirring bar
- IKAFLON® 40 Magnetic stirring bar
Technical Data
| Number of stirring positions | 1 |
|---|---|
| Stirring quantity max. per stirring position (H₂O) | 15 l |
| Maximum load | 20 kg |
| Motor rating output | 1.5 W |
| Speed adjustment | Scale 0 – 6 |
| Speed range | 100 – 1500 rpm |
| Stirring bar length max. | 80 mm |
| Self-heating of the set-up plate by max. stirring (RT: 22°C / duration: 1h) | +2 K |
| Heat output | 1500 W |
| Temperature display set-value | LCD |
| Temperature display actual-value | LCD |
| Heating temperature range | 50 – 500 °C |
| Heat control | Turning knob |
| Temperature setting resolution of heating plate | 1 K |
| Connection for ext. temperature sensor | PT1000 |
| Temperature setting resolution of medium | 1 K |
| Fixed safety circuit | 550 °C |
| Set-up plate material | Ceramic |
| Set-up plate dimensions | 260 x 260 mm |
| Heating rate (1 l H₂O in H1500) | 5 K/min |
| Dimensions (W x H x D) | 300 x 105 x 415 mm |
| Weight | 8.308 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage | 120 V |
| Frequency | 50/60 Hz |
| Power input | 1520 W |
