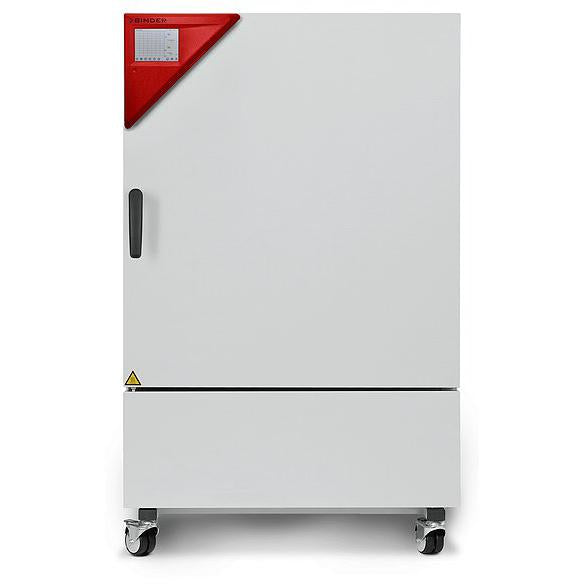

BINDER KBF Humidity Test Chambers with large temperature / humidity range
$18,590
$17,967
and up
| Image | SKU | Description | Capacity | Temperature Range | Humidity Range | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
|
9020-0321 | Model KBF 115 Humidity Test Chamber | 3.6 cu ft | 10 °C to 70 °C | 10 to 80 % RH | 200-240 V, 50/60 Hz, 16 A, UL Certified | 1 Each |
|
|
|
9020-0323 | Model KBF 240 Humidity Test Chamber | 8.7 cu ft | 10 °C to 70 °C | 10 to 80 % RH | 200-240 V, 50/60 Hz, 16 A, UL Certified | 1 Each |
|
|
|
9020-0325 | Model KBF 720 Humidity Test Chamber | 24.7 cu ft | 10 °C to 70 °C | 10 to 80 % RH | 200-240 V, 50/60 Hz, 16 A, UL Certified | 1 Each |
|
|
|
9020-0327 | Model KBF 1020 Humidity Test Chamber | 36 cu ft | 10 °C to 70 °C | 10 to 80 % RH | 200-240 V, 50/60 Hz, 16 A | 1 Each |
|
Description
The BINDER KBF is the specialist for unconditionally reliable stability testing and precise maintenance of constant climate conditions. From programming to documentation, this humidity test chamber meets all critical requirements.
Features:
- Temperature range: 0 °C to 70 °C
- Humidity range: 10 % to 80 % RH
- APT.line™ preheating chamber technology
- Humidity regulation with capacitive humidity sensor and vapor humidification
- Intuitive touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Tight-sealing inner door made of safety glass (ESG)
- Avoidance of glass corrosion by special TIMELESS coating
- Inner chamber made of stainless steel
- 2 stainless steel racks
- Access port with silicone plug, 30 mm, left
- 4 stable castors, two with brakes, from 240 liters
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Computer interface: Ethernet
- Door heating
Documentation
| Product Data Sheets |
|---|
| KBF | KBF-S | KBF P | KBF LQC | KMF Series Brochure |
| KBF | KMF Series Operating Manual |
Specifications
| SKU | 9020-0321 | 9020-0323 | 9020-0325 | 9020-0327 |
|---|---|---|---|---|
| Model | KBF115UL-240V | KBF240UL-240V | KBF720UL-240V | KBF1020-240V |
| Capacity | 3.6 cu ft | 8.7 cu ft | 24.7 cu ft | 36 cu ft |
| Temperature Range | 10 °C to 70 °C | 10 °C to 70 °C | 10 °C to 70 °C | 10 °C to 70 °C |
| Temperature Stability | ±0.1 K at 40 °C | ±0.1 K at 40 °C | ±0.1 K at 40 °C | ±0.1 K at 40 °C |
| Temperature Uniformity | ±0.2 K at 40 °C | ±0.3 K at 40 °C | ±0.2 K at 40 °C | ±0.2 K at 40 °C |
| Humidity Range | 10 to 80 % RH | 10 to 80 % RH | 10 to 80 % RH | 10 to 80 % RH |
| Humidity Stability | ≤2 ± % RH at 40 °C and 75 % RH | ±0.3 % RH at 40 °C and 75 % RH | ±1.5 % RH at 40 °C and 75 % RH | ±1.5 % RH at 40 °C and 75 % RH |
| Recovery Time | 7 mins at 40 °C and 75 % RH | 11 mins at 40 °C and 75 % RH | 17 mins at 40 °C and 75 % RH | 12 mins at 40 °C and 75 % RH |
| Doors | 1 | 1 | 2 | 2 |
| Interior Dimensions | 13.83" D x 19.03" H x 23.64" W | 19.11" D x 30.93" H x 25.61" W | 22.69" D x 49.3" H x 38.34" W | 32.94" D x 49.3" H x 38.45" W |
| Exterior Dimensions | 25.61" D x 41.4" H x 34.67" W | 31.52" D x 57.5" H x 36.45" W | 35.07" D x 75.8" H x 49.3" W | 45.1" D x 75.8" H x 49.3" W |
| Number of Shelves | 2 standard (5 max.) | 2 standard (9 max.) | 2 standard (15 max.) | 2 standard (15 max.) |
| Maximum Load | 220 lbs | 220 lbs | 331 lbs | 331 lbs |
| Electrical | 200-240 V, 50/60 Hz, 16 A, UL Certified | 200-240 V, 50/60 Hz, 16 A, UL Certified | 200-240 V, 50/60 Hz, 16 A, UL Certified | 200-240 V, 50/60 Hz, 16 A |
| Energy Consumption | 470 Wh/h at 40 °C and 75 % RH | 650 Wh/h at 40 °C and 75 % RH | 620 Wh/h at 40 °C and 75 % RH | 650 Wh/h at 40 °C and 75 % RH |
| Noise Level | 52 dB(A) | 52 dB(A) | 53 dB(A) | 56 dB(A) |
| Weight | 282 lbs | 417 lbs | 688 lbs | 836 lbs |
