BINDER KBF P Humidity Test Chambers with ICH-compliant light source
Image SKU Description Capacity Temperature Range Humidity Range Electrical Quantity Price Add to Cart
products/002_9194_50e5fcef-007a-478c-b14b-5689cb0b43d2.jpg

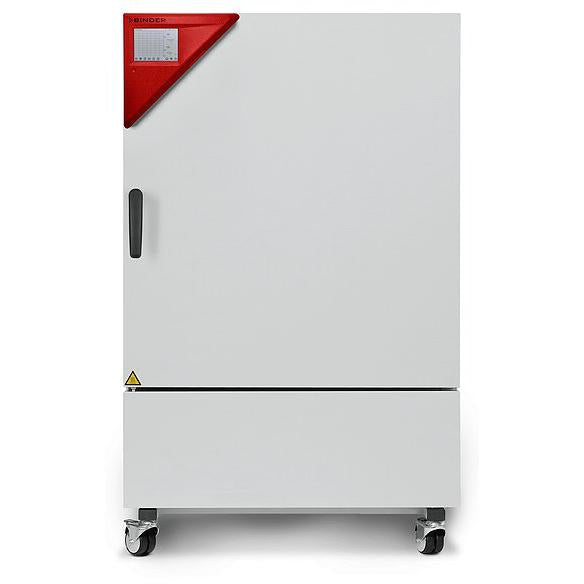

9020-0329 Model KBF P 240 Humidity Test Chamber with ICH-compliant light source 8.7 cu ft 0 °C to 70 °C (10 °C to 60 °C with illumination) 10 to 80 % RH 200-240 V, 50/60 Hz, 16 A, UL Certified 1 Each
$26,206
$25,252
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/002_9198_0be94fd4-8d7e-4f89-9ef1-7b94467ab9ef.jpg
9020-0331 Model KBF P 720 Humidity Test Chamber with ICH-compliant light source 24.7 cu ft 0 °C to 70 °C (10 °C to 60 °C with illumination) 10 to 80 % RH 200-240 V, 50/60 Hz, 16 A, UL Certified 1 Each $33,669
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

The KBF P humidity test chamber, equipped with ICH-compliant light source, is an expert when it comes to photostability tests and ensures clear test results in accordance with ICH Guideline Q1B. At the same time, the variable-position illumination cassettes offer homogeneous lighting conditions.

Features:

  • Temperature range: 0 °C to 70 °C
  • Temperature range with light: 10 °C to 60 °C
  • Humidity range: 10 % to 80 % RH
  • Positionable illumination cassettes with ICH-compliant UV/Vis light source
  • APT.line™ preheating chamber technology
  • Humidity regulation with capacitive humidity sensor and vapor humidification
  • Inner chamber made of stainless steel
  • Intuitive touchscreen controller with time-segment and real-time programming
  • Internal data logger, measured values can be read out in open format via USB
  • Unit self-test for comprehensive status analysis
  • Tight-sealing inner door made of safety glass (ESG)
  • Avoidance of glass corrosion by special TIMELESS coating
  • Stainless steel racks
  • Access port with silicone plug, 30 mm, left
  • 4 stable castors, two with brakes
  • Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
  • Computer interface: Ethernet
  • Door heating

Documentation

Product Data Sheets
KBF | KBF-S | KBF P | KBF LQC | KMF Series Brochure
KBF P | KBF LQC | KBWF Series Operating Manual

Specifications

SKU 9020-0329 9020-0331
Model KBFP240UL-240V KBFP720UL-240V
Capacity 8.7 cu ft 24.7 cu ft
Temperature Range 0 °C to 70 °C (10 °C to 60 °C with illumination) 0 °C to 70 °C (10 °C to 60 °C with illumination)
Temperature Stability ±0.2 K at 40 °C ±0.2 K at 40 °C
Temperature Uniformity ±0.6 K at 40 °C ±1.2 K at 40 °C
Humidity Range 10 to 80 % RH 10 to 80 % RH
Humidity Stability ±2 % RH at 40 °C and 75 % RH ±2 % RH at 40 °C and 75 % RH
Illumination ICH compliant for photo stability testing, 7500 lx, 1.1 W/m2 ICH compliant for photo stability testing, 9000 lx, 1.5 W/m2
Number of Illumination Cassettes 2 standard (2 max.) 3 standard (3 max.)
Recovery Time 6 mins at 40 °C and 75 % RH 5 mins at 40 °C and 75 % RH
Doors 1 2
Interior Dimensions 19.11" D x 30.93" H x 25.61" W 22.69" D x 49.3" H x 38.34" W
Exterior Dimensions 31.52" D x 57.5" H x 36.45" W 35.07" D x 75.8" H x 49.3" W
Number of Shelves 2 standard (7 max.) 3 standard (12 max.)
Maximum Load 220 lbs 331 lbs
Electrical 200-240 V, 50/60 Hz, 16 A, UL Certified 200-240 V, 50/60 Hz, 16 A, UL Certified
Energy Consumption 760 Wh/h at 40 °C and 75 % RH 1850 Wh/h at 40 °C and 75 % RH
Noise Level 53 dB(A) 53 dB(A)
Weight 470 lbs 825 lbs
