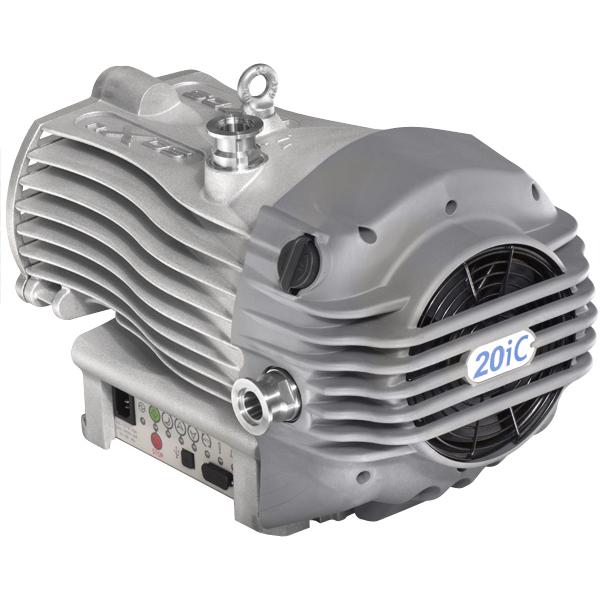

Edwards nXDS20iC Dry Scroll Vacuum Pump
SKU Description Ultimate Pressure Free Air Displacement Electrical Quantity Price Add to Cart
A73802983 nXDS20iC Dry Scroll Vacuum Pump 0.030 mbar / 0.022 Torr 13 cfm / 368 L/min 100 - 127 V, 200 - 240 V, 1ph 50 - 60 Hz 1 Each $14,472
  • 1
  • 2
  • 3
  • 4
  • 5



With exceptional pumping capability, ultimate vacuum performance and state-of-the-art design features, the nXDS dry scroll pump is the best performing pump in its class.

nXDS improves on the original XDS pump technology by offering increased pumping speeds, combined with lower ultimate pressures, low power consumption and reduced noise. The gas ballast allows for pumping of condensable vapours, including water, solvents, dilute acids and bases. nXDS pumps feature the very latest in tip seal technology, giving a significantly longer life between tip seal changes.

nXDS-C has been modified so that it is more suitable for use on vapour handling processes and may be used in some applications involving corrosive substances. This chemically resistant version is fitted with Chemraz® internal valves and stainless steel fittings.

Chemraz® is a registered trademark of Greene Tweed.


  • Backing turbomolecular pumps
  • Chamber evacuation
  • Chemical applications including gel dryers and solvent recovery
  • Electron microscopy
  • High energy physics
  • Mass spectrometry

Features and Benefits

Lubricant-free within the vacuum envelope and hermetically sealed means a totally clean and dry vacuum to prevent cross contamination.
Advanced scroll-form and tip-seal technologies deliver best‑in-class vacuum performance and unrivalled ultimate vacuum levels.
Unique tip seal design significantly reduces wear to minimise maintenance and extend service life.
Quiet operation with typical noise during operation < 52 dB(A) for minimal environmental impact.
Advanced interface providing a variety of traditional and analogue and digital control methods enabling remote control/monitoring via RS232 or RS485.
Integrated inverter drive with auto sensing input delivers optimised pumping performance globally.
Pump range includes 6, 10, 15 and 20 m3h-1.


Model nXDS20iC
Displacement 28.0 m3h-1 / 16.5 ft3min-1
Peak pumping speed 22.0 m3h-1 / 13.0 ft3min-1
Ultimate vacuum (Total pressure) 0.030 mbar / 0.022 Torr
Nominal rotation speed 1800 rpm
Minimum standby rotational speed 1200 rpm
Speed control resolution (percentage of full rotation speed) 1%
Pumping speed at minimum rotational speed 10
Maximum continuous inlet pressure 50 mbar
Motor power 1-ph 260 W
Power connector 1-ph IEC EN60320 C13
Recommended fuse 10A, 250Vac rms
Weight 25.6 kg / 56 lb
Inlet flange NW25
Exhaust flange NW25
Noise level 52 dB(A)
Vibration at inlet flange < 4.5 mms-1 (rms)
Leak tightness (static) < 1x10-6 mbar ls-1
Operating temperature range 10 to 40 °C / 41 to 104 °F


Product Data Sheets
nXDS DRY SCROLL PUMPS Product Data Sheet
