Filter Adapter Set of 7, Neoprene
SKU Description Quantity Price Add to Cart
FASN07 Neoprene Filter Adapter Set 7 Set
$17.30
$14
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

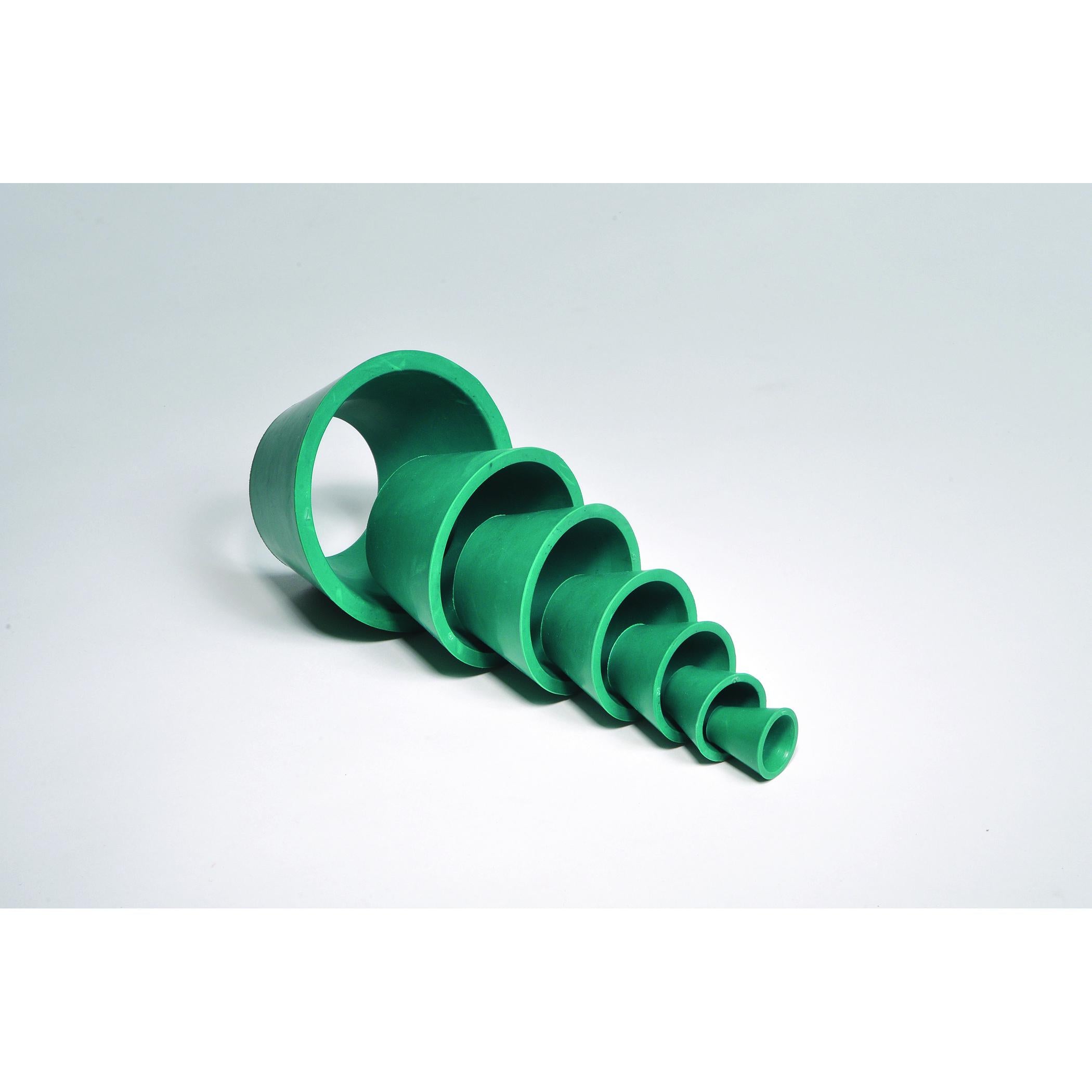

Set of seven neoprene adapter cones designed to fit Buchner and fritted glass funnels, porcelain filters without headpieces, and for reverse flow cleaning of filter crucibles. Adapters can be used to support funnels, Gooch crucibles, filter tubes, and other apparatus in filtration assemblies. These adapters are functional even if not tightly fitted around the funnel stem. Can be used individually or nested with adjacent sizes. Provide an excellent alternative to boring special size holes in rubber stoppers. Autoclavable.

Adapter # Top Outer Diameter Bottom Outer Diameter Top Inner Diameter Bottom Inner Diameter
1 21 mm 10 mm 17 mm 6 mm
2 27 mm 16 mm 20 mm 10 mm
3 36 mm 21 mm 30 mm 15 mm
4 45 mm 27 mm 39 mm 21 mm
5 57 mm 37 mm 50 mm 29 mm
6 70 mm 45 mm 62 mm 35 mm
7 90 mm 55 mm 80 mm 46 mm
