|SKU||Description||Fits||Fitting||Overall Length||Width x Depth||Quantity||Price||Add to Cart|
|CG-1971-120||Glass Baffle for Process Reactor, Korzun||10 to 20 L Reactors||Closed||32 in||20 x 30 mm||1 Each||
|CG-1971-122||Glass Baffle for Process Reactor, Korzun||10 to 20 L Reactors||Closed||32 in||18 x 18 mm||1 Each||
|CG-1971-132||Glass Baffle for Process Reactor, Korzun||30 to 50 L Short Reactors||1/4 in||34 in||20 x 30 mm||1 Each||
|CG-1971-136||Glass Baffle for Process Reactor, Korzun||30 to 50 L Short Reactors||Closed||34 in||20 x 30 mm||1 Each||

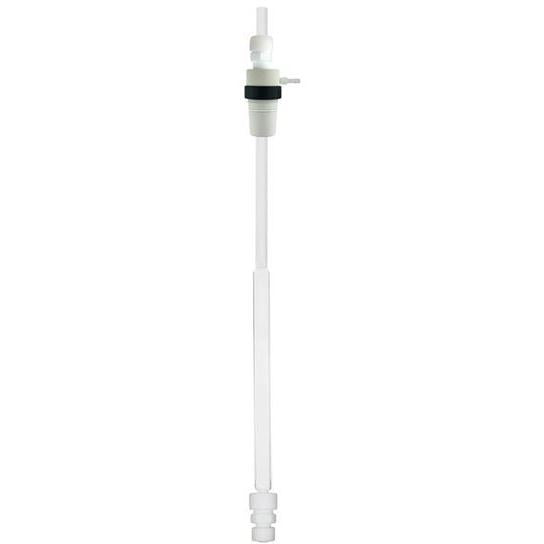

Unique glass baffle system for process reactors from 2L to 50L. Designed to increase agitation in the reactor and mimic baffles found in larger glass lined reactors. All baffles have 3/4" precision ground top and lower tubing for use with compression fittings and top jointed adapter.
- Available in square or rectangular shapes, open or closed bottom
- PTFE joint is offset permitting baffle to be adjusted up to 1" towards the center of the reactor
- Baffle can be vertically adjusted inside reactor
- Hollow baffles allow thermocouples from 1/8" to 1/4" in diameter to be inserted into the reaction
Complete baffles consist of: glass baffle, glass fillted ptfe adapter, and lower ptfe compression fitting.
