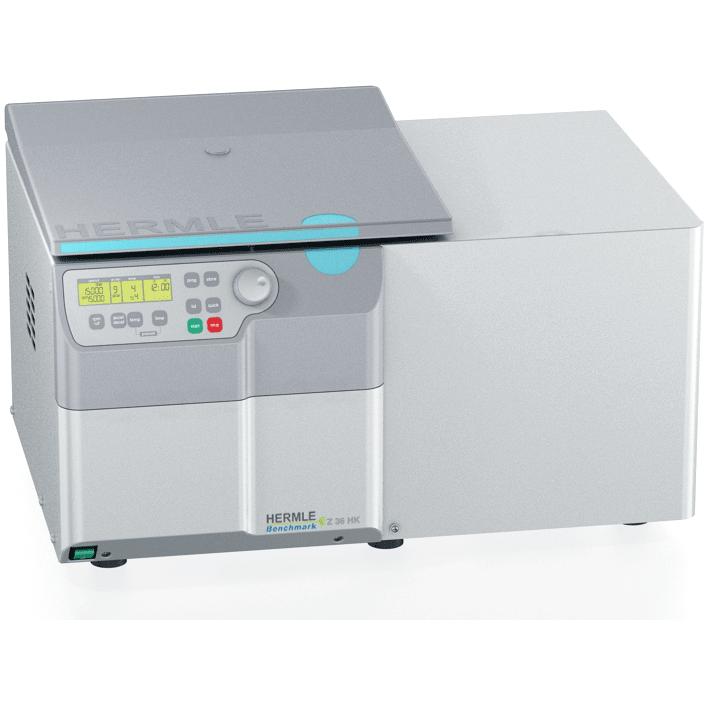

Hermle Z36-HK Super Speed Refrigerated Centrifuge
SKU Description Speed Range Max. RCF Electrical Quantity Price Add to Cart
Z036-HK Super Speed Refrigerated Centrifuge, without rotor 200 to 30000 rpm 65395 xg 120V, 50/60Hz, 1600W 1 Each
  • 1
  • 2
  • 3
  • 4
  • 5


The Z36 HK is the result of many years of experience in the design of universal centrifuges, high speed centrifuges and compact microcentrifuges. The result is a "Super-Speed" centrifuge with unmatched performance among benchtop centrifuges. A robust motor drive powers a variety of high speed angled rotors to speeds that would generally only be achievable in large, floor-standing ultra centrifuges. 2.0ml microtube samples can reach forces above 65,000xg, while 50ml samples, as high as 41,410xg.

In addition to its high speed capabilities, the Z36 HK doubles as a universal centrifuge with a 4 x 250ml swing out rotor (offering inserts for all common tube sizes) as well as a 2 x 3 position swing-out microplate rotor. Advanced microprocessor controls allow for instant rotor identification, which automatically converts the rotational speed to the relevant g-force (rcf), preventing the user from setting a speed above the capabilities of the installed rotor. In addition to retrieving saved programs, the easy to use front panel can adjust accel/decel rates, and change the end of run alarm tone.


  • Benchtop design, with the speed/power of a floor model
  • Super-Speed capability, up to 65,395 xg
  • Wide variety of high speed rotor options
  • Maintenance-free induction drive
  • Microprocessor with large LCD display
  • Motor driven lid lock
  • Automatic radio-frequency rotor identification system (RFID)
  • with over speed protection, immediately upon rotor insertion
  • Active imbalance-identification and cut off (rotor specific)
  • CFC-free refrigeration system
  • A large variety of rotors and accessories
  • Audible signal at the end of each run with several melody options
  • Noise level under 65 dBA at max. speed
  • Manufactured according to international safety regulations, i.e. IEC 61010
  • Imbalance tolerant drive pin
  • Standstill cooling
  • Stainless steel chamber

Distinct Control Panel

  • Simple one handed operation
  • Easy to program with gloves on
  • Splash proof digital display
  • Permanent indication of Preset and Actual Values
  • Selection of speed in both rpm and g-force, with increments of 10
  • 10 acceleration and 10 deceleration rates with storage of up to 99 runs
  • Preselection of the temperature from - 20°C to 40°C with 1°C increments
  • Temperature selection available in both °C or °F
  • Pre-cooling program option
  • Standstill cooling
  • Pre-selection of running time from 10's to 99 h 59 min or continuous
  • Storage of up to 99 runs incl. rotor type
  • Quick-key for short runs
  • Diagnostic program
  • Timer: the centrifuge starts at the preselected time
    • Specifications

      Model Z036-HK
      Speed Range 200 to 30,000 rpm
      Max. RCF 65,395 x g
      Max Capacity 6 x 250mL
      Temperature Range -20°C to 40°C
      Timer up to 99 hr, 59 min.
      Dimensions (W x D x H) 28.1 x 20 x 16.5 in.
      Weight 200 lbs (91 kg)
      Electrical 120V, 50/60Hz, 1600W
