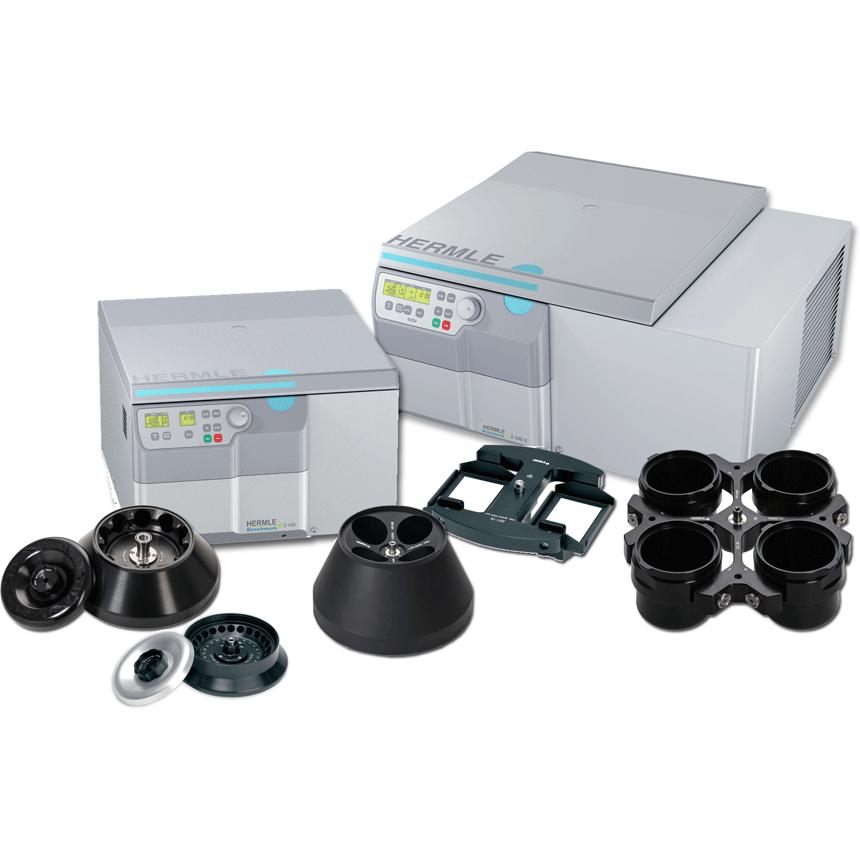

Hermle Z446 High Capacity Centrifuge
Image SKU Description Speed Range Max. RCF Temperature Range Electrical Quantity Price Add to Cart
products/z446_main.jpg
Z446 High Capacity Centrifuge, without rotor 200 to 16,000 rpm 24,325 x g N/A 120V, 50/60Hz, 640W 1 Each
$8,601.01
$7,568.89
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/z446_k_main.jpg
Z446-K High Capacity Centrifuge, Refrigerated, without rotor 200 to 16,000 rpm 24,325 x g -20 to 40 °C 120V, 50/60Hz, 1630W 1 Each
$12,505.06
$11,004.46
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

The Z446 universal centrifuge series offers the highest capacity of any benchtop Hermle-Benchmark model. With air-craft grade, premium alloy construction, the 4 x 750mL swing out rotor can withstand centrifugal forces upwards of 4,500 xg with full loads of up to 28 x 50mL, 68 x 15mL tubes, and up to 20 x microplates.

Advanced microprocessor controls allow for instant rotor identification,which automatically converts the rotational speed to the relevant g-force (rcf), preventing the user from setting a speed above the capabilities of the installed rotor. In addition to retrieving saved programs, the easy to use front panel can adjust accel/decel rates, and change the end of run alarm tone.

Rotor exchange is simple and requires less than one minute. An included rotor wrench can be used to loosen and install all rotors. As soon as the rotor is placed on the motor shaft, the identification process activates and the installed rotor code is displayed on the backlit LCD display.

Features

  • HIGH CAPACITY 4 x 750mL swing out rotor, – Up to 68 x 15mL or 28 x 50mL
  • Speed up to 16,000 rpm
  • G-Force up to 26,328 x g
  • Ideal for tissue culture applications
  • Advanced programming with automatic rotor recognition
  • Available with refrigeration (Z446-K only)
  • Microprocessor Control
  • Over-speed protection
  • Automatic rotor identification
  • Program Storage (99)
  • Pre-Cool function (Z446-K only)
  • Momentary spin button
  • Imbalance detection
  • Adjustable Accel/Decel
  • Audible end of run alarm
  • Maintenance free induction drive
  • Motor driven safety lid-lock
  • Quiet operation, less than 65 DB
  • Splash proof display

Specifications

Model Z446 Z446-K
Speed Range 200 to 16,000 rpm 200 to 16,000 rpm
Max. RCF 24,325 x g 24,325 x g
Max Capacity 4 x 750 mL 4 x 750 mL
Temp Range N/A -20°C to 40°C
Timer up to 99 hr, 59 min. up to 99 hr, 59 min.
Dimensions (W x D x H) 21.3 x 26.4 x 15.4 in. 28.7 x 26.4 x 15.4 in
Weight 174 lbs (79 kg) 244 lbs (111 kg)
Electrical 120V, 50/60 Hz 120V, 50/60 Hz
Power Draw 640W 1630W
