Huber KISS K6 Refrigerated Heating Circulators
SKU Description Filling Volume Temperature Range Temperature Stability Electrical Quantity Price Add to Cart

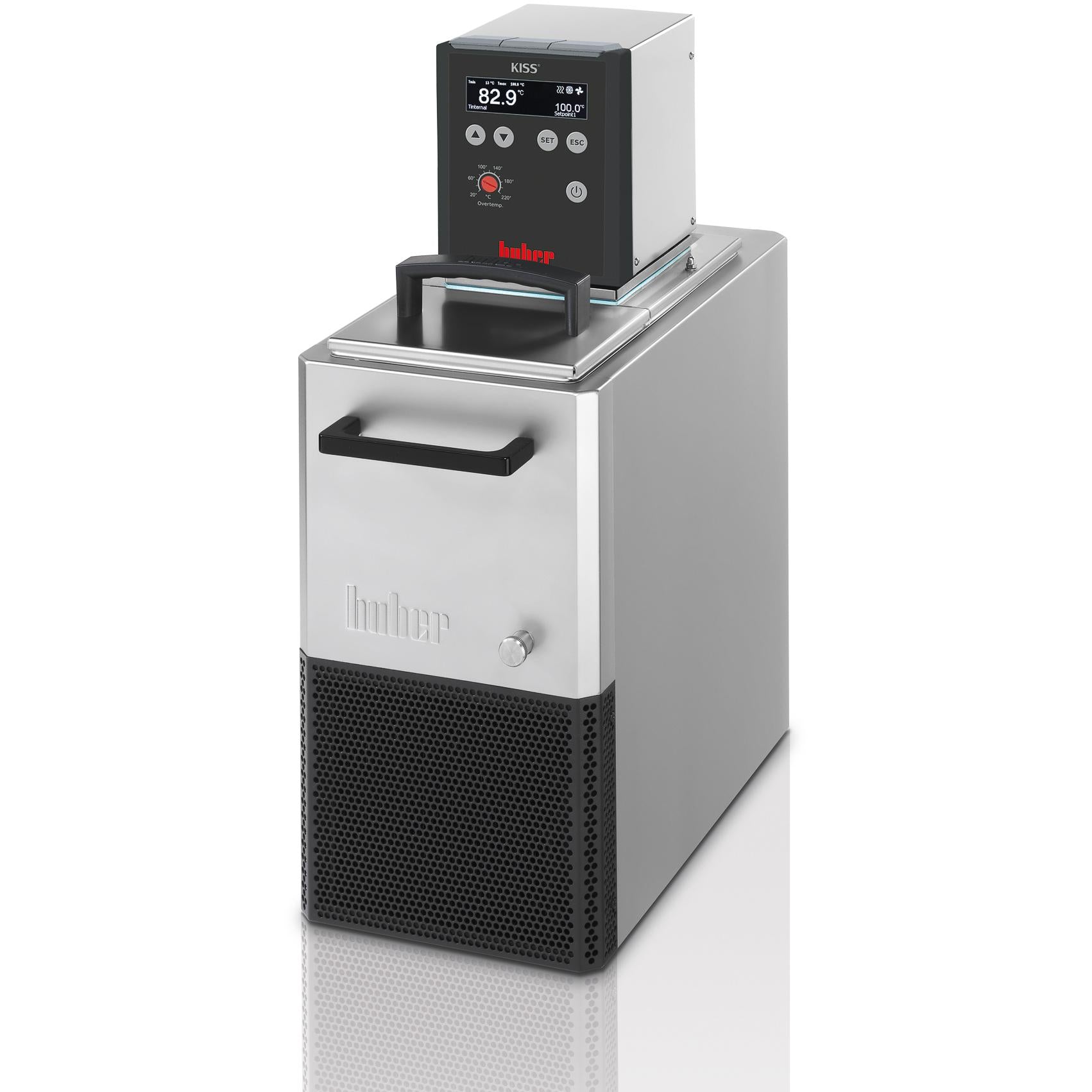

2008.0045.98 KISS K6 Refrigerated Heating Circulator 4.5 L -25 to 200 °C ±0.05 °C 110V 1~ 50/60Hz 1 Each
  • 1
  • 2
  • 3
  • 4
  • 5
2008.0045.98.UL KISS K6 Refrigerated Heating Circulator 4.5 L -25 to 200 °C ±0.05 °C 110V 1~ 50/60Hz, UL/CSA Certified 1 Each
  • 1
  • 2
  • 3
  • 4
  • 5


Cooling bath thermostats with insulated cooling baths are an economic solution for thermoregulation of objects directly in the thermostat bath. The units are therefore suitable for a number of typical heating and cooling tasks such as sample temperature control, materials testing, quality control, analyses, etc. Cooling circulator operates with natural refrigerants and are therefore offer an environmentally friendly solution to temperature control. In addition, cooling circulators are fitted with automatic refrigeration capacity adjustment, reducing energy consumption and waste heat down to the absolute essential. With low level protection and adjustable over heating protection the units fulfill the requirements of Safety Class III/FL according to DIN 12876. The thermostats can also be used for externally attached applications using the pump connections at the rear.

The new KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

  • KISS temperature controller
  • Bright, large OLED display
  • Simple operation with menu navigation
  • Simultaneous display of setpoint, Tmin, Tmax and actual temperature
  • Status displays for pump, cooling and heating
  • Overtemperature and low level protection
  • Safety class III/FL (DIN 12876)
  • USB and RS232 interfaces
  • Autostart function for power failure


Model 2008.0045.98
KISS K6, 110V
General Information & Temperature Controller
Temperature Range -25 to 200 °C
Temperature Stability ±0.05 °C
Temperature Display OLED Display
Alarm Message Optical, Acoustical
Controller KISS
Safety Class III / FL
Protection Class IP20
Dimensions (W x D x H) 210 x 400 x 546 mm
8.27 x 15.75 x 21.5 inches
Weight 25 kg / 55.12 pounds
Heating / Cooling Capacity
Heating Capacity 1.5 kW
Cooling Capacity 0.2kW @ 20°C; 0.15kW @ 0°C; 0.1kW @ -10°C; 0.05kW @ -20°C
Cooling Machine Air-Cooled
Refrigerant R290 (A3, H220) (0.047 kg)
Circulation Pump
Pressure Pump Max. 14 lpm ; 0.25 bar / 3.7 gpm ; 3.62 psi
Suction Pump Max. 10.5 lpm ; 0.17 bar / 2.77 gpm ; 2.47 psi
Pump Connection M16x1 AG male
Digital Interface USB, RS232
Operating Data
Permissible Ambient Temp. 5 to 40 °C
Bath Opening W x D / BD 140 x 120 / 150 mm; 5.51 x 4.72 / 5.91 inches
Bath Volume 4.5 Liters / 1.19 gal
Power Supply 110V 1~ 50/60Hz
Current Max. 15 + 3,2 A


Product Data Sheets
KISS K6 110V Product Data Sheet
KISS Cooling Bath Circulator Operating Manual
