JULABO CORIO™ Refrigerated/Heating Circulators
Image SKU Description Filling Volume Temperature Range Temperature Stability Electrical Quantity Price Add to Cart
products/corio_cd_200f_1_1a2bf8cd-c959-432e-b6c0-ab28634a55b1.jpg
9012701.02 CORIO CD-200F Refrigerated/Heating Circulator 3 to 4 L -20 to 150 °C ±0.03 °C 115V / 60Hz 1 Each
$5,065
$4,406
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cd_200f_1_2703d591-6240-4904-bd03-01a392e8d2d9.jpg
9012701.13 CORIO CD-200F Refrigerated/Heating Circulator 3 to 4 L -20 to 150 °C ±0.03 °C 230V / 60Hz 1 Each
$5,065
$4,406
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cd_201f_1_436fb77d-c03c-4280-907e-4b982903e2a2.jpg
9012702.02 CORIO CD-201F Refrigerated/Heating Circulator 3 to 4 L -20 to 150 °C ±0.03 °C 115V / 60Hz 1 Each
$5,065
$4,406
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cd_201f_1_10bfe76a-c2fd-48ec-a42a-4565dc419d17.jpg
9012702.13 CORIO CD-201F Refrigerated/Heating Circulator 3 to 4 L -20 to 150 °C ±0.03 °C 230V / 60Hz 1 Each
$5,065
$4,406
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cd_300f_1_8bf0d7a8-b8fb-43d8-8fc2-0b7b29eaf749.jpg
9012703.02 CORIO CD-300F Refrigerated/Heating Circulator 3 to 4 L -20 to 150°C ±0.03 °C 115V / 60Hz 1 Each
$5,859
$5,094
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cd_300f_1_be6387e1-c12f-4ca6-b408-8fdae6274cd0.jpg
9012703.13 CORIO CD-300F Refrigerated/Heating Circulator 3 to 4 L -20 to 150°C ±0.03 °C 230V / 60Hz 1 Each
$5,859
$5,094
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cd_600f_1_d8e8938e-9eaa-42fb-afc9-fede0715adf0.jpg
9012704.02 CORIO CD-600F Refrigerated/Heating Circulator 5 to 7.5 L -35 to 150 °C ±0.03 °C 115V / 60Hz 1 Each
$7,374
$6,412
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cd_600f_1_638cbbaf-4279-4dad-b807-65e3b3d1129d.jpg
9012704.13 CORIO CD-600F Refrigerated/Heating Circulator 5 to 7.5 L -35 to 150 °C ±0.03 °C 230V / 60Hz 1 Each
$7,374
$6,412
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cd_601f_1_d3f061d5-00c5-438b-aab9-24e4a1bc2585.jpg
9012705.02 CORIO CD-601F Refrigerated/Heating Circulator 8 to 10 L -40 to 150 °C ±0.03 °C 115V / 60Hz 1 Each
$8,106
$7,048
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cd_601f_1_597b336b-d2f3-4d30-a951-4dd932f61db0.jpg
9012705.13 CORIO CD-601F Refrigerated/Heating Circulator 8 to 10 L -40 to 150 °C ±0.03 °C 230V / 60Hz 1 Each
$8,106
$7,048
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cd_900f_1_1ae8ea0f-34c3-4257-ad39-a52a50802794.jpg
9012706.02 CORIO CD-900F Refrigerated/Heating Circulator 21 to 30 L -40 to 150 °C ±0.03 °C 115V / 60Hz 1 Each
$8,239
$7,164
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cd_900f_1_73ad6577-c6b7-4c62-bfff-7198dc19cdec.jpg
9012706.13 CORIO CD-900F Refrigerated/Heating Circulator 21 to 30 L -40 to 150 °C ±0.03 °C 230V / 60Hz 1 Each
$8,239
$7,164
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cd_1000f_1_503d37ca-11a1-4285-a8b2-4af25a1358a5.jpg

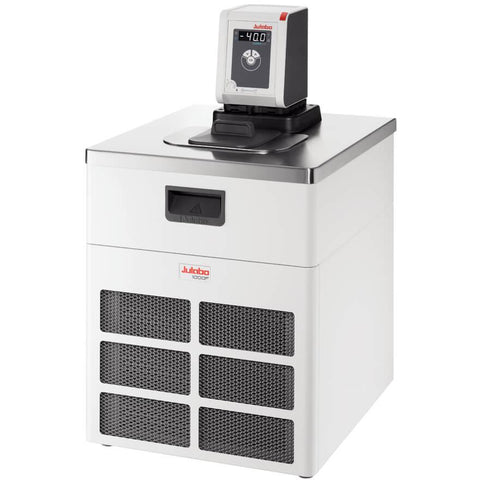

9012707.02 CORIO CD-1000F Refrigerated/Heating Circulator 5 to 7.5 L -40 to 150 °C ±0.03 °C 115V / 60Hz 1 Each
$10,028
$8,720
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cd_1000f_1_bc34dde2-7767-41da-8301-7a5ed3d9c4f6.jpg
9012707.13 CORIO CD-1000F Refrigerated/Heating Circulator 5 to 7.5 L -40 to 150 °C ±0.03 °C 230V / 60Hz 1 Each
$10,028
$8,720
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cd_1001f_1_b0698993-2fe9-4e75-815b-8f1c1a46f002.jpg
9012708.13 CORIO CD-1001F Refrigerated/Heating Circulator 42 to 56 L -38 to 100 °C ±0.03 °C 230V / 60Hz 1 Each
$12,325
$10,717
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

Refrigerated / Heating Circulators of the CORIO™ series distinguish themselves with a great price-to-performance ratio. They are ideal for all standard tasks and routine work in laboratories and industry.

Your advantages

  • Models for internal and external applications
  • Bright, white, easy to read display
  • Very quiet
  • Easy pump change-over (internal and external circulation)
  • External pump connections (M16x1)
  • USB connection
  • Space-saving cooling coil design yields more usable space in the bath tank
  • Bath lid and drain tap included
  • Removable ventilation grid
  • Refrigeration unit without side vents
  • Class III (FL) according to DIN 12876-1

Specifications

Part Number 9012701 9012702 9012703 9012704 9012705 9012706 9012707 9012708
Model Series CORIO
Category Refrigerated / Heating Circulators
Working Temperature Range -20 to 150°C -20 to 150°C -25 to 150°C -35 to 150°C -40 to 150°C -40 to 150°C -40 to 150°C -38 to 100°C
Temperature Control PID
Temperature Stability ±0.03°C
Setting / Display Resolution 0.01°C / 0.1°C
Temperature Display LED
Heating Capacity 1kW 1.5kW
Cooling Capacity (Medium Ethanol) @ 20°C 0.22 kW 0.2 kW 0.31 kW 0.6 kW 0.6 kW 0.9 kW 1 kW 1 kW
Cooling Capacity (Medium Ethanol) @ 0°C 0.17 kW 0.16 kW 0.28 kW 0.53 kW 0.5 kW 0.5 kW 0.9 kW 0.9 kW
Cooling Capacity (Medium Ethanol) @ -20°C 0.06 kW 0.06 kW 0.11 kW 0.22 kW 0.2 kW 0.2 kW 0.5 kW 0.35 kW
Pump Capacity Flow Rate 15 l/min
Pump Capacity Flow Pressure 5.08 psi 5.08 psi 5.08 psi 5.08 psi 4.8 psi 4.8 psi 5.08 psi 5.08 psi
Bath Opening / Bath Depth 5.1" W x 5.9" L / 5.9" D 5.1" W x 5.9" L / 5.9" D 5.1" W x 5.9" L / 5.9" D 8.6" W x 5.9" L / 5.9" D 8.7" W x 5.9" L / 7.9" D 10.2" W x 13.8" L / 7.9" D 7.1" W x 5.1" L / 5.9" D 13.8" W x 16.1" L / 11.8" D
Pump Connections M16x1
Barbed Fittings Diameter 8 / 12 mm
Filling Volume 3 to 4 L 3 to 4 L 3 to 4 L 5 to 7.5 L 8 to 10 L 21 to 30 L 5 to 7.5 L 42 to 56 L
Ambient Temperature 5 to 40°C
Dimensions W x L x H 9.1" x 15.4" x 25.6" 17.4" x 16.2" x 17.4" 9.5" x 16.6" x 26" 16" x 18.5" x 27.2" 14.2" x 18.1" x 29.1" 15.4" x 24.4" x 29.5" 16.5" x 19.3" x 27.6" 17.7" x 25.2" x 37.4"
Weight 57.4 lbs 55.2 lbs 61.8 lbs 79.4 lbs 79.4 lbs 114.6 lbs 113.5 lbs 163.1 lbs
Included with each Unit 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
Bath Tank Stainless Steel
Bath Cover Integrated
Cooling of Compressor Air

Documentation

Product Data Sheet
9012701 Product Data Sheet
9012702 Product Data Sheet
9012703 Product Data Sheet
9012704 Product Data Sheet
9012705 Product Data Sheet
9012706 Product Data Sheet
9012707 Product Data Sheet
9012708 Product Data Sheet
