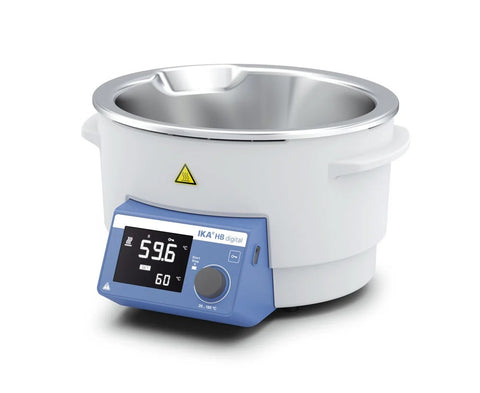

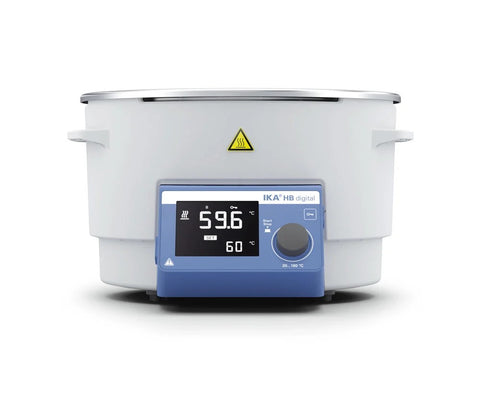

IKA HB 4 Digital Heating Bath
$2,314
$2,198
| SKU | Description | Filling Volume | Temperature Range | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|
| 0020016395 | IKA HB 4 Digital Heating Bath | 4 L | Ambient to 180 °C | 100-120V, 50/60Hz | 1 Each |
|
Description
HB 4 digital
Compact and ergonomic heating safety bath for all tempering media.
- 4 l bath volume (oil and water capable)
- Max. media temperature: 180 °C
- Ergonomic handles
- Key button to lock heating bath temperature
- Clear, black-and-white display
- Safety operating modes A, B, C
- Permanent set-point/ actual temperature display
- USB interface
Scope of delivery
- HB digital
- USB Cable - USB A to Micro-B, 2 m
Technical Data
| Heat output | 1400 W |
|---|---|
| Heating temperature range | room temp. - 180 °C |
| Temperature display | LCD |
| Heat control | Turning knob |
| Set temperature resolution | 1 K |
| Controller oscillation (3 l water / 90 °C) | ±1 K |
| Absolute deviation/mean (3l water / 90 °C) | ±2 K |
| Controller oscillation (3l Silicone oil / 50mPas / 150°C) | ±2 K |
| Absolute deviation/mean (3 l Silicone oil / 50mPas/ 150°C) | ±4 K |
| Filling volume max. | 4 l |
| Filling point min. | 60 mm |
| Material in contact with medium | stainless steel 1.4404 |
| Fixed safety circuit | 190 °C |
| Adjustable safety circuit | 50 - 190 °C |
| Class designation acc. DIN 12876 | II |
| Outer diameter | 257 mm |
| Inner diameter | 225 mm |
| Outer height | 190 mm |
| Inner height | 130 mm |
| Dimensions (W x H x D) | 330 x 190 x 325 mm |
| Weight | 3.9 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| USB interface | Micro-USB |
| Voltage | 100 - 120 V |
| Frequency | 50/60 Hz |
| Power input | 1450 W |
| Power input standby | 3 W |
Documentation
| Datasheet HB 4 digital |
| Manual HB 4 digital |
