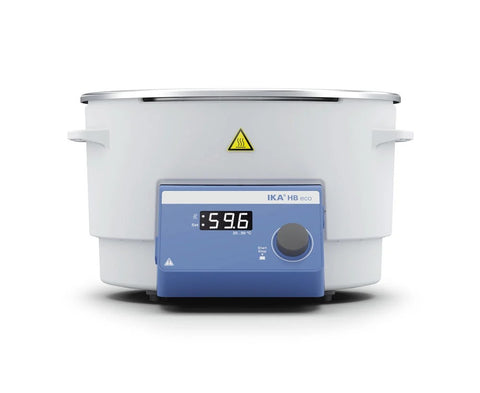

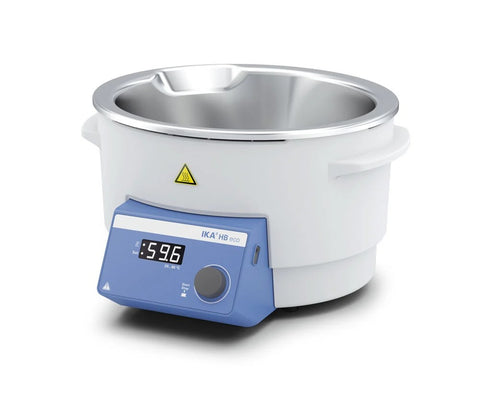

IKA HB 4 Eco Heating Bath
$1,794
$1,704
| SKU | Description | Filling Volume | Temperature Range | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|
| 0020016413 | IKA HB 4 Eco Heating Bath | 4 L | Ambient to 99 °C | 100-120V, 50/60Hz | 1 Each |
|
Description
HB 4 eco
Compact and ergonomic heating bath.
- 4 l bath volume (water only)
- Max. media temperature: 99 °C
- Ergonomic handles
- Temperature display
- Alternating display of set-point/ actual temperature
- USB interface
Scope of delivery
- HB eco
- USB Cable - USB A to Micro-B, 2 m
Technical Data
| Heat output | 1400 W |
|---|---|
| Heating temperature range | room temp. - 99 °C |
| Temperature display | LED |
| Heat control | Turning knob |
| Set temperature resolution | 1 K |
| Controller oscillation (3 l water / 90 °C) | ±1 K |
| Absolute deviation/mean (3l water / 90 °C) | ±2 K |
| Filling volume max. | 4 l |
| Filling point min. | 60 mm |
| Material in contact with medium | stainless steel 1.4404 |
| Fixed safety circuit | 109 °C |
| Class designation acc. DIN 12876 | I |
| Outer diameter | 257 mm |
| Inner diameter | 225 mm |
| Outer height | 190 mm |
| Inner height | 130 mm |
| Dimensions (W x H x D) | 330 x 190 x 325 mm |
| Weight | 3.9 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| USB interface | Micro-USB |
| Voltage | 100 - 120 V |
| Frequency | 50/60 Hz |
| Power input | 1450 W |
| Power input standby | 3 W |
Documentation
| Datasheet HB 4 eco |
| Manual HB 4 eco |
