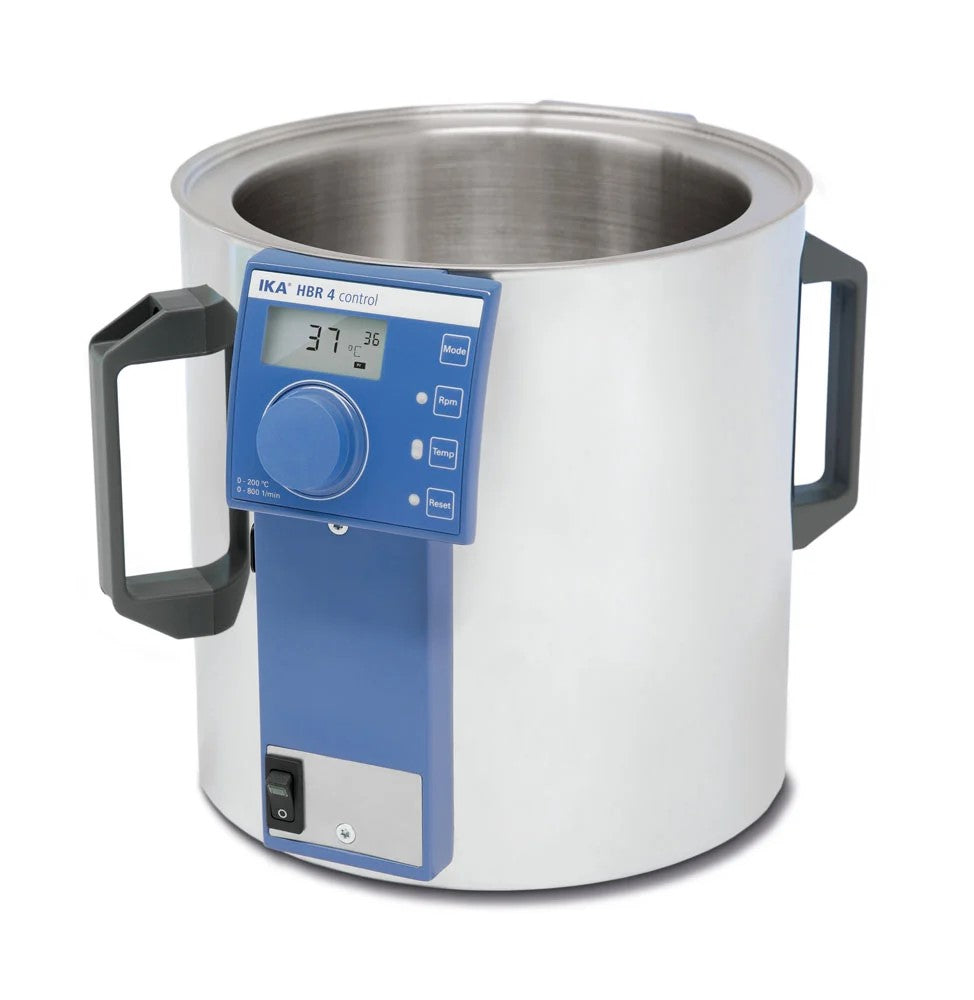

IKA HBR 4 Control Magnetic Stirring Heating Bath
$6,705
| Image | SKU | Description | Filling Volume | Temperature Range | Speed Range | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
|
0020005142 | IKA HBR 4 Control Magnetic Stirring Heating Bath | 4 L | Ambient to 200 °C | 150 to 800 rpm | 115 V, 50/60 Hz | 1 Each | $6,705 |
Description
HBR 4 control
The heating bath is noted for:
- Cylindrical bath shape
- Heating elements integrated into the bath base
- Heat transfer media can be low-viscous oil (50 mPas) or water (H2O)
- Useful volume: approx. 4 L
- Heat output: 1000 W
- Two carry handles
- Infinitely variable safety temperature limiter according to DIN 12877
- Double-jacketed mantle protection against burns
- Digital display for target, actual and safety temperatures as well as speed
- Integrated magnetic stirrer drive to circulate the tempering fluid, allowing for better heat distribution in the bath
- RS 232 interface
- Heating bath can be operated with an external temperature sensor for temperature control directly in the medium
Technical Data
| Heat output | 1000 W |
|---|---|
| Heating temperature range | Room temp. - 200 °C |
| Heat control | Stepless |
| Set temperature resolution | 1 K |
| Controller oscillation (3 l water / 90 °C) | ±1 K |
| Controller oscillation (3 l Silicone oil / 50 mPas / 150 °C) | ±2 K |
| Speed display | LCD |
| Speed adjustment | Stepless |
| Speed range | 150 - 800 rpm |
| Motor rating input | 5 W |
| Motor rating output | 1 W |
| Filling volume max. | 4 l |
| Filling point min. | 20 mm |
| Material in contact with medium | Stainless steel 1.4301 |
| Connection for external temperature sensor | PT1000 |
| Adjustable safety circuit | 50 - 210 °C |
| Class designation acc. DIN 12876 | II |
| Outer diameter | 250 mm |
| Inner diameter | 200 mm |
| Outer height | 250 mm |
| Inner height | 160 mm |
| Dimensions (W x H x D) | 340 x 250 x 340 mm |
| Weight | 5.6 kg |
| Permissible ambient temperature max. | 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | Yes |
| Voltage | 115 V |
| Frequency | 50/60 Hz |
| Power input | 1020 W |
Documentation
| Manual HBR 4 control/digital |
