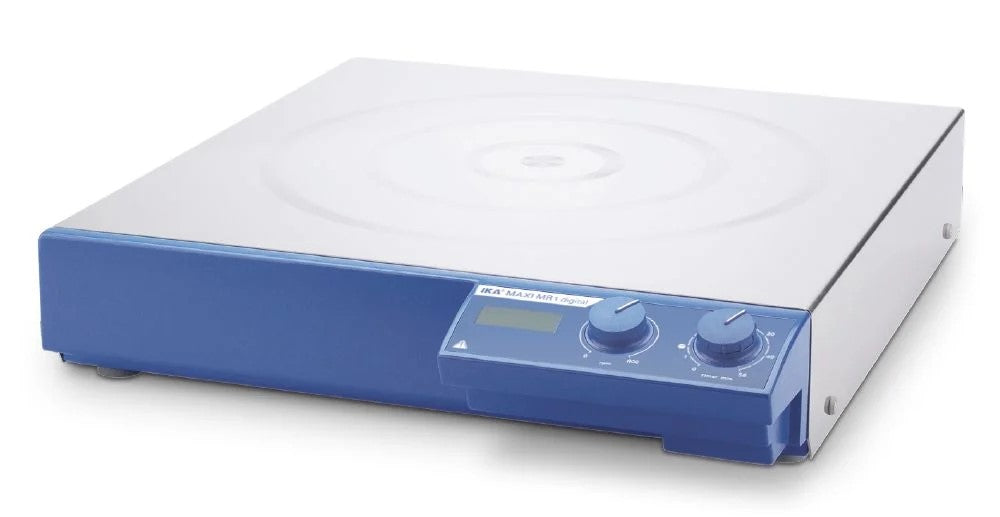

IKA Maxi MR 1 digital Magnetic Stirrers
| SKU | Description | Plate Dimensions | Speed Range | Plate Material | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
| 0025002981 | Maxi MR 1 digital Magnetic Stirrer | 500 x 500 mm (19.7x19.7 in) | 0 to 600 rpm | stainless steel | 100-120 V, 50/60 Hz | 1 Each | $5,200 |
Description
Maxi MR 1 digital
The Maxi MR 1 digital is a powerful magnetic stirrer without a heating function, designed for high-volume stirring applications in the modern laboratory.
High-capacity stirring performance
The Maxi MR 1 digital is capable of stirring quantities of up to 150 liters (H₂O), making it ideal for large-volume applications where reliable and consistent mixing is essential.
Robust and reliable construction
Built around a flat, sturdy stainless steel casing, the Maxi MR 1 digital is designed for long-term durability in demanding laboratory environments. The non-locking motor ensures smooth, uninterrupted operation across the full speed range.
Precise speed control
Infinitely variable speed adjustment combined with a digital LED speed display gives users precise control and clear, continuous monitoring of stirring parameters throughout the process.
Flexible operation and connectivity
The integrated timer function (0–56 min) or continuous operation mode provides flexibility to suit a wide range of workflows. The integrated USB and RS 232 interfaces enable straightforward connectivity for remote control and data logging.
Scope of delivery
The Maxi MR 1 digital comes complete with everything needed for immediate use. The package contains the following items:
- Maxi MR 1 digital
- IKAFLON® 80 Magnetic stirring bar
- USB A-B Cable
Technical Data
| Number of stirring positions | 1 |
|---|---|
| Stirring quantity max. per stirring position (H₂O) | 150 l |
| Maximum load | 200 kg |
| Motor rating output | 35 W |
| Speed range | 0 – 600 rpm |
| Stirring bar length max. | 155 mm |
| Self-heating of the set-up plate by max. stirring (RT: 22°C / duration: 1h) | +18 K |
| Set-up plate material | Stainless steel 1.4301 |
| Set-up plate dimensions | 500 x 500 mm |
| Timer | Yes |
| Dimensions (W x H x D) | 505 x 110 x 585 mm |
| Weight | 21.36 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | Yes |
| USB interface | USB-B |
| Voltage | 100 – 120 V |
| Frequency | 50/60 Hz |
| Power input | 80 W |
| Fuse | 2x T4A 250V |
