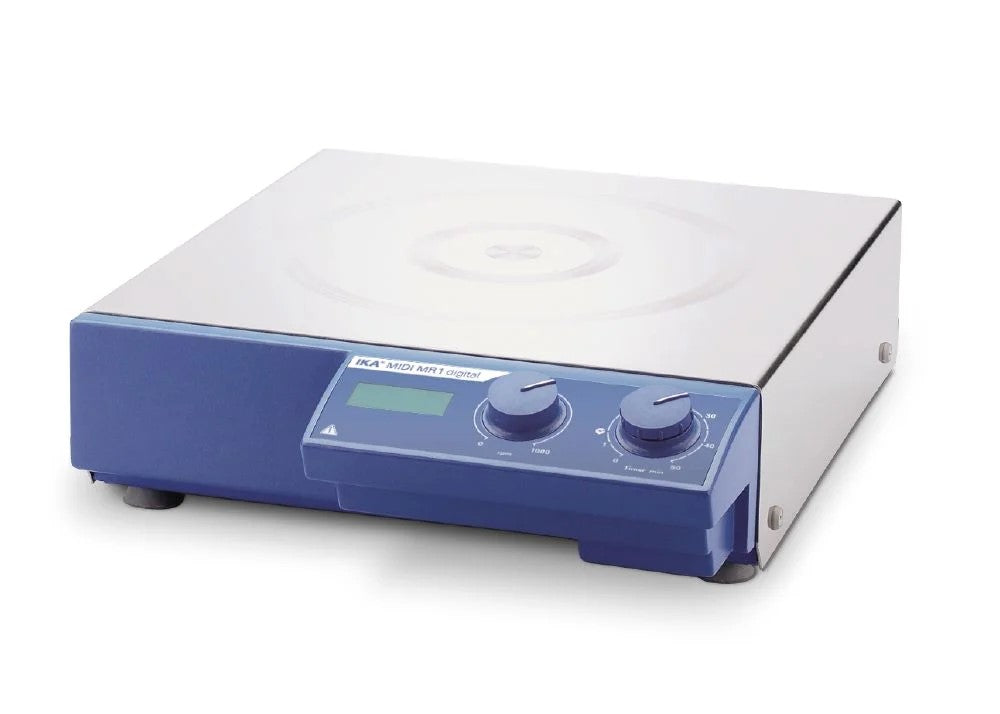

IKA Midi MR 1 digital Magnetic Stirrers
| SKU | Description | Plate Dimensions | Speed Range | Plate Material | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
| 0025002970 | Midi MR 1 digital Magnetic Stirrer | 350 x 350 mm (13.8x13.8 in) | 0 to 1000 rpm | stainless steel | 100-120 V, 50/60 Hz | 1 Each | $4,535 |
Description
Midi MR 1 digital
The Midi MR 1 digital is a powerful magnetic stirrer without a heating function, designed for high-volume stirring applications in the modern laboratory.
High-capacity stirring performance
The Midi MR 1 digital is capable of stirring quantities of up to 50 liters (H₂O), making it well suited to large-volume applications where reliable and consistent mixing is required.
Robust and reliable construction
Built around a flat, sturdy stainless steel casing, the Midi MR 1 digital is designed for long-term durability in demanding laboratory environments. The non-locking motor ensures smooth, uninterrupted operation across the full speed range.
Precise speed control
Infinitely variable speed adjustment combined with a digital LED speed display gives users precise control and clear, continuous monitoring of stirring parameters throughout the process.
Flexible operation and connectivity
The integrated timer function (0–56 min) or continuous operation mode provides flexibility to suit a wide range of workflows. The integrated USB and RS 232 interfaces enable straightforward connectivity for remote control and data logging.
Scope of delivery
The Midi MR 1 digital comes complete with everything needed for immediate use. The package contains the following items:
- Midi MR 1 digital
- IKAFLON® 80 Magnetic stirring bar
- USB A-B Cable
Technical Data
| Number of stirring positions | 1 |
|---|---|
| Stirring quantity max. per stirring position (H₂O) | 50 l |
| Maximum load | 75 kg |
| Motor rating output | 19 W |
| Speed range | 0 – 1000 rpm |
| Stirring bar length max. | 80 mm |
| Self-heating of the set-up plate by max. stirring (RT: 22°C / duration: 1h) | +28 K |
| Set-up plate material | Stainless steel 1.4301 |
| Set-up plate dimensions | 350 x 350 mm |
| Dimensions (W x H x D) | 360 x 110 x 430 mm |
| Weight | 10.7 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | Yes |
| USB interface | USB-B |
| Voltage | 100 – 120 V |
| Frequency | 50/60 Hz |
| Power input | 80 W |
| Fuse | 2x T4A 250V |
