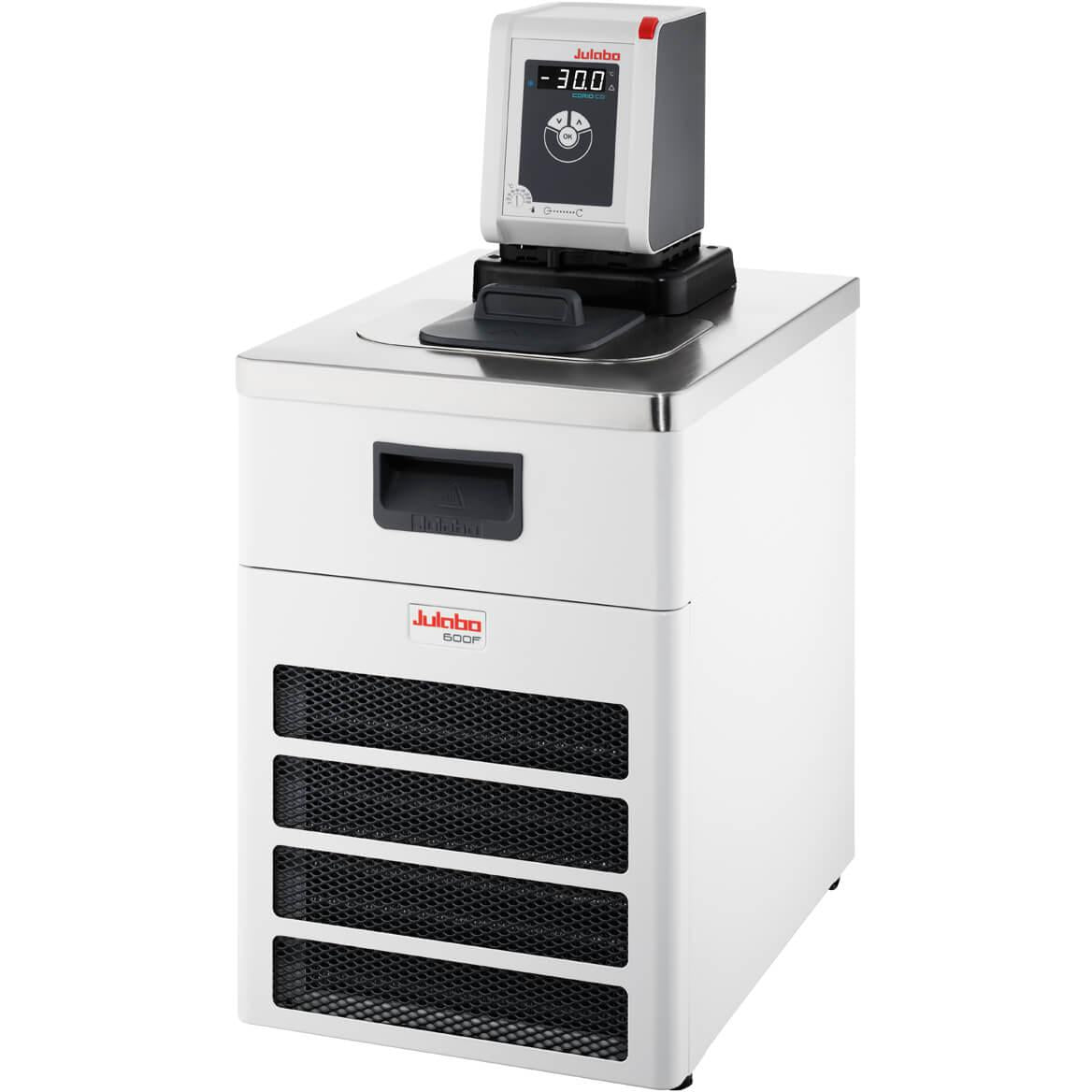

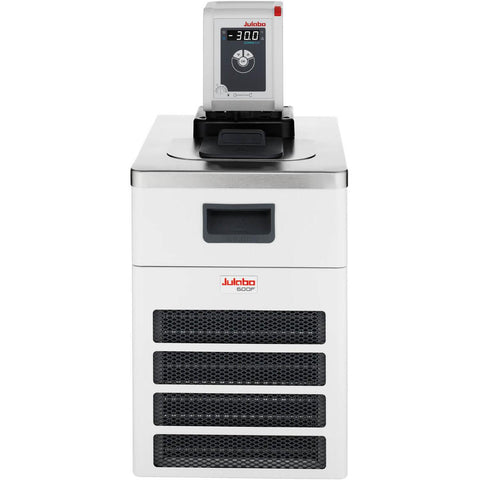

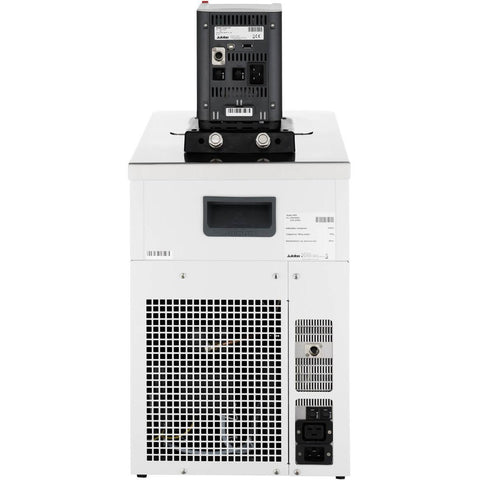

Julabo CORIO™ CD-600F Refrigerated/Heating Circulators, -35 to 150°C

CORIO™ CD refrigerated/heating circulators are suitable for temperature applications with cirulation to an external apparatus or immersing a device in the bath tank. The CORIO™ CD circulator incoporates easy change-over for control of fluid circulation internally or externally. Refrigeration combinations offer a low temperature range from -20 °C to -40 °C with an upper limit of 150 °C. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs.

USB connection for external PC control and data-logging. A space-saving cooling coil design yields more usable space in the bath tank. Bath lid and drain tap included.

PID temperature control provides ±0.03 °C stability. Centrifugal pump capacity of 15 L/min with pressure to 5.1 psi.

Stainless steel bath tank. Class III (FL) according to DIN 12876-1

Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)

Key Benefits

• Models for internal and external applications
• Bright, white, easy to read display
• Very quiet
• Easy pump change-over (internal and external circulation)
• External pump connections (M16x1)
• USB connection
• Space-saving cooling coil design yields more usable space in the bath tank
• Bath lid and drain tap included
• Removable ventilation grid
• Refrigeration unit without side vents
• Class III (FL) according to DIN 12876-1
