FREE SHIPPING
Julabo CORIO™ CP Refrigerated/Heating Circulators, from -50 to 200°C
$6,935
$6,010
and up
| Image | SKU | Description | Filling Volume | Temperature Range | Temperature Stability | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
|
9013701.02 | CORIO CP-200F Refrigerated/Heating Circulator | 3 to 4 L | -20 to 200 °C | ±0.03 °C | 115V / 60Hz | 1 Each |
|
|
|
9013701.33 | CORIO CP-200F Refrigerated/Heating Circulator | 3 to 4 L | -20 to 200 °C | ±0.03 °C | 230V / 50-60Hz | 1 Each |
|
|
|

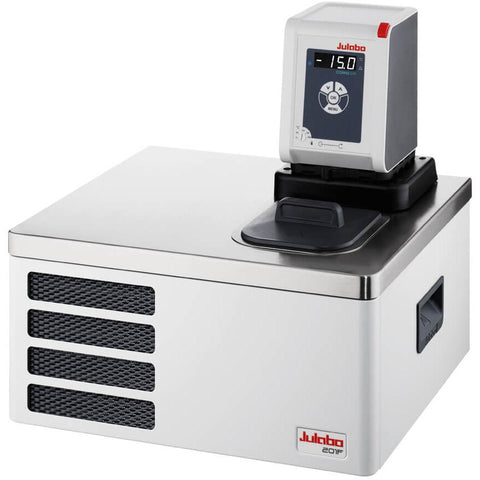

9013702.02 | CORIO CP-201F Refrigerated/Heating Circulator, Low Profile | 3 to 4 L | -20 to 200 °C | ±0.03 °C | 115V / 60Hz | 1 Each |
|
|
|
9013702.33 | CORIO CP-201F Refrigerated/Heating Circulator, Low Profile | 3 to 4 L | -20 to 200 °C | ±0.03 °C | 230V / 50Hz | 1 Each |
|
|
|
9013703.02 | CORIO CP-300F Refrigerated/Heating Circulator | 3 to 4 L | -30 to 200 °C | ±0.03 °C | 115V / 60Hz | 1 Each |
|
|
|
9013704.02 | CORIO CP-600F Refrigerated/Heating Circulator | 5 to 7.5 L | -35 to 200 °C | ±0.03 °C | 115V / 60Hz | 1 Each |
|
|
|
9013704.33 | CORIO CP-600F Refrigerated/Heating Circulator | 5 to 7.5 L | -35 to 200 °C | ±0.03 °C | 230V / 50Hz | 1 Each |
|
|
|
9013705.02 | CORIO CP-601F Refrigerated/Heating Circulator, Low Profile | 8 to 10 L | -35 to 200 °C | ±0.03 °C | 115V / 60Hz | 1 Each |
|
|
|
9013705.33 | CORIO CP-601F Refrigerated/Heating Circulator | 8 to 10 L | -35 to 200 °C | ±0.03 °C | 230V / 50Hz | 1 Each |
|
|
|
9013707.02 | CORIO CP-1000F Refrigerated/Heating Circulator | 5 to 7.5 L | -50 to 200 °C | ±0.03 °C | 115V / 60Hz | 1 Each |
|
|
|
9013707.33 | CORIO CP-1000F Refrigerated/Heating Circulator | 5 to 7.5 L | -50 to 200 °C | ±0.03 °C | 230V / 50Hz | 1 Each |
|
|
|
9013708.33 | CORIO CP-1001F Refrigerated/Heating Circulator | 42 to 56 L | -38 to 100 °C | ±0.03 °C | 230V / 50Hz | 1 Each |
|
Description
Refrigerated Circulators from the CORIO™ CP range are suitable for applications with a temperature range up to +200°C. The enhanced pump performance ensures they are suitable for easy temperature control tasks in combination with external applications.
Your advantages
- Models for internal and external applications
- Bright, white, easy to read display
- Very quiet
- Easy change-over from internal to external circulation and vice versa
- External pump connections (M16x1)
- USB interface
- R232 interface
- Space-saving cooling coil design yields more usable space in the bath tank
- Bath lid and drain tap included
- Removable ventilation grid
- Refrigeration unit without side vents
- System for low liquid level
- Class III (FL) according to DIN 12876-1
Specifications
| Part Number | 9013701 | 9013702 | 9013703 | 9013704 | 9013705 | 9013706 | 9013707 | 9013708 |
|---|---|---|---|---|---|---|---|---|
| Model Series | CORIO | |||||||
| Category | Refrigerated / Heating Circulators | |||||||
| Working Temperature Range | -20 to 200°C | -20 to 200°C | -30 to 200°C | -35 to 200°C | -35 to 200°C | -38 to 200°C | -50 to 200°C | -38 to 100°C |
| Temperature Control | PID | |||||||
| Temperature Stability | ±0.03°C | |||||||
| Setting / Display Resolution | 0.01°C / 0.1°C | |||||||
| Temperature Display | LED | |||||||
| Heating Capacity | 1kW | 2kW | ||||||
| Cooling Capacity (Medium Ethanol) @ 20°C | 0.2 kW | 0.2 kW | 0.3 kW | 0.6 kW | 0.6 kW | 0.9 kW | 1 kW | 1 kW |
| Cooling Capacity (Medium Ethanol) @ 0°C | 0.15 kW | 0.15 kW | 0.27 kW | 0.5 kW | 0.5 kW | 0.8 kW | 0.9 kW | 0.9 kW |
| Cooling Capacity (Medium Ethanol) @ -20°C | 0.02 kW | 0.02 kW | 0.08 kW | 0.19 kW | 0.19 kW | 0.31 kW | 0.5 kW | 0.6 kW |
| Pump Capacity Flow Rate | 8 to 27 l/min | |||||||
| Pump Capacity Flow Pressure | 0.1 to 0.7 psi | |||||||
| Bath Opening / Bath Depth | 13 W x 15 L / 15 D (cm) | 13 W x 15 L / 15 D (cm) | 13 W x 15 L / 15 D (cm) | 22 W x 15 L / 15 D (cm) | 22 W x 15 L / 20 D (cm) | 26 W x 35 L / 20 D (cm) | 22 W x 15 L / 15 D (cm) | 35 W x 41 L / 30 D (cm) |
| Pump Connections | M16x1 | |||||||
| Barbed Fittings Diameter | 8 / 12 mm | |||||||
| Filling Volume | 3 to 4 L | 3 to 4 L | 3 to 4 L | 5 to 7.5 L | 8 to 10 L | 21 to 30 L | 5 to 7.5 L | 42 to 56 L |
| Refrigerant Stage 1 | R134a | R134a | R134a | R404A | R452A | R452A | R452A | R452A |
| Filling Volume Refrigerant Stage 1 | 70 g | 70 g | 100 g | 200 g | 150 g | 220 g | 175 g | 170 g |
| Global Warming Potential | for R134a - 1430 | for R134a - 1430 | for R134a - 1430 | for R404A - 3922 | for R452A - 2140 | for R452A - 2140 | for R452A - 2140 | for R452A - 2140 |
| Carbon Dioxide Equivalent Stage 1 | 0.1 t | 0.1 t | 0.143 t | 0.784 t | 0.321 t | 0.471 t | 0.375 t | 0.364 t |
| Ambient Temperature | 5 to 40°C | |||||||
| Dimensions W x L x H | 23" x 39" x 65" | 44" x 41" x 44" | 24" x 42" x 66" | 33" x 47" x 69" | 36" x 46" x 74" | 39" x 62" x 75" | 42" x 49" x 70" | 45" x 64" x 95" |
| Weight | 57.3 lbs | 55.1 lbs | 61.8 lbs | 78.7 lbs | 62.8 lbs | 114.6 lbs | 113.5 lbs | 162.5 lbs |
| Included with each Unit | 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male) | |||||||
| Bath Tank | Stainless Steel | |||||||
| Bath Cover | Integrated | |||||||
| Cooling of Compressor | Air | |||||||
