JULABO F Series Recirculating Coolers
Image SKU Description Filling Volume Temperature Range Temperature Stability Electrical Quantity Price Add to Cart
products/f250_julabo_73ee67e3-6f00-4c40-9a93-1b9d1f9e5922.jpg

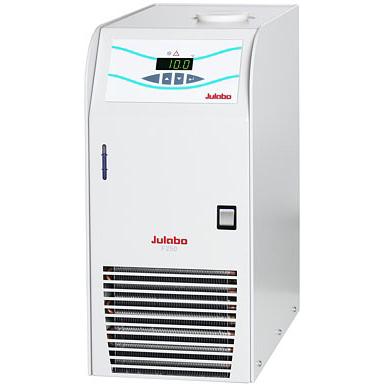

9620025.02 F Series F250 Recirculating Chiller 1.7 to 2.6 L -10 to 40 °C ±0.5 °C 115V / 60Hz 1 Each $4,435
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/f500_julabo_umlaufkuehler_5a28cf30-b8dc-4433-be26-82c78183730a.jpg

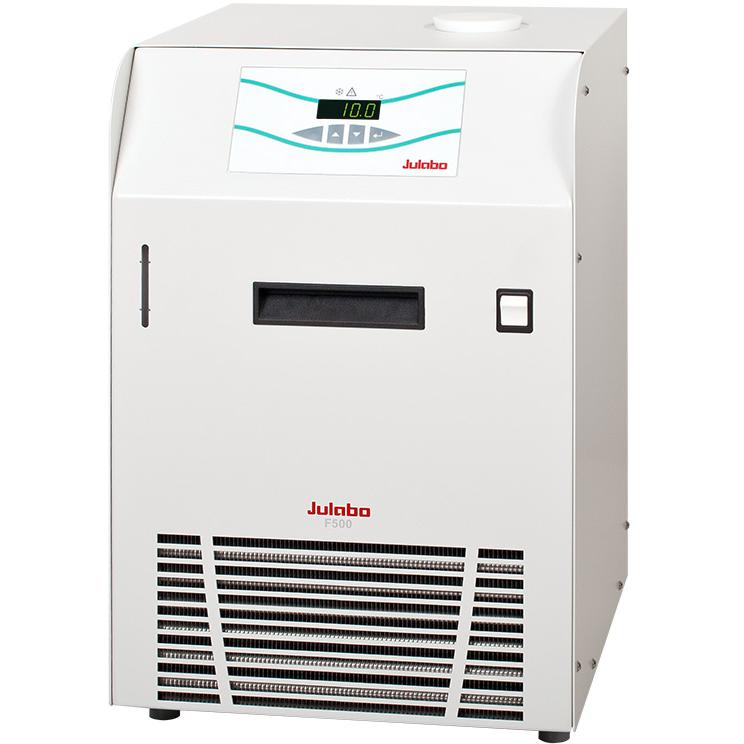

9620050.02 F Series F500 Recirculating Chiller 5 to 7.5 L 0 to 40 °C ±0.5 °C 115V / 60Hz 1 Each $6,388
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/f1000_julabo_umlaufkuehler.jpg
9620100.02 F Series F1000 Recirculating Chiller 7 to 9.5 L 0 to 40 °C ±0.5 °C 115V / 60Hz 1 Each $8,489
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

For simple cooling tasks.

JULABO F Series economy chillers require very little space and high performance cooling at a value. Recirculating coolers of the F Series are a great way to replace costly tap water and are ideal for basic cooling tasks.

Your advantages

  • Environmentally-friendly operation with low energy consumption
  • Compact design
  • Splash-proof membrane keypad with LED temperature display
  • Straightforward filling and draining
  • Filling level indicator
  • May be used with water, water/glycol, JULABO Thermal G

Specifications

Part # 9620025.02 9620050.02 9620100.02
Model series F Series F Series F Series
Category Recirculating Coolers Recirculating Coolers Recirculating Coolers
Working temperature range (°C) -10 ... +40 0 ... +40 0 ... +40
Temperature stability (°C) +/-0.5 +/-0.5 +/-0.5
Temperature control PID temperature control PID temperature control PID temperature control
Setting / display resolution 0.1 °C 0.1 °C 0.1 °C
Temperature Display LED LED LED
Cooling capacity (Medium Ethanol) @ 20°C 0.25 kW 0.5 kW 1 kW
Cooling capacity (Medium Ethanol) @ 10°C 0.22 kW 0.4 kW 0.7 kW
Cooling capacity (Medium Ethanol) @ 5°C 0.21 kW 0.3 kW 0.55 kW
Cooling capacity (Medium Ethanol) @ 0°C 0.18 kW 0.25 kW 0.35 kW
Pump capacity flow rate (l/min) 15 24 23
Pump capacity flow pressure (psi) 5.08 7.25 14.5
Pump connections M10x1 M16x1 M16x1
Barbed fittings diameter (inner dia. / mm) 8 / 10 8 / 12 8 / 12
Filling volume (liters) 1.7 ... 2.6 5 ... 7.5 7 ... 9.5
Ambient temperature 5...40 °C 5...40 °C 5...40 °C
Dimensions W x L x H (inch) 9.5 x 16 x 21 14.8 x 17.3 x 23.2 14.8 x 19.3 x 25.2
Weight (LBS) 60 75 99
Sound pressure level (distance 1 m) max. (dBA) 59 62 62
Included with each unit 2 each barbed fittings for tubing 8 and 10 mm inner dia. (pump connections M10x1 male) 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male) 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
Cooling of compressor Air Air Air
Power requirement V / Hz / A 115/60/5 115/60/6 115/60/11

Documentation

Part # Link to Product Data Sheet
9620025.02 Link to Product Data Sheet
9620050.02 Link to Product Data Sheet
9620100.02 Link to Product Data Sheet
