Julabo FL Series Recirculating Chillers

  • Free Shipping

from $5,296.00 $4,967.00

SKU DESCRIPTION FILLING VOLUME TEMPERATURE RANGE TEMPERATURE STABILITY ELECTRICAL QUANTITY PRICE ADD TO CART

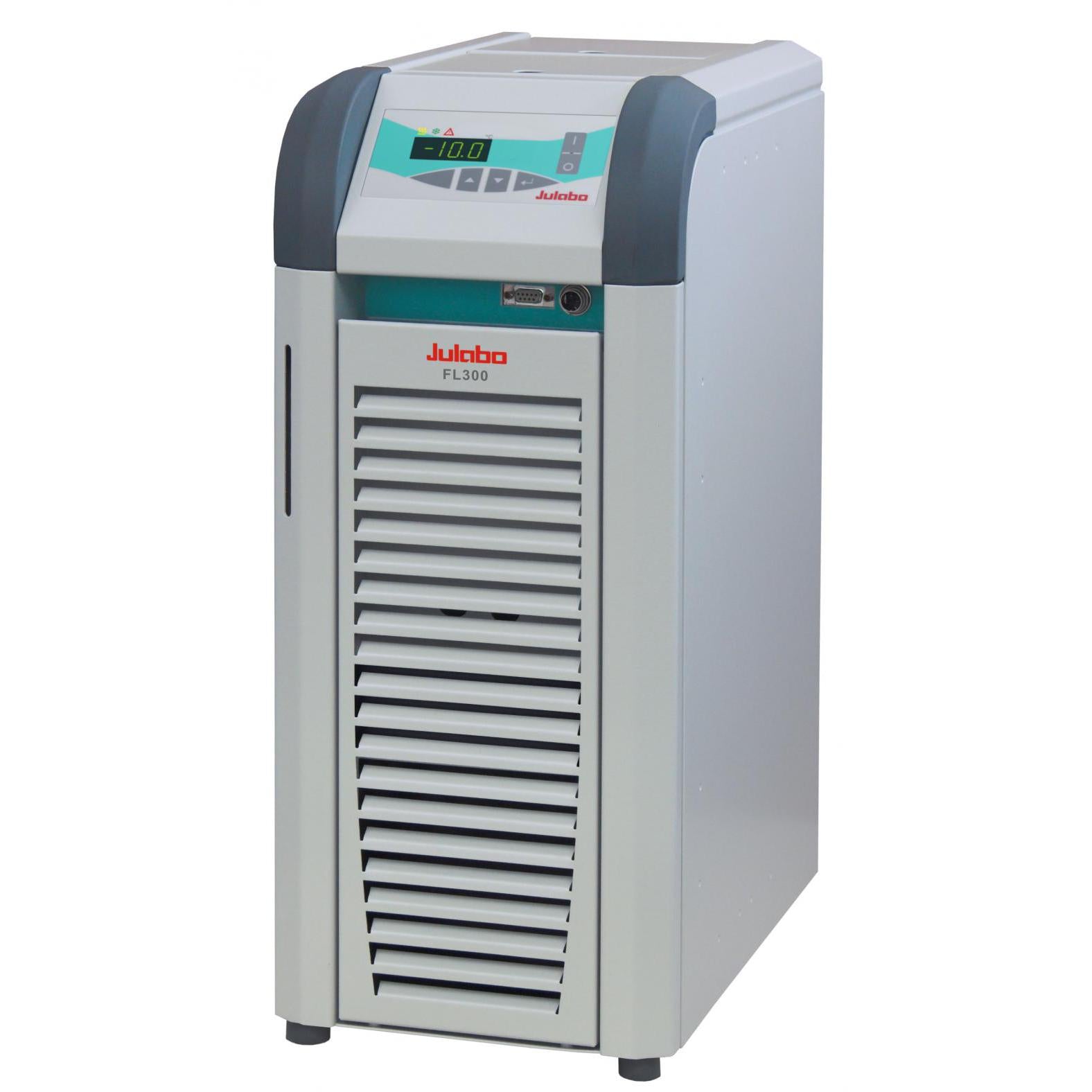

variant 9660003.2 FL Series FL300 Recirculating Cooler 3 to 4.5 L -20 to 40°C +/-0.5°C 115V/60Hz 1 Each
$5,296
$4,967
variant 9661006.2 FL Series FL601 Recirculating Cooler 5.5 to 8 L -20 to 40°C +/-0.5°C 115V/60Hz 1 Each
$7,366
$6,821
variant 9661012.2 FL Series FL1201 Recirculating Cooler 12 to 17 L -20 to 40°C +/-0.5°C 115V/60Hz/14A 1 Each
$8,186
variant 9661017.2 FL Series FL1701 Recirculating Cooler 12 to 17 L -20 to 40°C +/-0.5°C 115V/60Hz/15A 1 Each
$8,699
variant 9663012.13 FL Series FL1203 Recirculating Cooler 12 to 17 L -20 to 40°C +/-0.5°C 230V/60Hz/11A 1 Each
$9,309
$9,272
variant 9663017.13 FL Series FL1703 Recirculating Cooler 12 to 17 L -20 to 40°C +/-0.5°C 230V/60Hz/11A 1 Each
$9,829
$9,731
variant 9663025.13 FL Series FL2503 Recirculating Cooler 24 to 30 L -20 to 40°C +/-0.5°C 230V/60Hz/13A 1 Each
$12,267
$11,882
variant 9663040.16 FL Series FL4003 Recirculating Cooler 24 to 30 L -20 to 40°C +/-0.5°C 230V/3PPE/60Hz/11A - unit ships bare wire 1 Each
$14,302
$13,678
variant 9666025.13 FL Series FL2506 Recirculating Cooler 24 to 30 L -15 to 40°C +/-0.5°C 230V/60Hz/16A 1 Each
$13,614
$13,071
variant 9666040.16 FL Series FL4006 Recirculating Cooler 24 to 30 L -20 to 40°C +/-0.5°C 230V/3PPE/60Hz/16A 1 Each
$16,095
$15,260
variant 9666070.16 FL Series FL7006 Recirculating Cooler 39 to 47 L -20 to 40°C +/-0.5°C 230V/3PPE/60Hz/23A -unit ships bare wire 1 Each
$20,832
$19,440
variant 9666110.16 FL Series FL11006 Recirculating Cooler 39 to 47 L -20 to 40°C +/-0.5°C 230V/3PPE/60Hz/27A -unit ships bare wire 1 Each
$23,011
$21,680
variant 9666200.16 FL Series FL20006 Recirculating Cooler 15 to 37 L -25 to 40°C +/-0.5°C 230V/3PPE/60Hz/36A -unit ships bare wire 1 Each
$35,167
$32,563

Recirculating Cooler/Chiller for environmentally friendly cooling.

The FL series offers a new generation of chillers for routine cooling applications within the laboratory and industry. The temperature stability of the PID control is +/-0.5°C. All units can easily be cleaned and are provided with a splash water proof keypad with LED temperature indication. On the front of the units there is an RS232 interface as well as an alarm shutdown. The filling port is easily accessible placed on the top under a lift-up cover. Another hinged tray serves as a file for the operating manual or other documents concerning the installation. The removable venting grid allows an easy cleaning of the condenser, the drain tap is easily accessible behind the grid. All models include an easily visible level indication. Another advantage is the venting slots are on the front and rear and therefore the units can be placed directly one beside the other (space saving).

Your advantages

  • Ergonomic design and easy operation
  • Splash-proof keypad with integrated mains switch
  • Large, bright LED display
  • Reliable Microprocessor PID temperature control
  • Filling level indicator
  • Powerful immersion pumps, suitable for continuous operation
  • Permissible temperature in return line +80°C
  • Easy filling from the top with hinged protective lid
  • Low liquid level protection with optical and audible alarm signal
  • Integrated stainless steel bath tanks
  • Removable venting grid for cleaning of the condenser
  • Front drain
  • No side vents
  • RS232 interface for PC-connection
  • IP class according to IEC 60529: 21
  • Alarm output, potential-free change-over contact (max. 30 VA)

Specifications

Part # 9660003 9661006 9661012 9663012 9661017 9663017 9663025 9666025 9663040 9666040 9666070 9666110 9666200
Model series FL Series FL Series FL Series FL Series FL Series FL Series FL Series FL Series FL Series FL Series FL Series FL Series FL Series
Category Recirculating Coolers Recirculating Coolers Recirculating Coolers Recirculating Coolers Recirculating Coolers Recirculating Coolers Recirculating Coolers Recirculating Coolers Recirculating Coolers Recirculating Coolers Recirculating Coolers Recirculating Coolers Recirculating Coolers
Working temperature range (°C) -20 ... +40 -20 ... +40 -20 ... +40 -20 ... +40 -20 ... +40 -20 ... +40 -20 ... +40 -15 ... +40 -20 ... +40 -20 ... +40 -20 ... +40 -20 ... +40 -25 ... +40
Temperature stability (°C) +/-0.5 +/-0.5 +/-0.5 +/-0.5 +/-0.5 +/-0.5 +/-0.5 +/-0.5 +/-0.5 +/-0.5 +/-0.5 +/-0.5 +/-0.5
Setting / display resolution 0.1 °C 0.1 °C 0.1 °C 0.1 °C 0.1 °C 0.1 °C 0.1 °C 0.1 °C 0.1 °C 0.1 °C 0.1 °C 0.1 °C 0.1 °C
Temperature Display LED LED LED LED LED LED LED LED LED LED LED LED LED
Cooling capacity (Medium Ethanol) @ 20°C 0.3 kW 0.6 kW 1.2 kW 1.2 kW 1.7 kW 1.7 kW 2.5 kW 2.5 kW 4 kW 4 kW 7 kW 11 kW 20 kW
Cooling capacity (Medium Ethanol) @ 0°C 0.2 kW 0.4 kW 0.9 kW 0.8 kW 1.1 kW 1 kW 1.5 kW 1 kW 2.4 kW 1.9 kW 5.1 kW 7.5 kW 10 kW
Cooling capacity (Medium Ethanol) @ -10°C 0.15 kW 0.33 kW 0.6 kW 0.5 kW 0.85 kW 0.75 kW 1.2 kW 0.3 kW 1.5 kW 0.9 kW 3 kW 5 kW 6 kW
Cooling capacity (Medium Ethanol) @ -20°C 0.1 kW 0.2 kW 0.3 kW 0.2 kW 0.4 kW 0.3 kW 0.55 kW --- 0.65 kW 0.05 kW 1.55 kW 3 kW 2.5 kW
Pump capacity flow rate (l/min) 15 23 23 40 23 40 40 60 40 60 60 60 80
Pump capacity flow pressure (psi) 5.08 14.5 14.5 7.25...43.51 14.5 7.25...43.51 7.25...43.51 7.25...87.02 7.25...43.51 7.25...87.02 7.25...87.02 7.25...87.02 11.6...87.02
Pump connections M16x1 M16x1 M16x1 G3/4" M16x1 G3/4" G3/4" G1 1/4" G3/4" G1 1/4" G1 1/4" G1 1/4" G1 1/4"
Barbed fittings diameter (inner dia. / mm) 8 / 12 8 / 12 8 / 12 3/4" 8 / 12 3/4" 3/4" 1" 3/4" 1" 1" 1" 1"
Filling volume (liters) 3 ... 4.5 5.5 ... 8 12 ... 17 12 ... 17 12 ... 17 12 ... 17 24 ... 30 24 ... 30 24 ... 30 24 ... 30 39 ... 47 39 ... 47 15 ... 37
Digital interfaces RS232 RS232 RS232 RS232 RS232 RS232 RS232 RS232 RS232 RS232 RS232 RS232 RS232
Ambient temperature 5...40 °C 5...40 °C 5...40 °C 5...40 °C 5...40 °C 5...40 °C 5...40 °C 5...40 °C 5...40 °C 5...40 °C 5...40 °C 5...40 °C 5...40 °C
Dimensions W x L x H (inch) 9.8 x 19.7 x 23.6 12.6 x 19.7 x 23.6 19.7 x 29.9 x 25.2 19.7 x 29.9 x 25.2 19.7 x 29.9 x 25.2 19.7 x 29.9 x 25.2 23.6 x 29.9 x 45.3 23.6 x 29.9 x 45.3 23.6 x 29.9 x 45.3 23.6 x 29.9 x 45.3 30.7 x 33.5 x 58.3 30.7 x 33.5 x 58.3 37.4 x 45.3 x 63.4
Weight (LBS) 86 106 168 161 187 201 271 287 271 346 556 547 794
Description Suitable fluids: water, water-glycol mixture, JULABO Thermal bath fluids Suitable fluids: water, water-glycol mixture, JULABO Thermal bath fluids Suitable fluids: water, water-glycol mixture, JULABO Thermal bath fluids Suitable fluids: water, water-glycol mixture, JULABO Thermal bath fluids Suitable fluids: water, water-glycol mixture, JULABO Thermal bath fluids Suitable fluids: water, water-glycol mixture, JULABO Thermal bath fluids Suitable fluids: water, water-glycol mixture, JULABO Thermal bath fluids Suitable fluids: water, water-glycol mixture, JULABO Thermal bath fluids. Suitable fluids: water, water-glycol mixture, JULABO Thermal bath fluids Suitable fluids: water, water-glycol mixture, JULABO Thermal bath fluids Suitable fluids: water, water-glycol mixture, JULABO Thermal bath fluids Suitable fluids: water, water-glycol mixture, JULABO Thermal bath fluids. Suitable fluids: water, water-glycol mixture, JULABO Thermal bath fluids
Included with each unit 2 barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male) se mit M16x1 Außengewinde) 2 barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)sse mit M16x1 Außengewinde) 2 barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male) 2 barbed fittings for tubing 3/4" inner dia. (pump connections G3/4" male) 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male) 2 barbed fittings for tubing 3/4" inner dia. (pump connections G3/4" male) 2 barbed fittings for tubing 3/4" inner dia. (pump connections G3/4" male) /4" Außengewinde) 2 each barbed fittings for tubing 1" inner dia (pumpconnections G1 1/4" male) 2 barbed fittings for tubing 3/4" inner dia. (pump connections G3/4" male) 2 barbed fittings for tubing 1" inner dia. (pump connections G1 1/4" male) 2 barbed fittings for tubing 1" inner dia. (pump connections G1 1/4" male) 2 barbed fittings for tubing1" l.W. (pump connections with G1 1/4" male) 2 barbed fittings for tubing 1" inner dia. (pump connections G1 1/4" male) Außengewinde)
Cooling of compressor Air Air Air Air Air Air Air Air Air Air Air Air Air
Power requirement V / Hz / A 115/60/6 115/60/10 115/60/14 230/60/11 115/60/15 230/60/11 230/60/13 230/60/16 3x 230/60/11 3x 230/60/16 3x 230/60/23 3x 230/60/27 3x 230/60/36
