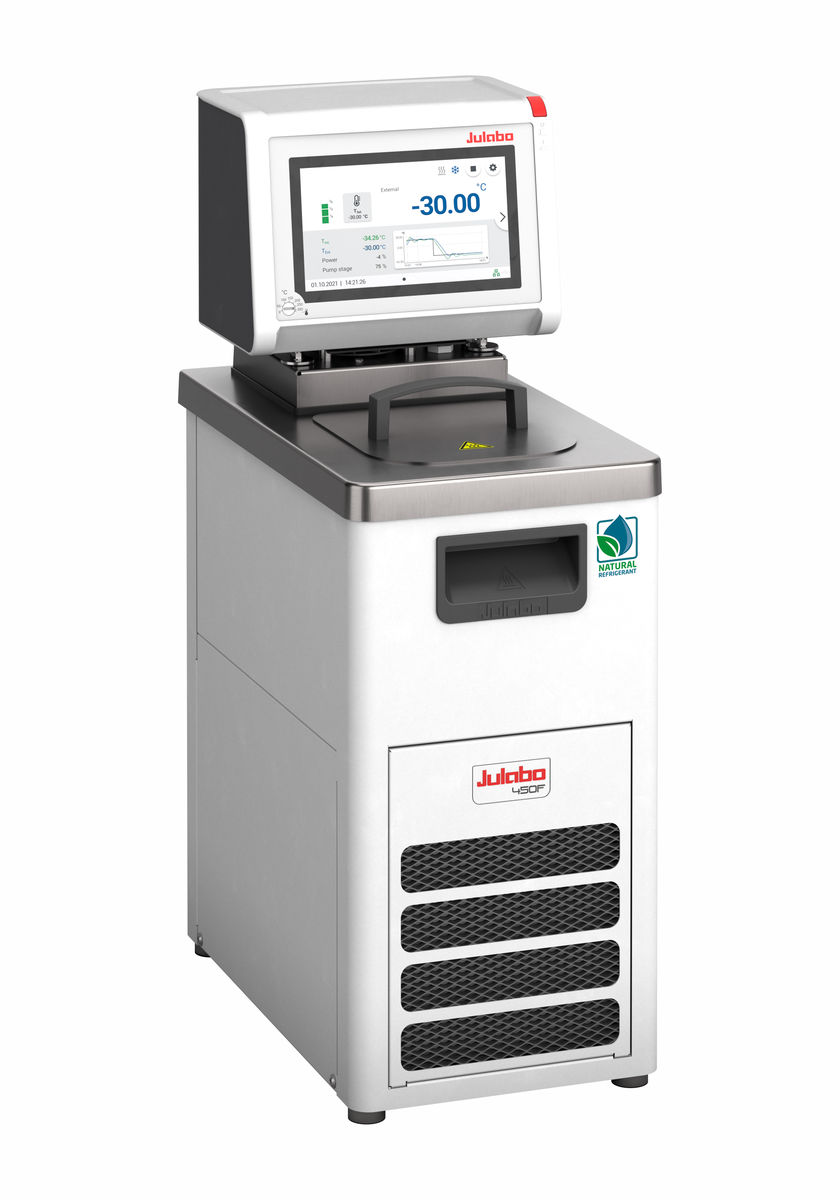

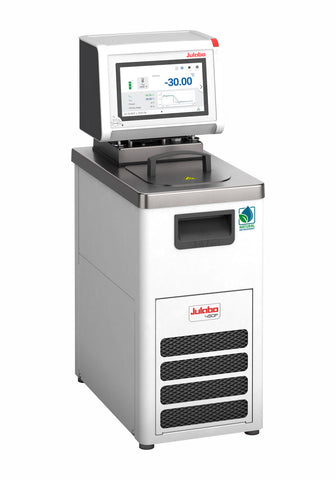

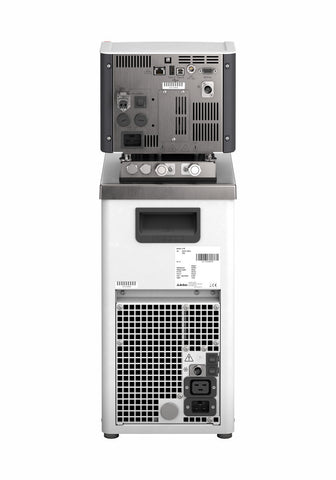

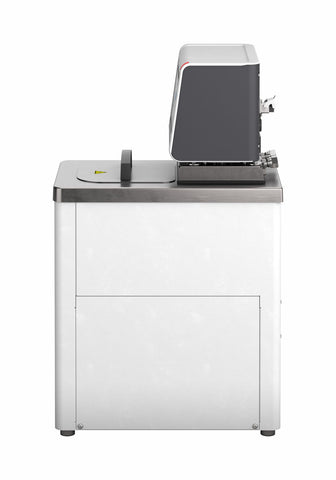

Julabo MAGIO™ MS-450F Refrigerated/Heating Circulators, -30 to 200°C
| SKU | Description | Filling Volume | Temperature Range | Refrigerant | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
| 9032714.N1.02 | MAGIO MS-450F Refrigerated/Heating Circulator | 3 to 4 L | -30 to 200 °C | R290 (natural refrigerant) | 115V/60Hz | 1 Each |
|
|
| 9032714.N1.33 | MAGIO MS-450F Refrigerated/Heating Circulator | 3 to 4 L | -30 to 200 °C | R290 (natural refrigerant) | 200-230V/50-60Hz | 1 Each |
|
Description
MAGIO™ MS-450F refrigerated/heating circulator with an operating range of -30…+200°C with ±0.01 °C stability; cooling power 460W at 20 °C and 70W at -30 °C. Suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. The MAGIO™ MS circulator incorporates easy operation via a large color TFT touchscreen. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. A multi-lingual interface, integrated programmer, Pt100 port for external temperature control, RS232/RS485, USB and Ethernet connections for external PC control and data-logging. Modbus TCP/IP incorporated. Stakei port for external accessory control (solenoid valve, etc.). Analog module accessory available (9900100). Infinitely variable centrifugal pressure/suction pump capacity of 16-31 L/min with pressure to 3.4-13.3 psi. 3-4L stainless steel bath tank with integrated drain port. Options for heating power (1kW or 2kW) and refrigerant (R290 natural refrigerant or R449A synthetic refrigerant).
Class III (FL) according to DIN 12876-1.
Included with each unit: 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male).
Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male) | G 3/4" female to 1/2" hose barbs for water cooling circuit
Key Benefits
- TFT Color Touchscreen
- Multilingual
- Input for setpoints, warning/safety values and menu functions
- ICC (Intelligent Cascade Control), self-optimizing temperature control
- ATC3 3-Point-Calibration
- Pt100 External sensor connection for measurement and control
- Continuously variable pressure/suction pump
- Early warning system for low liquid level (DBGM 203 06 059.8)
- Adjustable high temperature cut-out, visible via display
- RS232/RS485, USB and Ethernet interface for online communication
- Integrated programmer
- Built-in drain tap
- Class III (FL) according to DIN 12876-1
Specifications
| Model | MS-450F | MS-450F |
|---|---|---|
| SKU | 9032714.N1.02 | 9032714.N1.33 |
| Working Temp Range | -30 to 200°C | -30 to 200°C |
| Heating Capacity | 1kW | 2kW |
| Cooling Capacity | 0.07kW @ -30°C; 0.17kW @ -20°C; 0.29kW @ -10°C; 0.39kW @ 0°C; 0.46kW @ 20°C | 0.07kW @ -30°C; 0.17kW @ -20°C; 0.29kW @ -10°C; 0.39kW @ 0°C; 0.46kW @ 20°C |
| Voltage Version | 115V/60Hz | 200-230V/50-60Hz |
| Power A | 12A | 14A |
| Pump Connection | M16x1 male | M16x1 male |
| PCF Pressure | 3.5 to 13.3 psi | 3.5 to 13.3 psi |
| PCF Rate | 16 to 31 L/min | 16 to 31 L/min |
| Bath Fill Volume | 3 to 4 L | 3 to 4 L |
| External Devices | Pt100|Remote Control | Pt100|Remote Control |
| Fluid Type | water, water/glycol | water, water/glycol |
| Heating & Cooling | Both | Both |
| Dimensions W x L x H | 9.1 x 15.7 x 25.6 in. | 9.1 x 15.7 x 25.6 in. |
| Weight | 64 lbs | 64 lbs |
| Refrigerant | R290 | R290 |
Documentation
| Product Data Sheets |
|---|
| MAGIO MS-450F Data Sheet |
| MAGIO MS User Manual |
